PAT Kit Blades

Art. No.: 12599

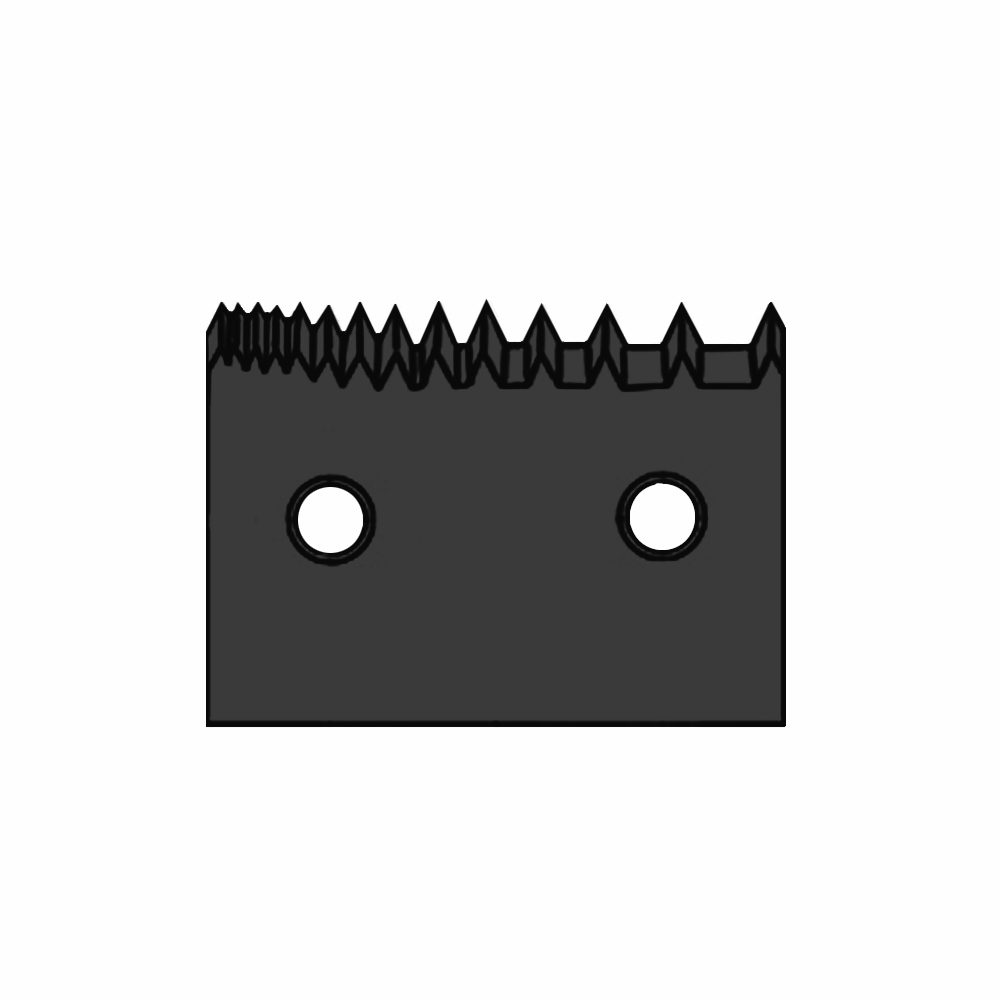

Variable Spaced Blade, 14 Teeth

Variable Spaced Cutter Blade
14 teeth
Due to the accuracy of the spacings and the speed with which the test can be conducted, it is the preferred tool for use in this test except when evaluations must be made on coatings applied to surfaces which are neither flat or relatively smooth. Under these adverse conditions a single razor blade type cutter is often desirable under method A of ASTM.

Handle Not Included - See Paint Adhesion Test (P.A.T.) Kit Page

Select your Model

Adhesion Testers

$121.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Multiple Tip Blade Cutters for the Paint Adhesion Test Kit are specially designed to provide optimum results
Produced to very close tolerances and with a black oxide coating (bluing) prevents rusting
Handle mounting holes do not go all the way through the cutter, which prevents the cutter from being improperly secured in the handle as the holes must face the securing set screws
An additional last step in the production process provides essentially zero tolerance on blade length. The blade cutters are first produced to ensure a normal cut, which is then followed by a fine lateral honing which slightly modifies the teeth. There are Several Advantages:
- The teeth are stronger and less subject to damage, increasing the cutter life
- There is a cleaner edge cut where the coating interfaces with the supporting base
- The tolerance on tip length is greatly improved permitting lower pressure to be used on the cutter and avoiding gouging of the supporting base with a long tip
As general guide for flat surface blades:
- Coatings with dry film thickness up to and including 2.0 mils (50 µm) space the cuts 1 mm apart and make eleven cuts (12603) unless otherwise agreed upon
- Coatings with dry film thickness between 2.0 mils (50 µm) and 5 mils (125 µm), space the cuts 2 mm apart and make six cuts (12610) unless otherwise agreed upon
- Coatings with thickness greater than 5 mils (125 µm) space the cuts 5.0 mm apart and make 5 cuts (12633) unless otherwise agreed upon
Radius Cutter Blades (14409 and 14410) - The uniform 1 mm six tooth cutter is now available for use on curved surfaces where the radius of curvature is no less than 0.75 inches. This special cutter for materials applied to simple curved surfaces is produced from a modified standard multi-tooth cutter. The rake angle (the angle of the tooth tip to the back of the cutter) is accurately known. Therefore, by removing a portion of the front surface of the cutter, the tooth is shortened by a known amount. Since the shortening of the tooth is proportional to the thickness of cutter removed, the cutter may be produced to work on any given radius of curvature above a practical limit of 0.75 inches. The cutter for curved surfaces is mounted in the same size and style of hand as all other GARDCO multi-tooth adhesion cutters.

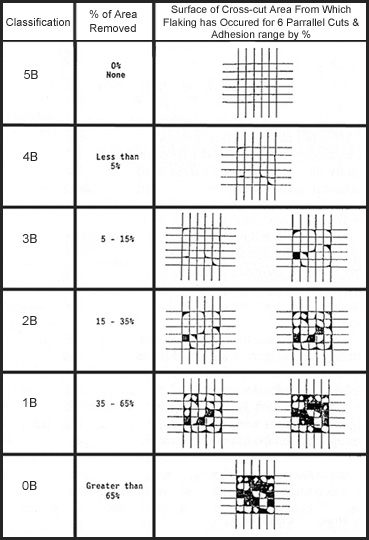

Technical Data Chart

Data

Paint Adhesion Kit Cutter Blades
Part No.	Certified Part No.	Description	Teeth	Spacing	Cross Hatch Segment Area Square
12599	15512	Variable Spaced	14	See Variable Spaced Page	---
12634	15509	API RP 5L2 Blade	16	1.6mm	---
12632	15510	Coarse Blade	4	2.4mm	---
12608	12609	Coarse Blade	11	2mm	4.00mm
12610	12611	Coarse Blade	6	2mm	4.00mm
12603	15505	Fine Blade	11	1mm	1.00mm
12600	12601	Fine Blade	6	1mm	1.00mm
12605	12606	Medium Blade	11	1.5mm	2.25mm
12633	15511	Thick Coatings Blade	5	5mm	---
12612	12613	Very Coarse Blade	6	3mm	9.00mm
14409	---	Pipe Radius Blade	---	.75" Outer Diameter	---
14410	---	Pipe Radius Blade	---	1.98" Outer Diameter	---

As general guide for coatings having a dry film thickness up to and including 2.0 mils (50 µm) space the cuts 1 mm apart and make eleven cuts (12603) unless otherwise agreed upon. For coatings having a dry film thickness between 2.0 mils (50 µm) and 5 mils (125 µm), space the cuts 2 mm apart and make six cuts (12610) unless otherwise agreed upon. For coatings having a thickness greater than 5 mils (125 µm) space the cuts 5.0 mm apart and make 5 cuts (12633) unless otherwise agreed upon.

Variable Spaced Blade (12599)
The following table shows the segment area in square mm for each of the segments in the variable spaced multi-tooth crosshatch pattern. The variable spaced multiple tooth cutter has 14 teeth providing 13 spaces between the teeth ranging from 0.46 mm to 2.58 mm. This spacing provides segment areas ranging from 0.21 square mm to 6.66 square mm.
Tooth Spacing in mm	0.46	0.53	0.61	0.71	0.82	0.94	1.09	1.26	1.45	1.68	1.94	2.24	2.58
Segment Area in Sq. mm	1.19	1.37	1.57	1.83	2.12	2.43	2.81	3.25	3.74	4.34	5.01	5.78	6.66
	1.03	1.18	1.36	1.59	1.83	2.10	2.44	2.82	3.24	3.75	4.34	5.01	5.77
	0.89	1.03	1.18	1.37	1.59	1.82	2.11	2.44	2.81	3.25	3.75	4.33	4.99
	0.77	0.89	1.02	1.19	1.37	1.58	1.83	2.11	2.43	2.82	3.25	3.75	4.32
	0.67	0.77	0.89	1.03	1.19	1.36	1.58	1.83	2.11	2.44	2.82	3.25	3.75
	0.58	0.67	0.77	0.89	1.03	1.18	1.37	1.58	1.82	2.11	2.44	2.82	3.24
	0.50	0.58	0.66	0.77	0.89	1.02	1.19	1.37	1.58	1.83	2.11	2.44	2.81
	0.43	0.50	0.58	0.67	0.77	0.89	1.03	1.19	1.37	1.58	1.83	2.11	2.43
	0.38	0.43	0.50	0.58	0.67	0.77	0.89	1.03	1.18	1.37	1.58	1.83	2.11
	0.33	0.37	0.43	0.50	0.58	0.66	0.77	0.89	1.03	1.19	1.37	1.58	1.82
	0.29	0.33	0.38	0.44	0.51	0.58	0.68	0.78	0.90	1.04	1.20	1.39	1.60
	0.23	0.27	0.31	0.36	0.41	0.47	0.55	0.63	0.73	0.85	0.98	1.13	1.30
	0.21	0.24	0.28	0.33	0.38	0.43	0.50	0.58	0.67	0.77	0.89	1.03	1.18
