Taber Abrading Wheels

Article No. 10099

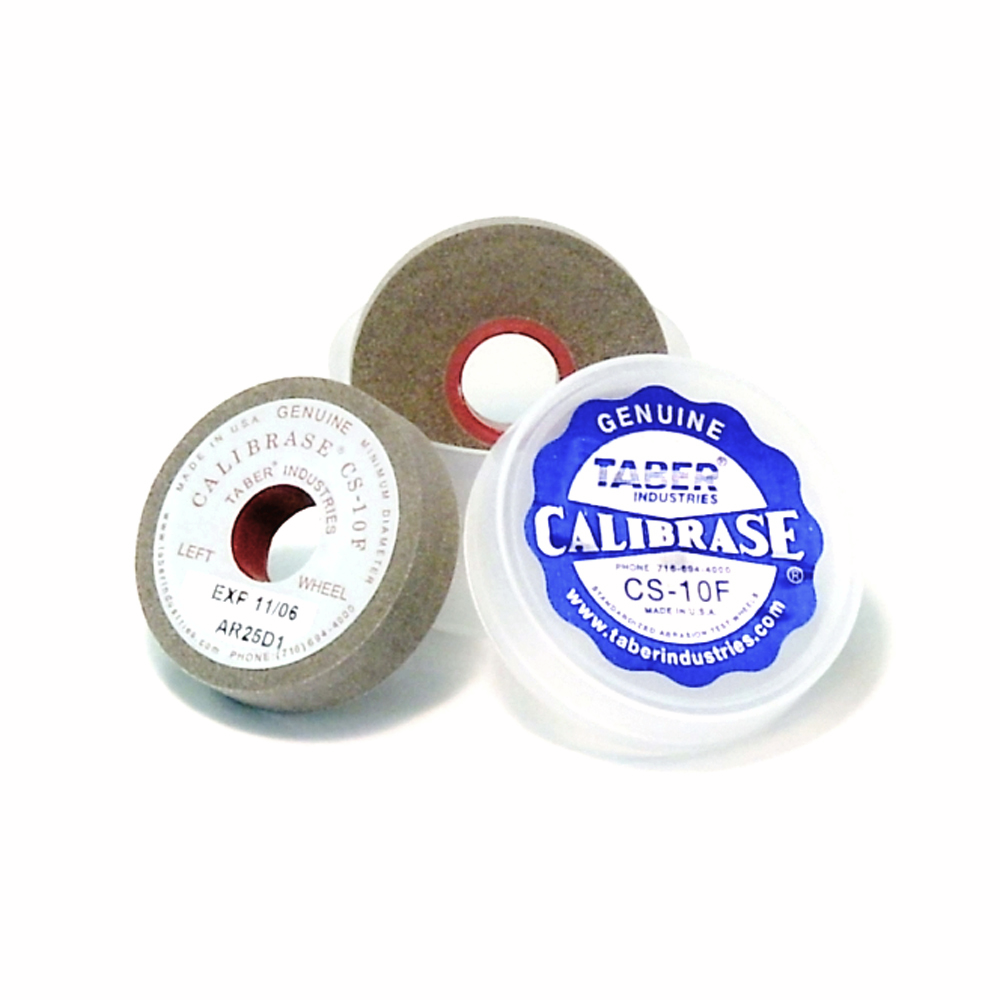

Taber CS-10F Calibrase Wheels

The Taber Abrading Wheels are used with the Taber Rotary Platform Abraser, two abrasive wheels create the circular wear path recognized as a "Taber test." As specimens are subjected to the rub-wear action of the wheels, the abrasion marks form a pattern of crossed arcs resulting in a circular ring. This process abrades the sample over all angles of grain or weave, and covers an area approximately 30 cm².

Select your model

excl. taxes & shipping cost

Features

Offered in a range of wear characteristics
Calibrase wheels include easy-glide wheel hub
Sold in pairs
Shipped in tight-lidded containers to prevent damage
Rigorous quality program maintains uniformity and consistency
Premium grade US abrasive materials ensure test repeatability
Traceable through manufacturing lot reference included on each wheel label
Manufactured from a proprietary formulation developed and designed by Taber Industries so the binder material breaks down during use, exposing and creating a fresh abrading surface
Taber offers standardized grades of Genuine Taber abrasive wheels, which have been engineered to meet varying requirements of abrasive action. The choice of abrading wheels should be based upon the wear the specimen material will be subjected to in actual use.
Custom formulations available
Three Types Available:
- Calibrase® Abrading Wheels - A resilient wheel composed of resilient binder and aluminum oxide or silicon carbide abrasive particles. Frequently used to evaluate rigid specimens.
- Calibrade® Abrading Wheels - A non-resilient wheel composed of a vitrified (clay) binder and silicon carbide or aluminum oxide abrasive particles. Frequently used to evaluate flexible specimens.
- Specialty Wheels and Abradants - Used for unique or custom applications.

Technical Attributes

Data

Model	Abrasive Action	Examples of Material Tested	Notes
Calibrase® Abrading Wheels
CS-8	Extremely Mild	Labels	Do not exceed 500g load; reface with S-11 disc
CS-10F	Very Mild - Mild	Safety glazing, transparent plastics	Do not exceed 500g load; reface with ST-11 refacing stone
CS-10	Mild - Medium	Organic coatings, plastics, textiles, leather	Reface with S-11 disc
CS-10W	Mild - Medium	Textiles	No colorant, eliminates color transfer from the wheel to the specimen; reface with S-11 disc
CS-17	Medium - Harsh	Anodized aluminum, powder coatings, ceramics, plastics and enamels	Reface with S-11 disc
NOTE: Shelf life is dependent on proper storage conditions: temperature = 23 °C ±2 °C, relative humidity = 50% ±5%. Calibrase wheels should be refaced with S-11 disc, except for CS-10F. Do not use AFTER expiration date. Custom formulations available.
Calibrade® Abrading Wheels
H-38	Mild	Woven and non-woven fabrics	Do not exceed 500g load; reface with multi-point diamond tool
H-10	Mild - Medium	Steel and ferrous alloys (including the effect of hardening and tempering treatments)	Reface with single-point diamond tool
H-18	Medium - Coarse	Rubber (non-tacky), woven textile fabrics, coated fabrics, flexible plastic sheet	Reface with single-point diamond tool
H-22	Harsh	Rubber, linoleum, leather, automobile floor coverings, concrete	Reface with single-point diamond tool
NOTE: Calibrade wheels should be refaced with Wheel Refacer and single point diamond tool, except for H-38. Calibrade wheels do not have an expiration period. Custom formulations available.
Specialty Wheels and Abradants
CS-0/S-32	Rubber (non-abrasive)	Dental pastes, cleaning powders	Do not use after expiration date; clean with isopropyl alcohol
CS-5	Wool Felt (dense)	Textile fabrics (when the service wear requires one fibrous material to rub against another)	Do not exceed 500g load
S-33	Sandpaper Strips	Vitreous and porcelain enamels, paints, metallic coatings, furniture surfaces	Use with CS-0 wheels; 12.7 x 160 mm strips include adhesive; P320A FEPA aluminum oxide (avg. particle 46.2µm) closed coat on "A" weight paper (70 - 100 g/m²)
S-42	Sandpaper Strips	High pressure decorative laminates, wood flooring, plastics, furniture surfaces, paints and varnishes	Use with CS-0 wheels; 12.7 x 160 mm strips include pressure sensitive; 180 ANSI-CAMI aluminum oxide (avg. particle 78µm) open coat on "A" weight paper (70 - 100 g/m²)
NOTE: Sandpaper should be stored and conditioned in a controlled environment: temperature = 23 °C ±2 °C, relative humidity = 50% ±5%
