Wedge Printing Plate

Art. No.: 1520

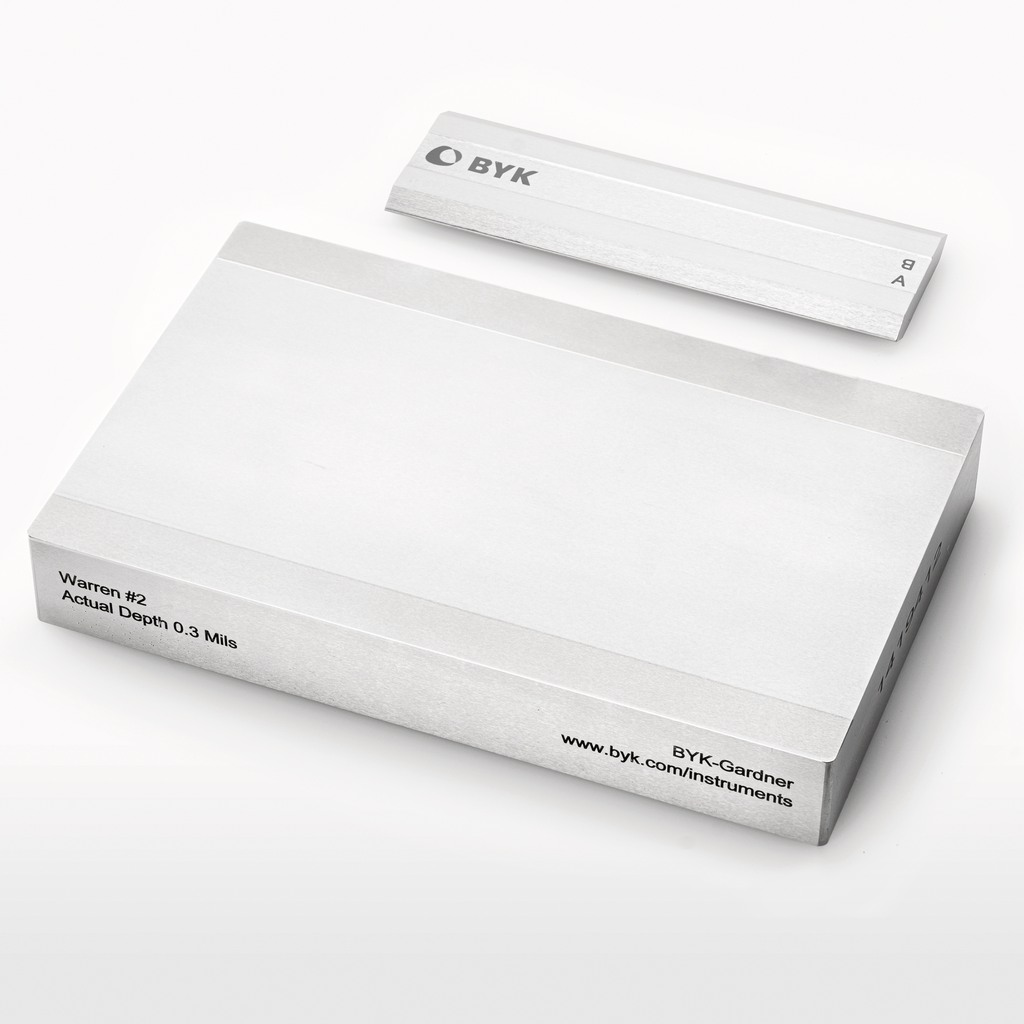

Wedge Print Plate, Warren-2
Wedge Printing Plate - groove depth 0.3 mils

  • Path Size: 76.2 x 165.1 mm
  • No. of Paths: 1
  • Scales: Mils
  • Range: 0.3

Select your Model

$714.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Wedge Printing Plate offers a convenient quality check for ink prior to use on the press. The ink can be evaluated for color, gloss, holdout, varnishability, drying time, rub and fade resistance.

  • Wedge printing plate made of high quality stainless steel for extended use
  • The printing gage consists of a precisely made channel of a fixed depth to control the ink film thickness.
  • The channel has a large surface area to evaluate ink properties.
  • The ink is precisely hand-drawn using a scraper.
  • The plate is easy to clean for quick turnaround.

Technical Specifications
Path Size7.6 x 16.5 cm
Scalesmil
No. of Paths1
Range 0.3 mil
General
Weight3.4 kg
Weight7.4 lb
Dimensions: L x W x H16.5 x 10.2 x 2 cm
Grind block
Scraper (1522)

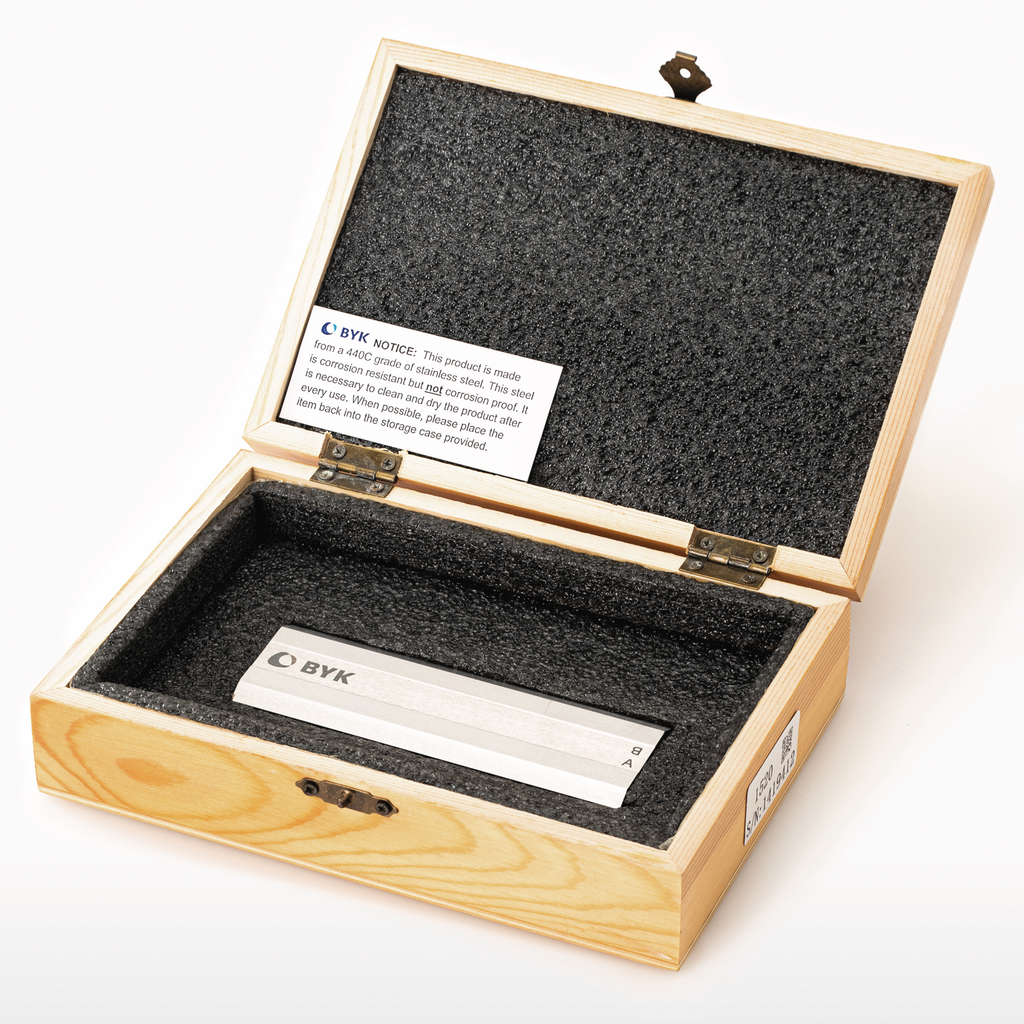

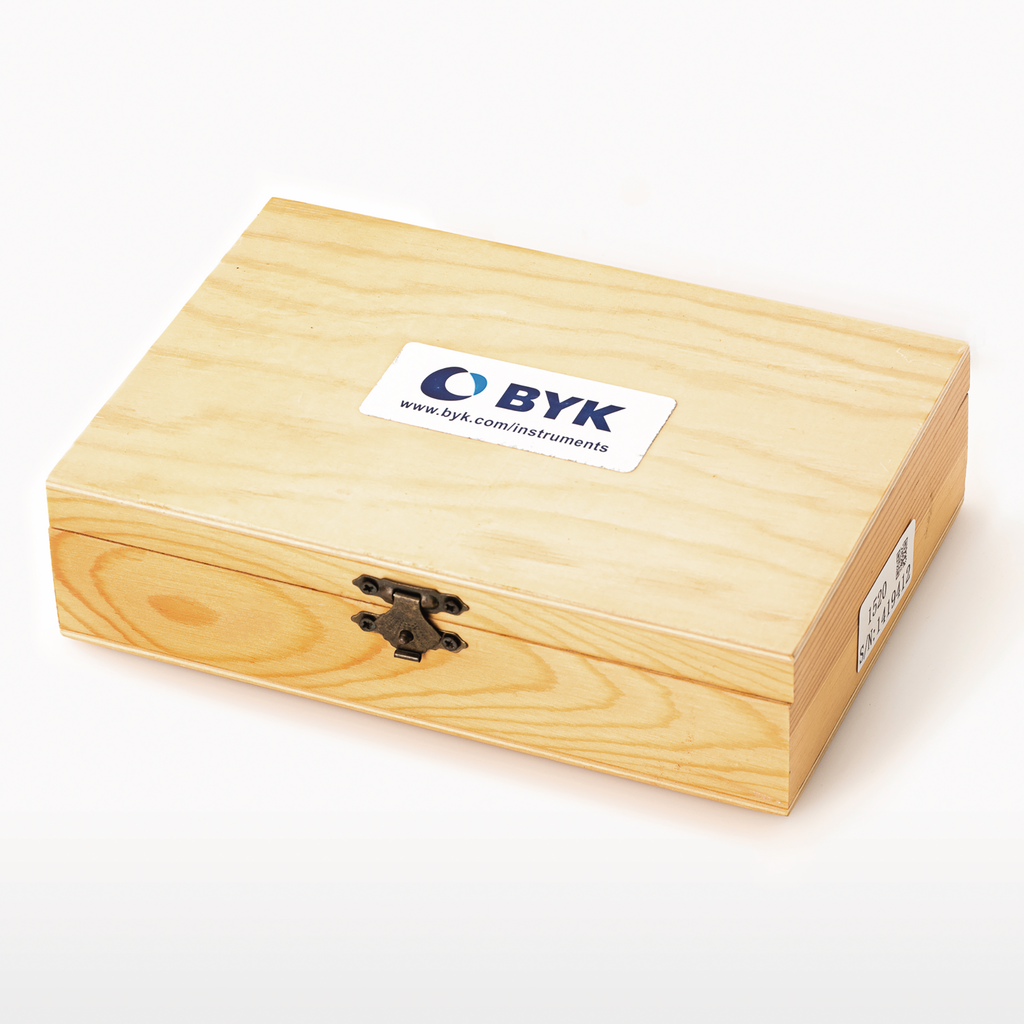

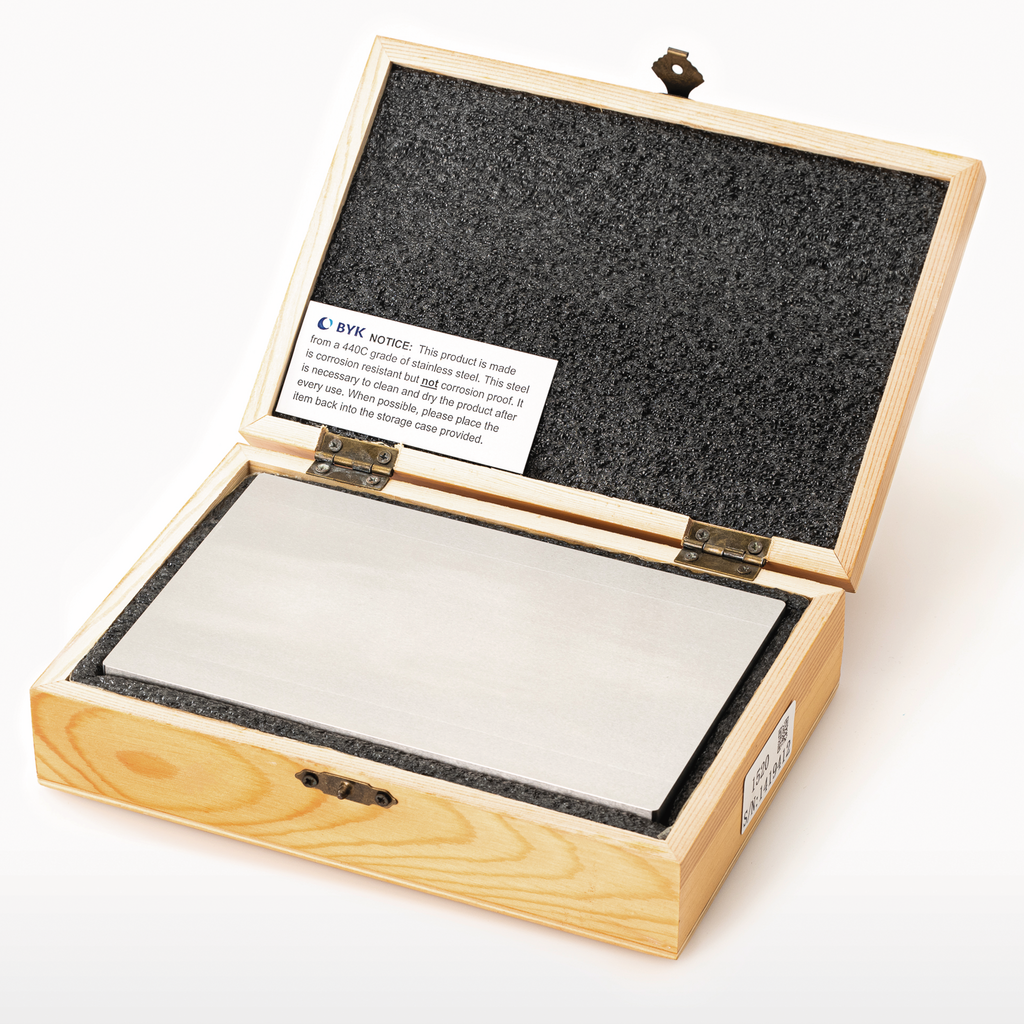

Storage case

Brochure

Warren plate, depth 0,3 mils from BYK-Gardner

Replacement Scraper, 117 mm

Article No: 1522

Price: $258.00

Wedge Print Plate, Warren-3

Wedge Printing Plate - groove depth 0.4 mils

Article No: 1521

Price: $714.00
