WEBSTER® Hardness Tester
Art. No.: 11731
Webster Model B Tester
- 11731 The WEBSTER® Model B Hardness Tester is designed to cover the hardness of aluminum alloys from the 1100 to the 7075 series.
- Standard size of 3/8” diameter anvil with 1/4” jaw capacity
- The 20 graduations on the dial indicator cover the range between 25 and 110 on the Rockwell E Scale.
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost

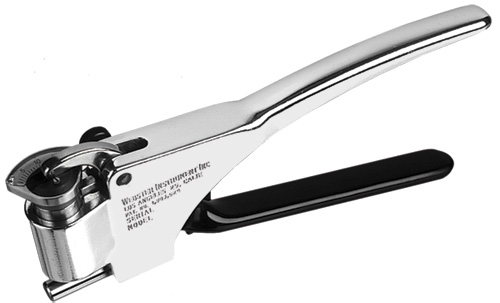

- The WEBSTER Hardness Tester is a portable, easy-to-use hardness tester simply operated with one hand by applying pressure to the handles until "bottom" is felt.
- It is used for testing materials such as aluminum, brass, copper and mild steel.
- Two Models available
- The WEBSTER® Model B Hardness Tester is designed to cover the hardness of aluminum alloys from the 1100 to the 7075 series. The 20 graduations on the WEBSTER® dial indicator cover the range between 25 and 110 on the Rockwell E Scale.
- The WEBSTER® Model B-75 Hardness Tester was developed to obtain more a more sensitive response to slight changes in the upper range of hardness covered by the Model B. This sensitivity is particularly useful in testing mild steel and the stronger aluminum alloys. For brass the B-75 covers the range from annealed to full-hard. The 20 graduations on the WEBSTER® dial indicator cover the range between 20 and 100 on the Rockwell B Scale.
- Other custom anvil and jaw capacity configurations are available, please contact us for a quote.
- Easy-to-read dial indicator with 20 graduations converts to standard hardness scale, or can be used as "go" and "no-go" gauge.
- Standard hardness gauge tests materials between 0.025" and 1/4" wall thickness. Increased capacities available up to 1 inch
- Quickly identify tempers. Tests a variety of shapes that other testers cannot check: Extrusions, Tubing and Flat Stock.
- Test Strips for everyday use in maintaining calibration are available in accessories. Certified Test Strips are confirmed to be within the hardness specified on the Test Strip label with a certified and traceable Bench Model Rockwell Hardness Tester. Each verified test strip is identified by a serial number and comes with a certificate, valid for one year, which testifies to its exact hardness.
| Technical Data Chart | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| |||||||||||||||||||||||||||||||||||||||||
Webster Model B Tester
- Fitted case with a spare penetrator
- Adjusting wrench
- Standard test strip
Manuals
- Webster-Hardness Tester-Model-B-Manual.pdf
Webster-Hardness Tester-Model-B-Manual.pdf

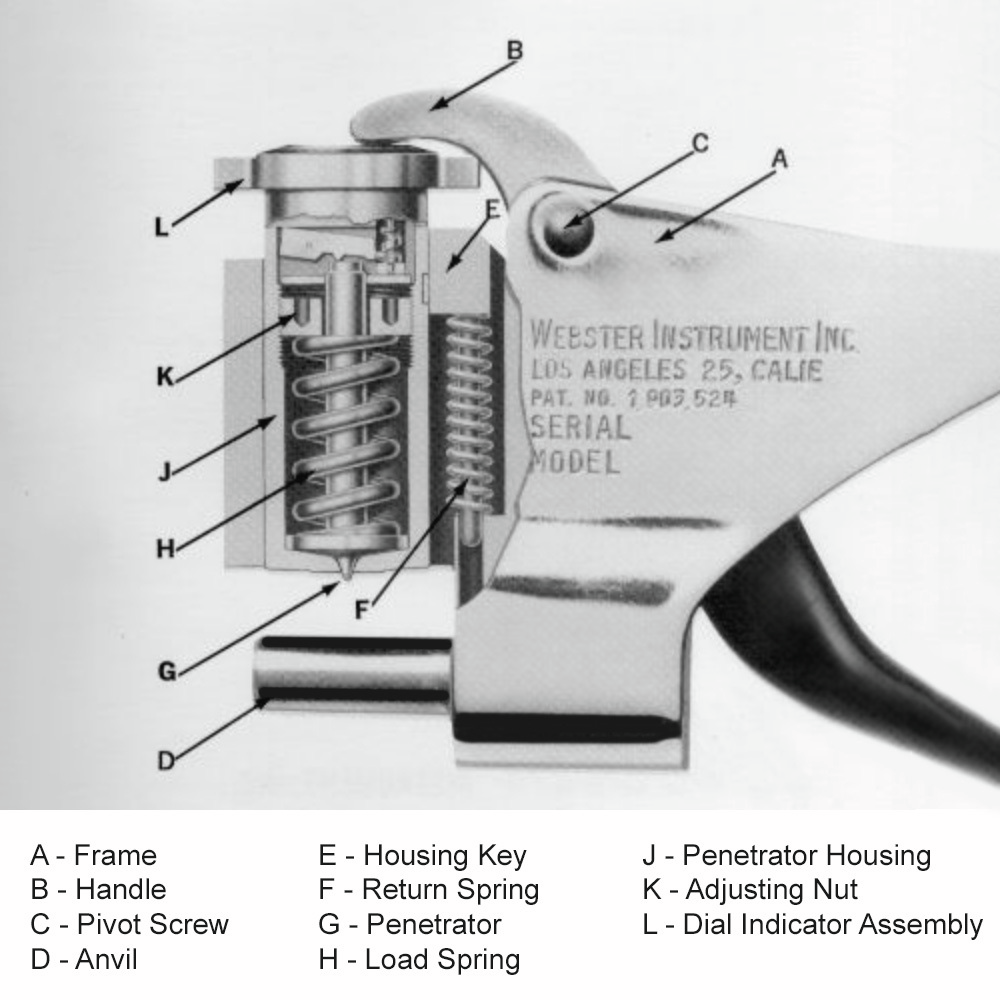

- The penetrator housing, which contains the penetrator and load spring, slides vertically in the frame of the tester when pressure is applied to the handles.
- Only sufficient pressure is needed to "bottom" the lower face of the housing against the work.
- Resistance of the work to the penetrator causes the penetrator to recede into the housing against the spring pressure.
- The degree of penetration on the test specimen is indicated on the dial indicator sitting on top of the housing assembly.
- The load can be varied by adjusting the nut above the load spring, permitting the dial reading to be easily corrected against a test block of known hardness.
- A penetration of .010 inch produces a full scale reading on the dial indicator.
- Therefore materials in the softer hardness range should be of sufficient thickness so that the anvil will not influence the test and produce an "anvil effect". In general, soft materials under .025 - .030 in thickness will not give true readings.
