SuperPIG Paint Inspection Gauge

Art. No.: 14318

TQC Super Pig Paint Inspection Gauge

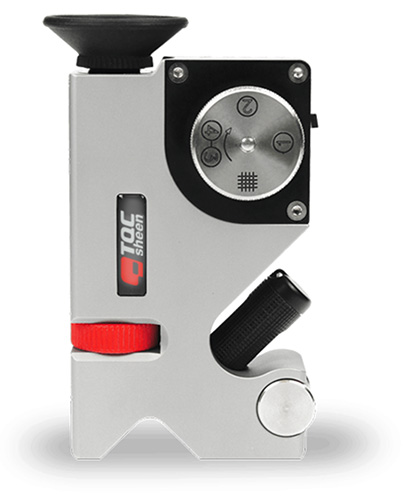

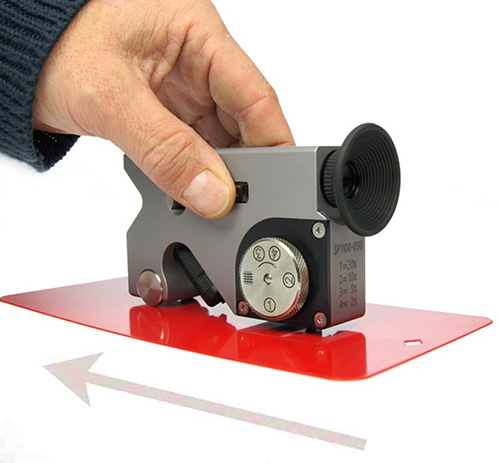

The TQC SP1100 SuperPIG is a destructive paint thickness gauge, a precision tool for coatings inspection and film thickness measurement on single or multiple coats. The Paint Inspection Gauge (PIG) can be used on virtually all substrates, including wood, plastics, metals etc. It also observes and measures substrate and paint defects by applying a small incision in the layer of paint, using an integrated microscope reticle for coatings inspection.

Select your Model

$1,092.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

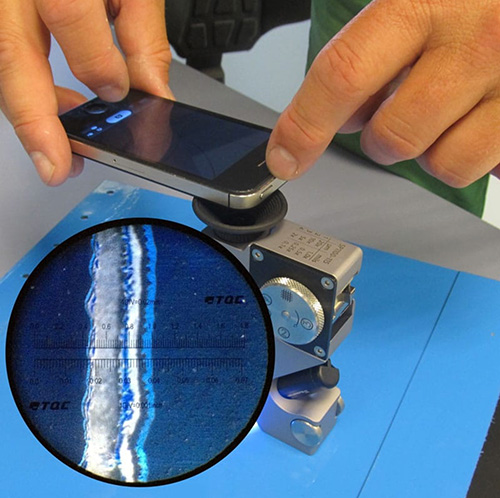

  • Easily capture images using a smart-phone
  • Made of Titanium anodized aluminum
  • Three knife sizesin one holder

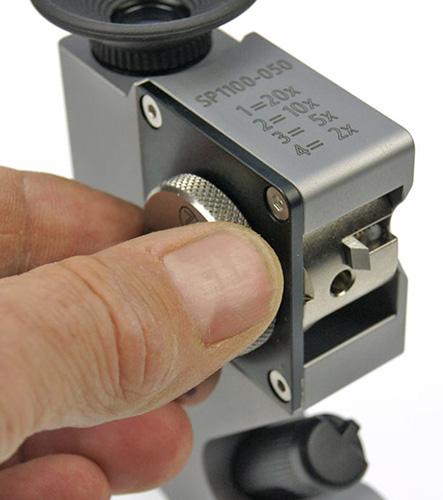

  • Ergonomic design: revolving-system to change knives
  • Bright white LED lights ensure clear vision through the microscope
  • Small size eases use in corners

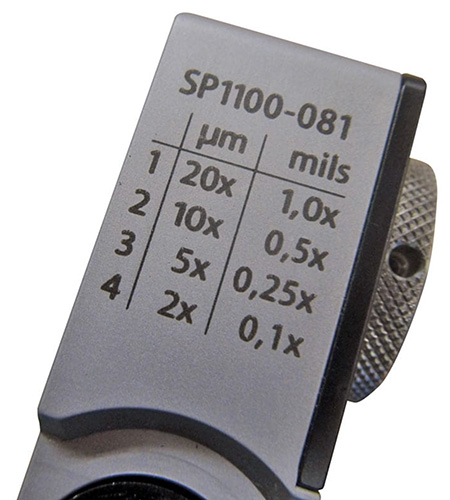

  • Engraved scaling (D-factor) for easy calculations

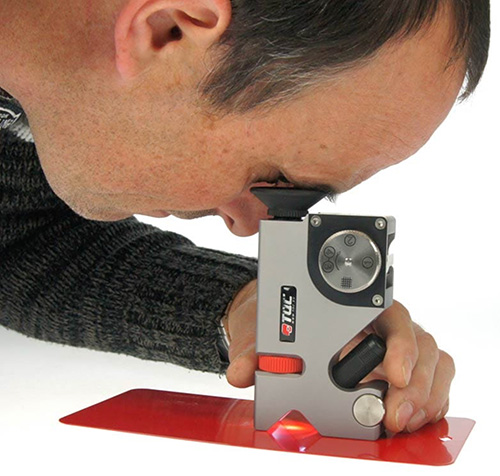

  • A very stable instrument, and it's integrated microscope has excellent focus.
  • The microscope is provided with a double scale (mm and inch) which allows you to calculate in micrometers and mils.
  • A rubber end cap on the microscope reduces ambient light so that when observing through the microscope you will have a better focus upon the specimen.
  • Always clean the instrument after use
  • Clean the isntrument using a soft dry cloth. Never clean the instrument by any mechanical means such as a wire brush or abrasive paper. This may cause, just like the use of agressive cleaning agents, permanent damage.



Technical Data Chart
Data
Range:2 to 1800 microns / 0.1 to 70 mils
Microscope:Magnification 50X (with graduation-scale)
Scale Range:0.00 - 1.8mm / 0.00 - 0.07 inch (rectilinear measured)
Variation:Accuracy depends on chisel cut angle and users reading
Battery:4 x AG13/LR44
Material:Titanium Anodised Aluminum
Width:25 mm
Height:110 mm
Length:65 mm
Standards:ISO 2808, ASTM D4138-07a
Applications:Automotive, Coatings Industry, Construction/Building Maintenance, Galvanize, Laboratory, Paint, Steel Protection, Wholesale
Super Pig III destructive paint inspection gauge
Black marker
Knives 1, 2 and 4
Hex diagonal wrench
Black leather case with belt clip
SuperPig Paint Inspection Gauge Cutter 1

Cutter No. 1, 20 - 1800µm / 1 - 70 Mils

Article No: 14999

Price: $128.00

SuperPig Paint Inspection Gauge Cutter 2

Cutter No. 2, 10 - 900µm / 0.5 - 35 Mils

Article No: 15000

Price: $128.00

SuperPig Paint Inspection Gauge Cutter 3

Cutter No. 3, 5 - 450µm/0.25 - 17.5 Mils

Article No: 15001

Price: $128.00

SuperPig Paint Inspection Gauge Cutter 4

Cutter No. 4, 2 - 180µm / 0.1 - 7 Mils

Article No: 15002

Price: $128.00
