TQC Gloss Meter

TQC Professional Gloss Meters

Art. No.: 11538

TQC Sologloss 60 Degree Glossmeter

  • TQC Sheen Glossmeter
  • Sologloss glossmeter measures 60°

Select your Model

$2,165.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The TQC Gloss Meters allow the user to measure fast and simple accurate gloss levels on any flat surface, such as paper, paint, plastic, wood or any other material.
  • They are portable precision glossmeters for production and laboratory.
  • Easy to use, no special training or skills are required.
  • Memory for 2000 gloss readings (max 8 batches).
  • Adjustable gloss limits with visual and acoustic alarm.
  • LCD color display with wide viewing angle.
  • Menu-driven interface.
  • Stable LED-light source.
  • USB-C port for quick data transfer to PC.
  • Calibration gloss standard integrated in protective holder.

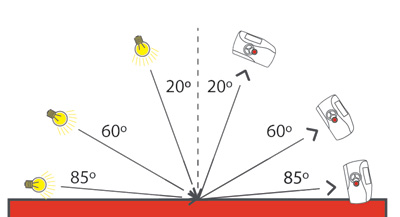

  • The 60° measuring angle can be used for any surface, from matte to glossy. For better gloss measurements on high gloss surfaces the 20° angle is available, while for low gloss surfaces the 85° angle suits best.
  • Ideal Finish Analysis Software is included to analyze the gloss measurement results. This software provides the user the power to do all analysis of interest. Trend, Gaus and many other statistical evaluations are possible.
  • Unique double hybrid frame system has been engineered with the highest precision. Carefully controlling the interior of the light patch helps to give the TQC Gloss meter robust and stable structure.
  • Applications: Flooring, yacht and boat builders, paint and coatings, automotive, furniture, military goods, finishing, plastics, leather, research and development.
  • Meets MFT 30064

Technical Data Chart
Data
Measurement Angle20°60°85°
Range:0-2000 GU0-2000 GU0-2000 GU
Repeatability r*:0.4 GU0.2 GU0.2 GU
Reproducibility R*:1.7 GU1.6 GU1.9 GU
Bias*:1.2 GU0.6 GU1.6 GU
*Acc. ISO 2813 (range 0-100GU)
(Repeatability is the variability of the measurements obtained by one person while measuring the same item repeatedly)
Operational:
Calibration Standard:Integrated tile in dust cover
Display:High Contrast OLED display
Light Source:Extreme low drift LED light source
Power Source:2x AA alkaline batteries
Batches:Max 8
Readings Per Batch:Max 500, non-dependant of number of angles
Total Max Readings:2000 readings with time stamp
Scan Function:Yes
Statistics:Min./Max. / Avg. / Std.dev / number of measurements
Security:Password protection
Software:Ideal Finish Analysis
Dimensions:
Size:3.54”H x 5.55”W x 1.7”D (90H x 140W x 45mmD)
Weight:13.7 oz (398g)
Base Dimensions:1.7” x 5.12” (45 x 130mm)
Orifice Size:0.4” x 2.0” (10 x 50mm)
Spot Sizes:Approx. Spot Size 5 x 5mm @ 20° / 0.2” x 0.2” @ 20°
Approx. Spot Size 20 x 9mm @ 60° / 0.8” x 0.35” @ 60°
Approx. Spot Size 40 x 9mm @ 85° / 1.5” x 0.35” @ 85°
Measurement speed:70 measurements per minute at 3 angles
Simultaneous measurement:3 geometries
Power Saver Option:User selectable
Units:Gloss Units (GU)
Resolution:0.1 GU (0-100GU)
1GU (>100GU)
AS
1580.602.2
ASTM
D523
D2457
C584
BS
3900-D5
DIN
67530
ISO
2813
7668
JIS
Z 8741

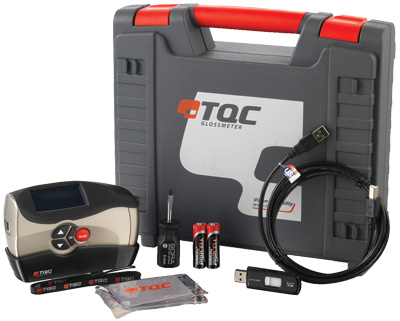

TQC Sologloss 60 Degree Glossmeter
  • Glossmeter
  • (2) AA type batteries
  • Plastic case
  • Screwdriver
  • USB stick with Ideal Finish Analysis software
  • Micro fiber cleaning towel
  • USB cable
  • Calibration Certificate

The science behind the Glossmeter - Glossmeter development starts with an understanding of the basic principle of gloss. Surface textures, translucency and color all influence the visual perception of a surface but also influence the fine optics of the glossmeter. Microscale surface deformations cause scattering of light and divide it into specular and non-specular. This is the fine threshold where the TQC glossmeter is able to determine the gloss at the highest accuracy level. It is common practice to use a 60° angle gloss meter for almost every application. Most specifications specify a gloss level measured at 60° which often deviates from international standards. The measuring angle should always be mentioned in combination with a gloss value.

Sending and receiving - To determine the best light source and detector setup components from suppliers all over the world have been tested. Spectral sensitivity, stability and linearity all proved to be exceptionally stable using the TQC glossmeter.

Standardization - In order to guarantee the TQC glossmeter to be one of the most stable meters availalbe and fullfills all the demands of the ASTM, DIN and ISO standards, TQC joined all of the standardization bodies and are actively involved in testing criteria relating to the standards ensuring the highest test of conformity.

Precision engineering - In order to get the best stability the TQC glossmeter’s unique double frame system has been engineered with the highest precision. Carefully controlling the interior of the light patch helps to give the TQC glossmeter robust and stable structure.

Ten thousands of readings - To assess the quality of the TQC glossmeter we took thousands of readings on certified substrates to test stability, reliability and durability. With or without shock testing the TQC glossmeter proved to have the ultimate level of performance.
