Scrub Abrasion & Washability Tester

Art. No.: 13971

TQC Scrub Abrasion Tester Dry

TQC Scrub Abrasion Tester for dry tests

Select your Model

Abrasion Testers

$9,336.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Preset range option and manual movement
Easy intuitive operating interface with Triple i Control (Intelligent Illumination Interface) and easy to update software
Full color illuminated display
Compatible with a large range of accessories
Precision micro-step controlled electro motor for consistent results
Stable sinus waveform speed control for accurate testing
Modular system allows flexible tool swaps to match different standards
Available in two models: 13970 (wet & dry testing with pump) and 13971 (dry only)
Multi-lingual menu for global usability
Designed for pass/fail or progressive abrasion testing
Compliant with ASTM D2486, D4213, ISO 11998, DIN 53778, and other standards
Ideal for simulating everyday wear such as cleaning actions and surface friction
Robust design for repeatable quality control and product development testing
Expandable with related TQC Sheen solutions (e.g., Camera Tool, Test Charts)

Technical Data Chart

Data

Traverse Speed:	1 - 60 cycles per minute
Traverse Speed Accuracy:	+ / - 1% of set speed
Stroke Length:	0.39 - 11.81 in. (20 - 300 mm)
Stroke Length Accuracy:	+ / - 0.01 mm
Pump Flow Rate:	0.0 - 3.0 ml per minute / 0.0 - 0.79 GPH
Max. Panel Width:	2.76 in. (70 mm)
Max. Panel Length:	13.78 in. (350 mm)
Max. Panel Height:	1.38 in. (35 mm)
Depth:	19.3 in. (490 mm)
Depth with Pumps:	20.87 in. (530 mm)
Width:	25.2 in. (640 mm)
Height:	9.24 in. (235 mm)
Power Supply:	100 - 240 V / 50 - 60 Hz
Power Consumption:	Max. 50 Watt
Display:	480 x 272 pixel TFT display Control: 5-key navigation switch (Mouse Keyboard optional)
Menu Languages:	English, Spanish, Chinese, Polish, German, French, Italian, Japanese, Russian, Turkish

ASTM	D4213 D4828 D2486 D3450 D7835 F1319
BS	13300
DIN	53778
ECCA	T-11
EN	13523-11 60730-1
GME	60269
ISO	105X12 11998

TQC Scrub Abrasion Tester Dry

Scrub Abrasion and Washability Tester Basic
24V adapter & Power Cable
Manual
(2) AB5196 Test Bed
(2) AB5197 Clamping Frames
(2) AB5041 Tool Adapter Double
(2) AB5180 Glass Base

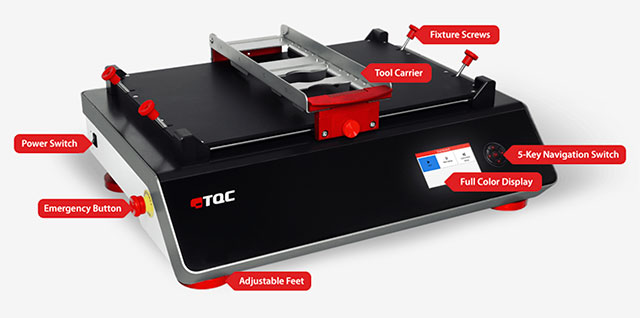

Operation is intuitive by means of a jog-dial switch and a multi-lingual operating menu on a large illuminated display. This unique system guides the operator through the interface of the lab-machines. At each step of the multilingual operating menu the interface detects which buttons are active and indicates these by means of an illuminated red center. This results in a very intuitive operating system which is enhanced with information on the machine’s display.
