TQC Hardness Test Pen

Hardness Test Pen

Art. No.: 11782

TQC Hardness Test Pen Basic

  • Basic Model Hardness Test Pen

Select your Model

$702.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • Pocket instrument for testing the hardness and wear/scratch resistance of materials such as coatings, lacquers, plastics or related products
  • Ergonomic design with anti-slip texture on the holding point
  • Made of maintenance-free anodized aluminium, tips in tungsten carbide
  • Available in 2 models Basic and Pro
  • Very stable load on tip
  • Easy to apply force
  • Can be used on flat and curved surfaces
  • Corporate Standards Bosch, Volvo, Opel, van Laar

AS
3894.4
DIN
927-3
55656
EN
438-2
ISO
1518
SIS
184188

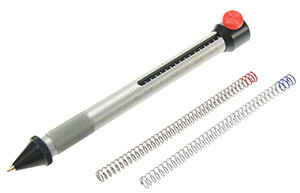

TQC Hardness Test Pen Basic
  • Basic Hardness Test Pen
  • Tip Ø 1mm
  • Black Spring 0-3 N (300g/0.671lb F)
  • Blue Spring 0-10 N (1000g/2.248lb F)
  • Red Spring 0-30 N (3000g/6.74lb F)

  1. Release the red knob on the slider and set the slider to the required position and fasten it by turning the red knob clockwise. (Note the beveled edge of the slider indicates the correct position).

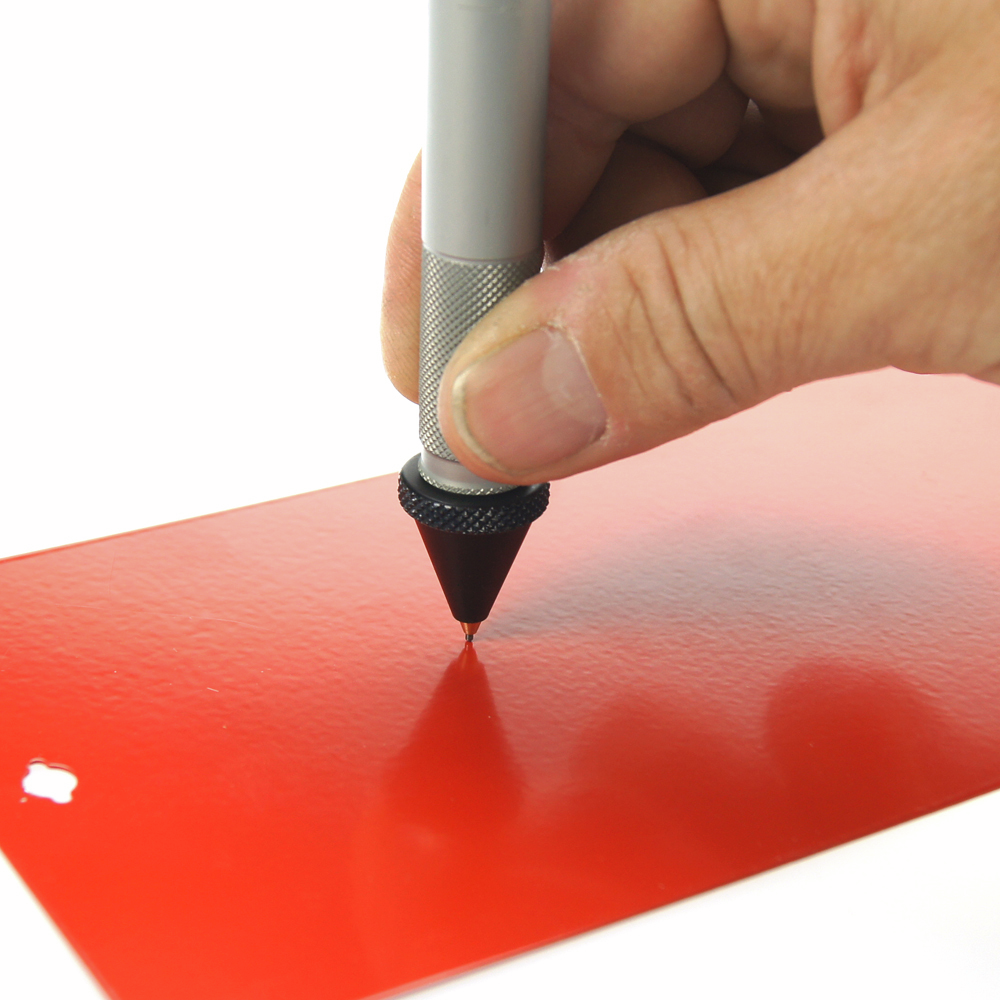

  2. Place the tester perpendicular on the surface to be tested and press the holder, using light force, in order to create load on the tip. The black guide tip should not touch the sample.
  3. A tungsten carbide tip is drawn over the surface with a defined constant pressure. The pressure on the tip can be changed using the slide or by changing the spring.
  4. Move the tester over the surface over a length of about 10 mm with a constant speed.
  5. A visual mark on the surface after use of the Hardness Test Pen indicates a fail of the surface hardness or wear/scratch resistance.
  6. Observe the surface to check for visible marks as indicated by standard.
TQC Hardness Test Pen Tip 1 mm

Replacement Tip For Hardness Pen 0.5 mm

Article No: 11783

Price: $131.00

TQC Hardness Test Pen Tip 1 mm

Replacement Tip For Hardness Pen 0.75 mm

Article No: 11784

Price: $127.00

TQC Hardness Test Pen Tip 1 mm

Replacement Tip For Hardnss Pen 1mm

Article No: 11785

Price: $127.00

TQC Hardness Test Pen 300 Spring

Spring For Hardness Test Pen 300G

Article No: 11786

Price: $114.00

TQC Hardness Test Pen 1000 Spring

Spring For Hardness Test Pen 1000G

Article No: 11787

Price: $114.00

TQC Hardness Test Pen 3000 Spring

Spring For Hardness Test Pen 3000G

Article No: 11788

Price: $114.00

TQC Hardness Test Pen Pro

Hardness Test Pen Pro With Tips/Springs

Article No: 11789

Price: $1,194.00
