Taber Reciprocating Abraser 5900

Name: Taber Reciprocating Abraser 5900
Brand: TABER Industries
SKU: 10083
Price: 7430 USD
Availability: InStock

Art. No.: 10083

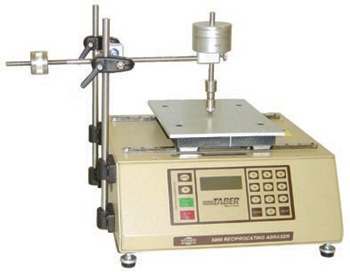

Taber Reciprocating Abraser 5900

The TABER® Reciprocating Abraser (Abrader) - Model 5900 is a test apparatus similar to the instrument described in test method ISO 1518.

Select your Model

Abrasion Testers

$7,430.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Ideal for flat surfaces, this tester can be configured with optional attachments to evaluate the relative resistance or susceptibility of a material surface to physical damage such as wear and abrasion, rub, scratch, mar, gouge, scrape, plus others.
Counterbalanced arm which pivots on an adjustable height gantry system. The counterweight allows the user to balance the test arm, ensuring precise test load set-up regardless of the weight of the attachment.
Incorporated at the end of the arm is a tool holder to which optional attachments and weights may be secured.
A sliding specimen platform moves in a horizontal, reciprocating motion under the stationary tool holder.
Test parameters such as stroke length (6 - 155mm), speed (3 - 75 cycles per minute) and load (1N - 24N maximum, with included weights of 1N, 2N, 2.5N, 5N, 10N & 24N) are adjustable so optimal settings for each material can be established.
The Wearaser® collet assembly comes standard with each Taber Reciprocating Abraser, along with CS-10 and H-18 Wearaser abradants. The size and shape of a pencil eraser, the Wearaser is made using the same high quality Taber abrasive media found in our Genuine Taber abrading wheels. This permits the use of equivalent abrasive materials with the Reciprocating Abraser as well as Taber's Linear Abraser and the Taber Rotary Platform Abraser.
The standard specimen table provided with the Reciprocating Abraser is 216mm x 278mm (8.5" x 11") with drilled tapped holes to accommodate specimen clamps or optional specimen fixing plates.
Can accommodate two additional test arm kits (sold separately), permitting up to three tests to be performed simultaneously.

We need your approval

This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.

Always accept YouTube

Cookie Banner powered by

consentmanager.net

Abrasion Tester
Testing arm assembly (1 set)
Weight set (1N-24N)
Stainless steel wearaser collet assembly
Wearasers (pkg/10)
Wearasers (pkg/5)
Wearaser depth gauge tool
Refacing strips (pkg/50)
Specimen clamp (2)
Hex L-key (6)
Hand brush
