Taber Heavy Duty Linear Abraser 5800

Name: Taber Linear Abraser 5800 115/230V
Brand: TABER Industries
SKU: 10080
Price: 8710 USD
Availability: InStock

Art. No.: 10080

Taber Linear Abraser 5800 115/230V

The Taber Heavy Duty Linear Abraser 5800 is a versatile tester that can evaluate material properties of finished products with a rugged, durable surface finish. You can customize test parameters to your exact needs with adjustable stroke length, speed and load.

Select your Model

Abrasion Testers

$8,710.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Measure abrasion resistance and other material properties.

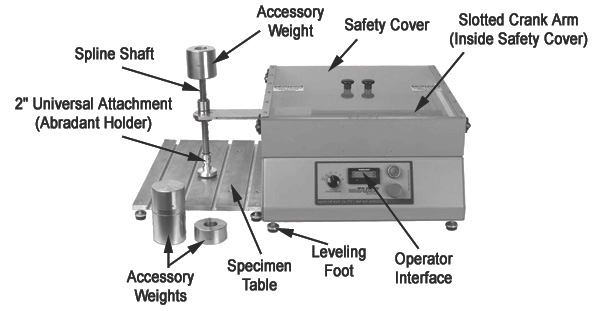

Integrated T-slot table makes specimen mounting straightforward, permitting consistent test set-up.
A free floating head follows the contours of test specimens, permitting the testing of flat or contoured products.
Supplied with the 2” diameter Universal Attachment and Scotch-Brite™ scouring pads, this instrument may be used to measure resistance to scrubbing for products like nonstick coatings.
With a 16mm diameter spline shaft and higher torque motor, the Heavy Duty Linear Abraser can accommodate a testing load up to 4550 grams (10 lbs) per test sample. And to increase test output, adding an optional second test kit allows two tests to be performed simultaneously.
Slotted crank arm for adjustable stroke length (0” to 13”)
Preset speed selections (15, 30, 37, 45, 60 cycles per minute)
Stroke length scale calibrated in English and Metric Units
16mm diameter spline shaft
Left / Right side mounting
115V / 230V operation
Variable load from 500 to 4550 gram (optional weight discs available)
Optional attachments (sold separately) may also be used to evaluate resistance to damage from rub, scratch, or mar.

Linear Abraser
Load arm w/ spline shaft/weight support assembly
Weight set (1000g, 2000g, & 4050g)
T-slot specimen table
Universal attachment
2” diameter
Hex L-key tool
3M scotch brite® abrasive pad, 6” x 9” sheet (3 ea.)
Hand brush (S-12)
Power cord kit
Operating instructions
