Taber Linear Abraser 5770
Taber Linear Abraser 5770

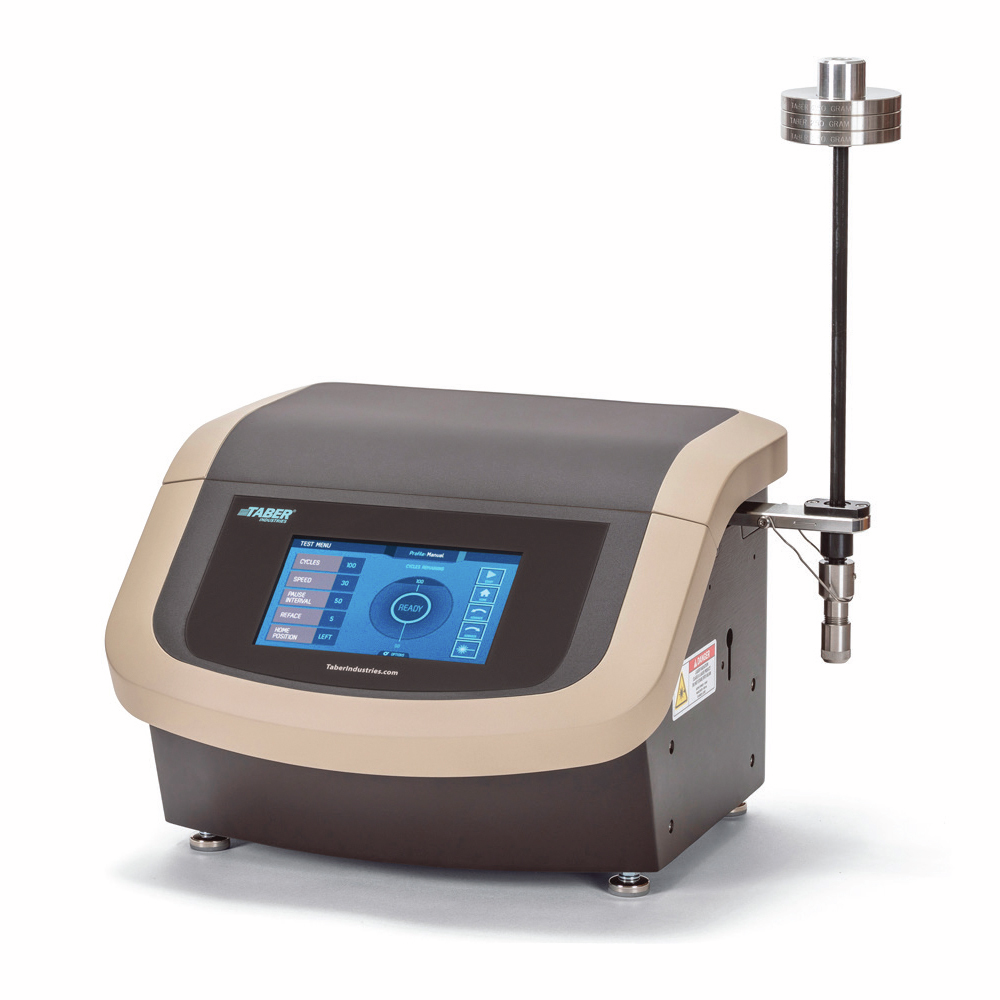

The Linear Abraser, 5770, is engineered to test either contoured or flat surfaces, and is ideal for evaluating finished products of various sizes.
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- LCD operator touch screen interface with selectable display options
- Eleven standard stroke lengths from 0.2 to 4.0 inch
- Variable stroke speed from 2 to 75 cycles per minute
- Variable load from 350 to 2400 gram with optional auxiliary weight discs

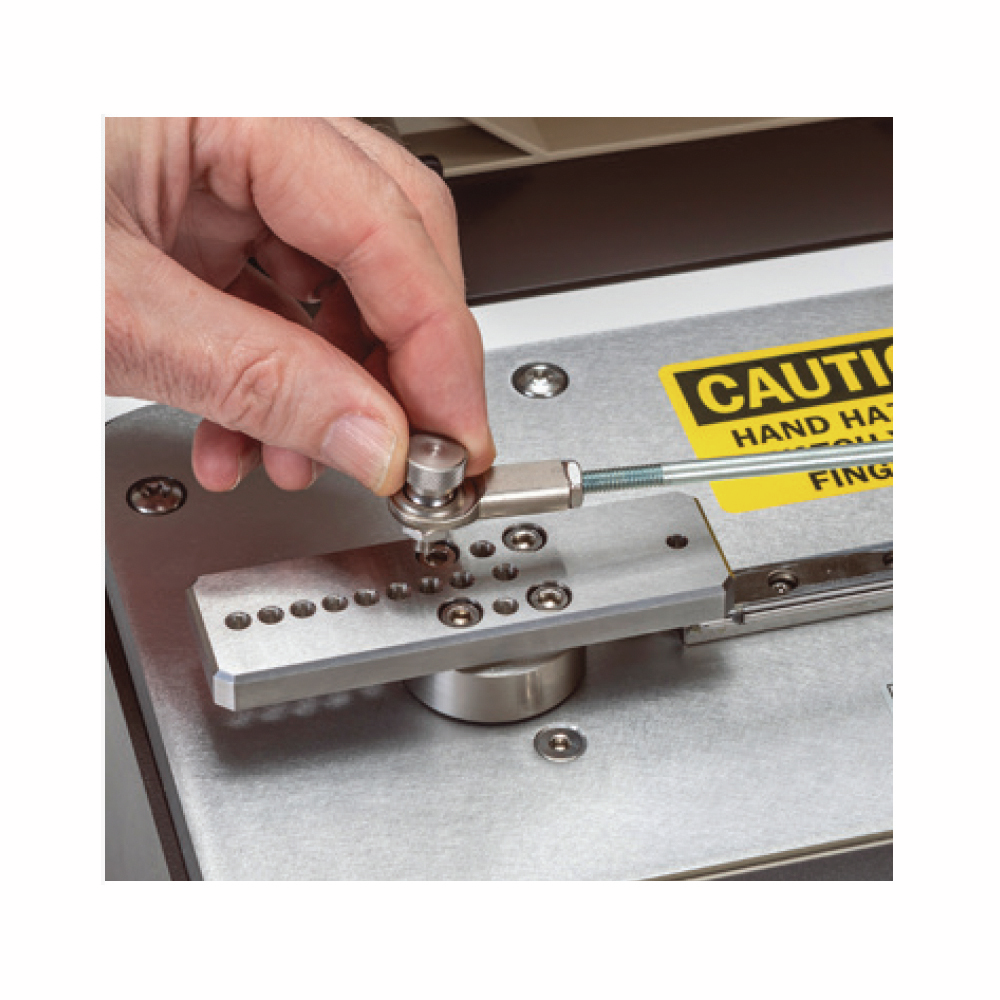

- Laser alignment guide for accurate specimen positioning
- Display test cycles or strokes
- Safety switch stops test when lid is
- Home feature for ease of set-up
- Can be used for both wet and dry testing
| Technical Data Chart | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Data |
| ||||||||
| ASTM | D3389 D3884 D4060 |
|---|---|
| ISO | 5470 |

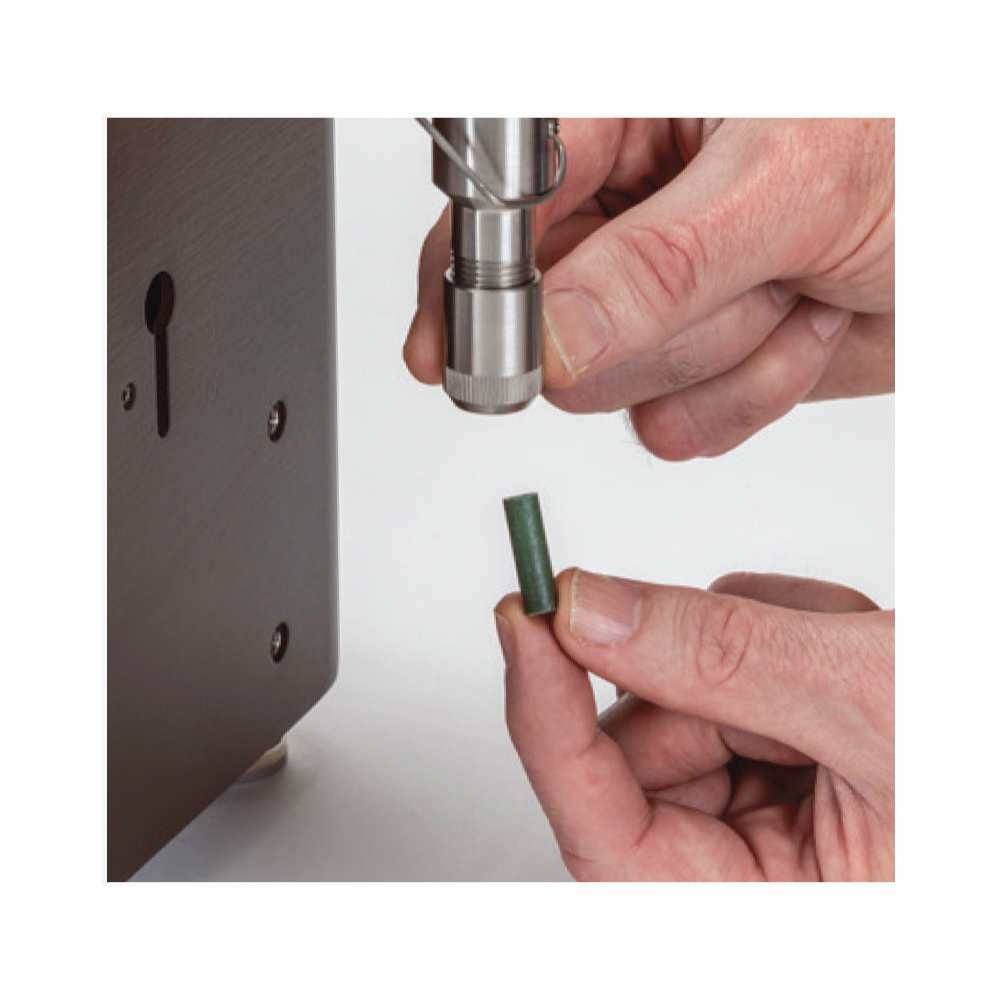

- Wearaser Collet Kit, Stainless Steel
- 250g Auxiliary Weight Disc (x3)
- CS-10 & H-18 Wearasers
- Wearaser Depth Gauge / Sharpener
- S-14 Refacing Strips
- S-12 Hand Brush
- Certificate of Calibration
- CE Certification

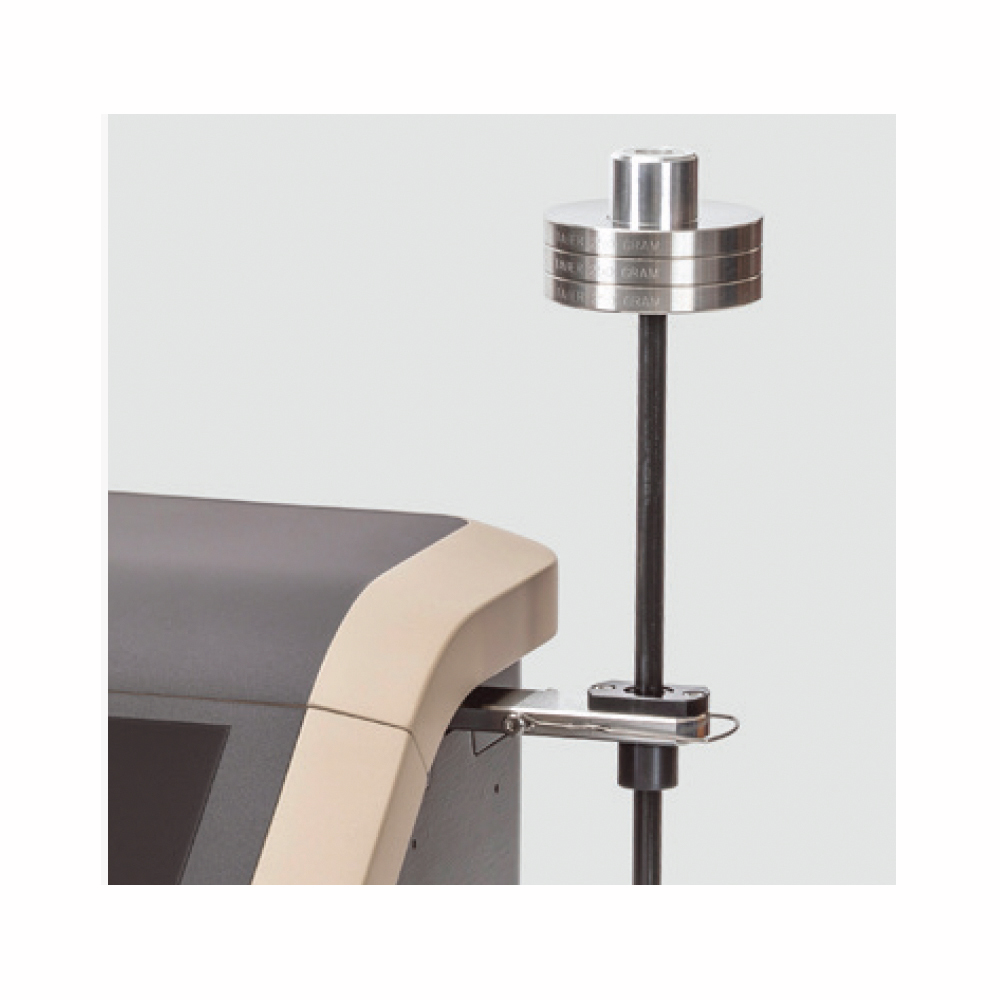

- The Linear Abraser has an arm with an attached precision bearing spline shaft that creates a ‘free-floating’ test system and permits vertical movement.

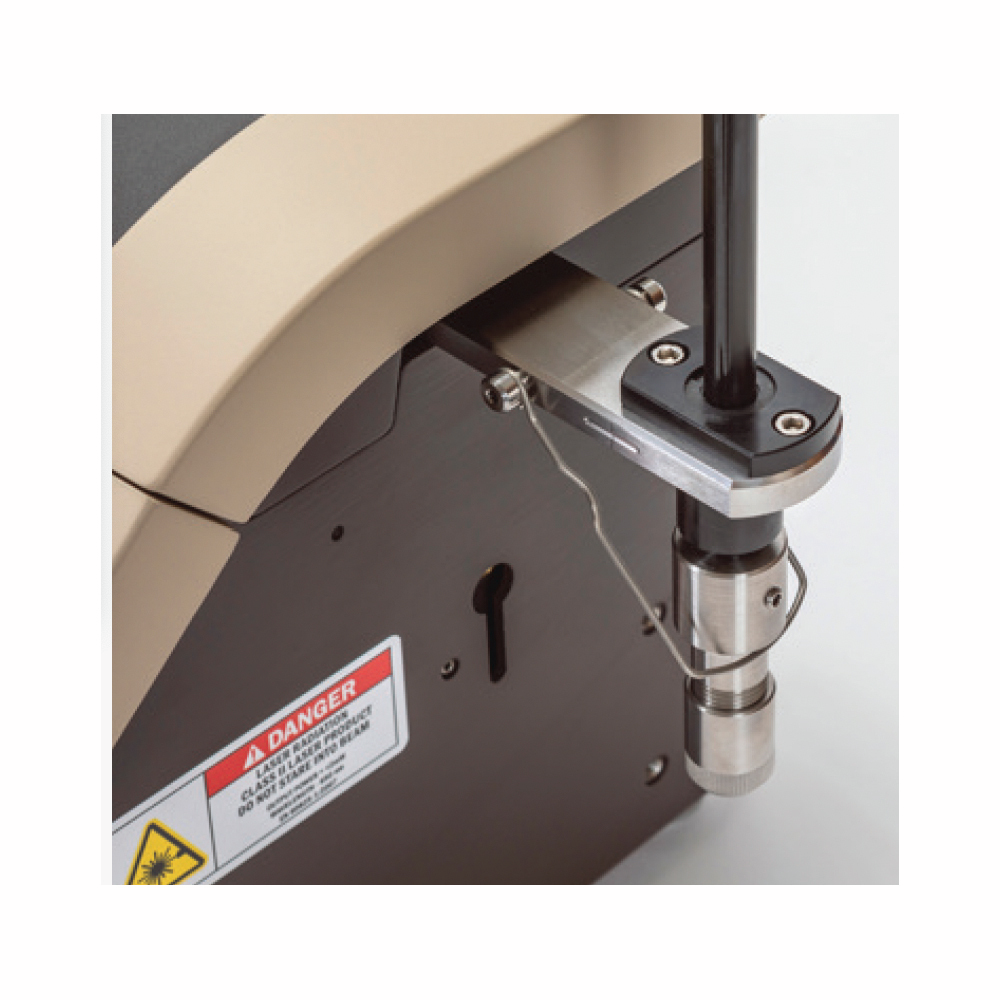

- The test attachment is affixed to the bottom of the spline shaft and a weight support is mounted to the top to allow for different applied loads.
- As the horizontal arm reciprocates back and forth in a linear motion, the test system raises or lowers vertically as the test attachment follows the contours of the specimen.
- To expand the versatility of this instrument, the Linear Abraser can be configured with optional test attachments to evaluate the relative resistance of a material’s surface to damage such as wear and abrasion, scratch, gouge, scrape, rub, crocking, plus others.
Taber CS-17 Wearaser Media Harsh 10/pk
Article No: 10041
Taber CS-2 Wearaser Media 10/pk
Article No: 10043
Taber CS-8 Wearaser Media Mild 10/pk
Article No: 10044
Taber CS-10F Wearaser Media Mild 10/pk
Article No: 10045
Taber CS-10 Wearaser Media Mild 10/pk
Article No: 10046
Taber H-38 Wearaser Media Very Fine 5/pk
Article No: 10047
Eraser According To Mil12397B 5/pk
Article No: 10048
Taber H-18 Wearaser Media Medium 5/pk
Article No: 10049
Taber H-22 Wearaser Media Coarse 5/pk
Article No: 10050
Taber CS-10F Jumbo Media Mild 10/pk
Article No: 10051
Taber CS-10 Jumbo Media Mild 10/pk
Article No: 10052
Taber CS-5 Jumbo Wearaser Felt 5/pk
Article No: 10053
Taber S-14 Refacing Strips 50/pk
Article No: 10056
Spline Kit 10mm Dia X 300mm 180G
Article No: 10057
Wearaser Collet Kit Stainless 98G
Article No: 10059
Wearaser Collet Kit Plastic 16G
Article No: 10060
Jumbo Wearaser Collet Kit 43G
Article No: 10061
Universal Attachment 25mm Dia 98G
Article No: 10062
Crocking Cloths pkg/1000
Article No: 10063
Crock Meter Kit For Abraser
Article No: 10064
Wire/Cable Scrape Abrasive Kit (63G)
Article No: 10065
Coin Holder Attachment 45 Degree
Article No: 10066
Coin Holder Attachment 75 Degree
Article No: 10067
Pencil Hardness Scratch Kit 5750/5900
Article No: 10068
Multi-Mar Scratch Attachment 45 Degree
Article No: 10069
Copper Coin For Use With Multi-Mar
Article No: 10070
Conical Scratch Tip 0.1mm Diameter
Article No: 10071
Taber Hemisphere Mar Tip 1.0 Dia.
Article No: 10072
Taber Hemisphere Mar Tip 7.0 Dia.
Article No: 10073
Weight Auxiliary 250G
Article No: 10074
Weight Auxiliary 150G
Article No: 10075
Weight Auxiliary 100G
Article No: 10076
Weight Auxiliary 75G
Article No: 10077
Weight Auxiliary 50G
Article No: 10078
Weight Auxiliary 20G
Article No: 10079
Taber H-10 Wearaser Fine Abrasive Media
Article No: 14221
T-Slot Universal Table for 5770
Article No: 15535
