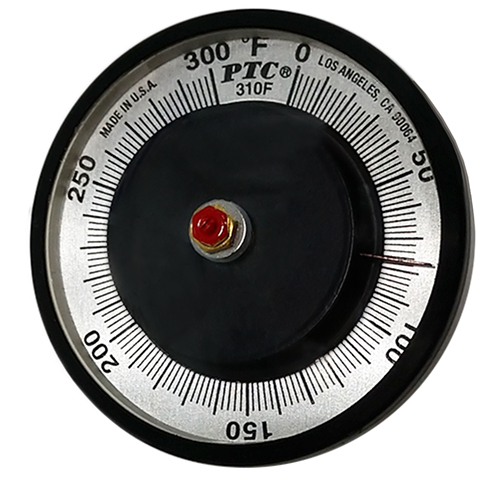

Surface Temperature Thermometers
Art. No.: 13389
Surface Temp Therm 0F/300F
These fully enclosed Surface Temperature Thermometers, sealed to protect Bimetal, are fabricated of quality materials and work on a conduction-radiation principle. They are easy to use and can be installed quickly.
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
Fully Enclosed to Protect Bimetal
Accuracy of ±2% of Full Scale
NIST Certification Available
Units Weigh Only 1 Ounce
Can be used for external wall leakage temperatures of refrigerators, cold chambers, freezers, ovens, boilers, electric motors, cylinder blocks, plastic dies, and rubber molds
Magnet with Leaf Spring and Silicone Grease Available for Attachment
| Technical Data Chart | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| ||||||||||||||
Surface Temp Therm 0F/300F
- The base of the unit is placed on the surface to be measured.
- Heat is transferred to the inner chamber of the unit, which contains a bimetallic sensing element.
- Radiation from the base inward causes the sensing element to react, with resulting dial readout.
- For non-horizontal areas the bottom of the unit is coated with a thin layer of silicone grease and the unit is pressed into position. The grease will hold the thermometer in place on ferrous surfaces and a magnet and leaf spring holds the instrument firmly against the surface.
Magnet & Leaf Spring
Article No: 13387
Silicone Adhesive 1/2-Oz
Article No: 13388
