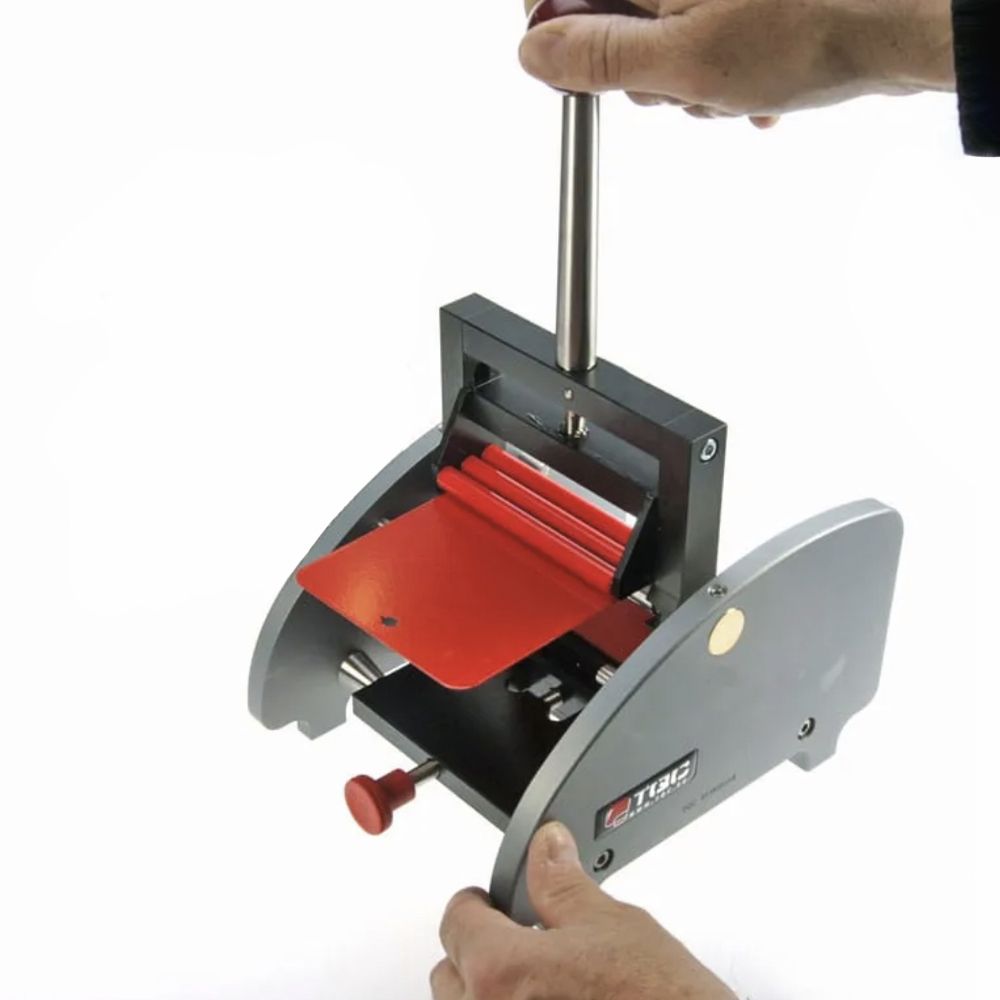

TQC Cylindrical Mandrel Bend Test In Use

Cylindrical Mandrel Bend Test

Art. No.: 12082

SP1820 Cylindrical Bend Test, Metric

  • Cylindrical Bend Test SP1820
  • Metric Measurement Scale
  • Has set of 14 mandrels with a diameter of 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32 mm.

Select your Model

$2,550.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The TQC Cylindrical Bend Test is used to determine the elasticity adhesion and elongation of paint on sheet metal in accordance with ISO 1519.

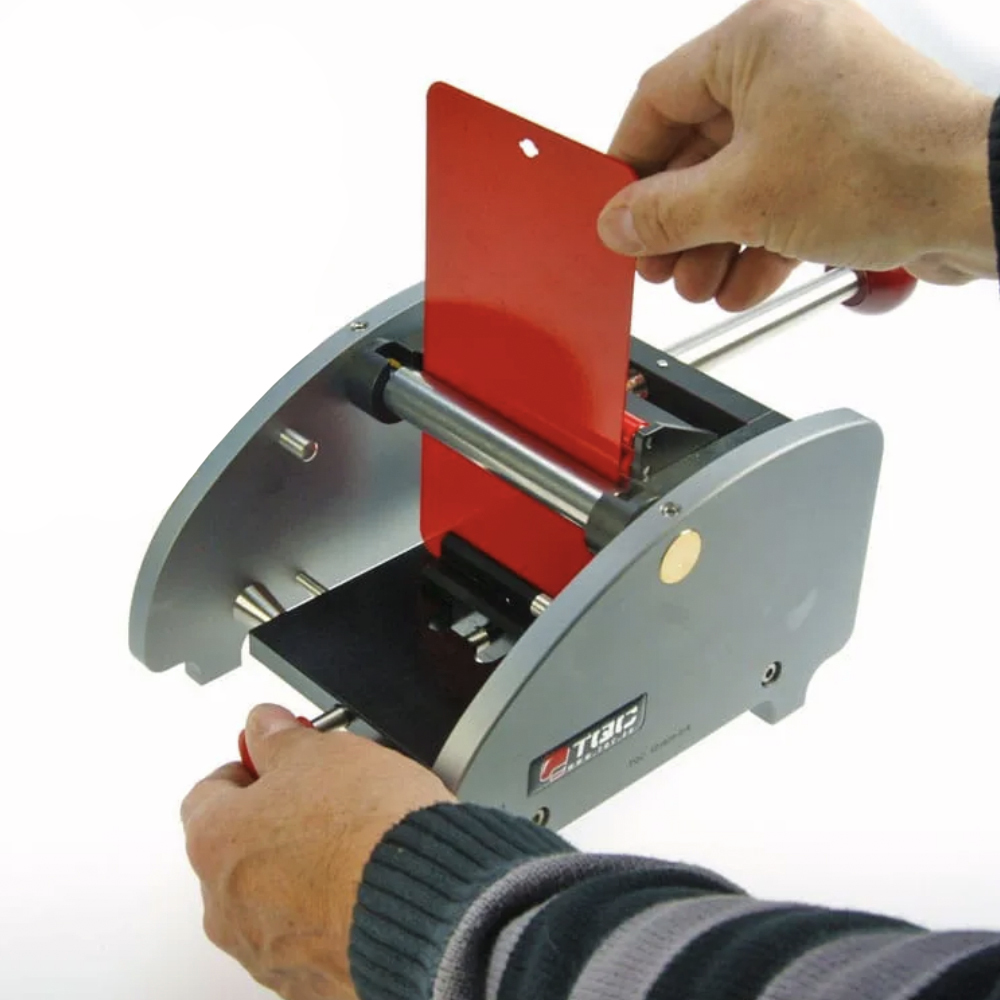

  • A test panel (max. size 150 x 100 mm) is bent over a cylindrical mandrel. The smaller the diameter of the mandrel, the larger the tension on the coating. The test panel is then checked for cracks or damage in the coating.
  • Sturdy apparatus made of a combination of anodized aluminium and stainless steel.
  • Ergonomic clamping device for test panels and large knob on bending arm easy and smooth bending.
  • Large test panel size: max. 150 x 100 mm
  • Luxurious wall mounted / desktop mandrel holder
  • The Cylindrical Bend Test is designed to perform tests according to the latest ISO standards. ISO 1519: "Assessing the resistance of a coating, paint, varnish or related products to cracking and/or detachment from a surface when, subjected to bending around a cylindrical mandrel under standard conditions".
  • Though robust in design, this instrument is precision-machined. Always clean the instrument after use with a soft dry cloth. Do not use compressed air to clean the instrument.

Technical Data Chart
Data
Cylindrical Bend Test
Dimensions:140x 170 x 340 mm (5.51 x 6.69 x 13.39 in)
Weight:4150 gram (9.15 lbs)
Max. Test Panel Size:150 x 100 mm (5.9 x 3.9 in)
Max. Test Panel Thickness:1 mm (0.039 in)
Desk Holder with 14 Mandrels
Dimensions:100 x 130 x 160 mm (3.94 x 5.12 x 6.3 in)
Weight:2900 gram (6.39 lbs)
Desk Holder with 7 Mandrels
Dimensions:100 x 130 x 160 mm (3.94 x 5.12 x 6.3 in)
Weight:1740 gram (3.8 lbs)
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net
Cylindrical Bend Test 100 mm
Desk holder for mandrels
2mm mandrel
3mm mandrel
4mm mandrel
5mm mandrel
6mm mandrel
8mm mandrel
10mm mandrel
12mm mandrel
13mm mandrel
16mm mandrel
19mm mandrel
20mm mandrel
25mm mandrel
32mm mandrel

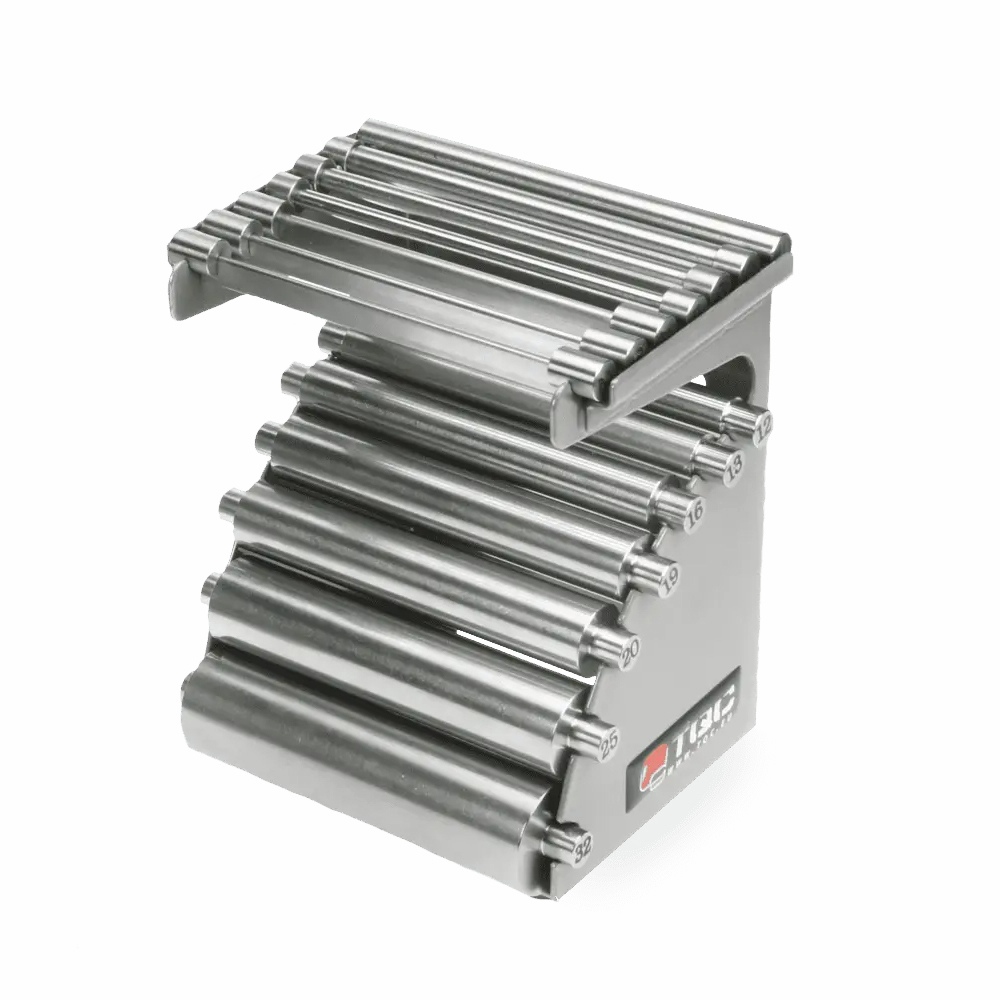

TQC Cylindrical Metric Mandrels

Cylindrical Mandrels Metric, Set of 14

Article No: 12083

Price: $640.00

TQC Imperial Cylindrical Mandrel

Cylindrical Mandrels Imperial,Set of 7

Article No: 14729

Price: $492.00

TQC Cylindrical Mandrel Bend Test In Use

SP1822 Cylindrical Bend Test, Imperial

Article No: 12084

Price: $2,650.00
