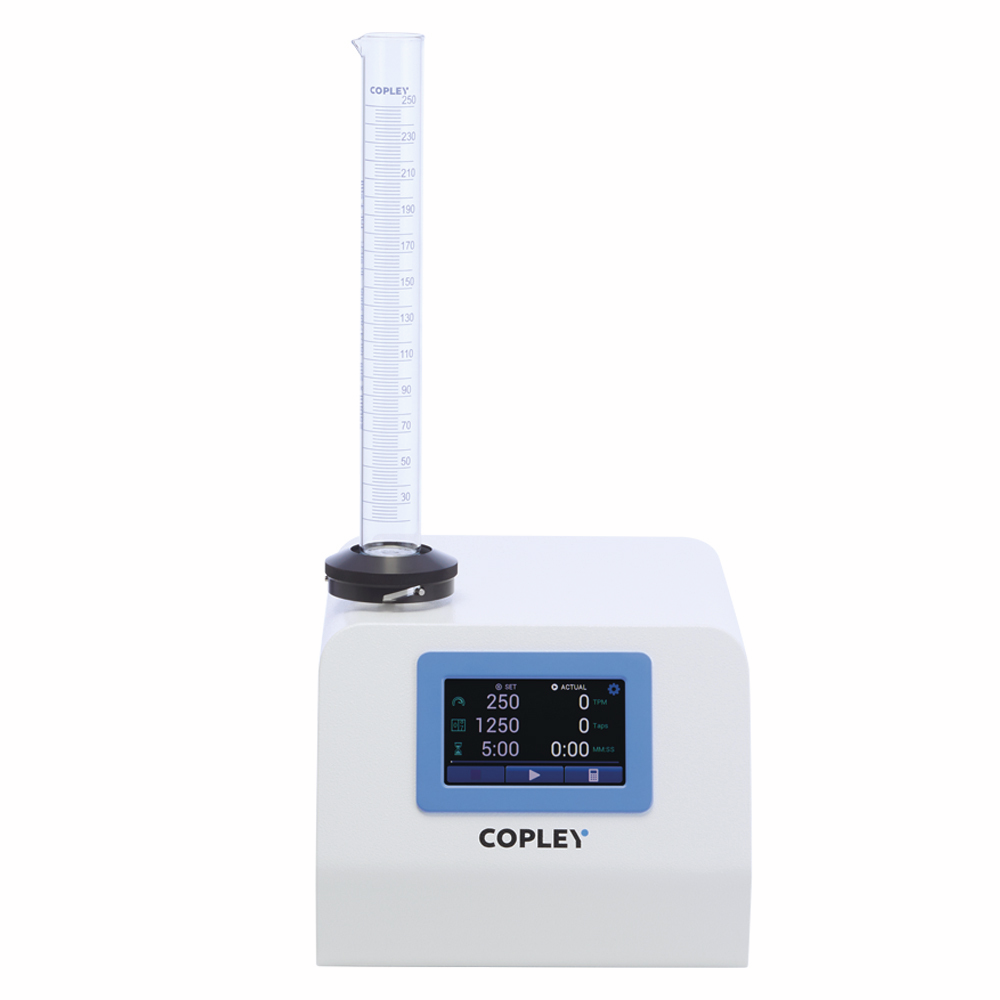

Single Tapped Density Tester

JV 100i - a single-station tapped density system, supporting all associated attachments for Methods 1, 2 and 3. (single glass 250 mL cylinder)

Select your Model

Density Measurement

$4,956.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Copley Tap Density Testers are a high reliability solution for routine measurement of the tap density of powders, granules and similar products
The JVi Series of testers are the only single and double station tapped density systems on the market that offer all three methods specified in Eur. Ph. and USP.
Intuitive touchscreen control to simplify operation
USP Method 1 Capability added (Requires specific platform)
Reporting ability via printer, USB or RS-232
Provides detailed reports, including Hausner ratio calculations for a wide range of industrial standards.
Variable tapping frequency 30-600 TPM
Performs calculations of Bulk Density, Tap Density, Hausner Ratio, Compressibility Index according to Methods 1, 2 or 3
Remote control via RS-232 or USB (ASCII Terminal Command Set)
3 in 1: Single unit supports Methods 1, 2 and 3
Integrated calculation of bulk density, tap density, Hausner ratio and compressibility index
Adjustable stroke frequency control for accelerated or high sensitivity testing
Extensive data reporting output options: RS 232, USB A and USB B
One to two test station unit configurations available
Option to automate and remotely control JVi systems
In accordance with Methods 1 and 2 of USP Chapter 616; and European Pharmacopoeia Chapter 2.9.34.

Technical Data Chart

Data

Mains Supply:	100 V to 240 V, 50/60 Hz
Isolation Classification:	Class I - MUST BE EARTHED
Power Consumption:	Less than 75 W
Fuse:	2 x 2 A (Type T)
Temperature:	15° C to 30° C
Humidity:	10% to 85% (non-condensing)
Waterproof Rating:	Not waterproof
Tap Frequency:	50 TPM to 300 TPM
Resolution:	1 TPM
Accuracy:	±5 TPM
Duration Range:	0 to 99 H: 59 M: 59 S
Duration Accuracy:	±1 s or ±1 % (whichever is greater)
Pharmacopoeial Compliance:	Ph. Eur. 2.9.34 USP <616>
User Interface:	Resistive touchscreen
Test Duration Parameters:	Time or Taps
Alarm:	End of testing (audible)
Test Station Capactiy:	Up to 2 stations (1 left, 1 right)
Data Output:	RS 232 USB Type A (for USB printer) / USB Type B (for communications with a PC)
Methods Supported Details:	Method 1 : 14 mm @ 300 taps/min Method 2: 3 mm @ 250 taps/min Method 3: 3 mm, 14 mm - 50/60 taps/min
Standards:	In accordance with Methods 1 and 2 of USP Chapter <616> and European Pharmacopoeia Chapter 2.9.34. Conforms to ASTM B527.
Models:	JV 100i	JV 210i
Eur. Ph and USP Test Methods Supported:	1, 2, 3	1, 2, 3 - Only one station should be used at a time for this test method
Number of Test Stations:	1	2
Unit Dimensions (w x d x h):	260 x 347 x 562 mm (with 250 mL cylinder)	260 x 347 x 562 mm (with 250 mL cylinders)
Mass (kg):	12	13
Maximum Noise Level @ 1 m:	88.5 dB(A) - 300 TPM, 3mm drop, 250mL Cylinder	84.6 dB(A) - 60 TPM, 3mm drop, 2 x Method III cups
Maximum Sound Power Level:	96.5 dB(A)	92.6 dB(A)

ASTM	B527

Single Tapped Density Tester

250mL Cylinder
Power cable
Platform
Bayonet cap
Cylinder clamp O-ring
Noise reduction O-ring

Manuals

Tap-Density-Testers-Manual-Models-JV-110-210i.pdfTap-Density-Testers-Manual-Models-JV-110-210i.pdf

The bulk density of a powder is expressed in terms of grams per mL by dividing the weight of a given "untapped" powder sample by its volume. It is important to ensure that no settlement occurs during preparation such that the density of the powder concerned is "as poured" and therefore includes the contribution made by the volume of the interparticulate void. Tap Density, on the other hand, is the density attained after "tamping down". This is normally measured using an instrument that lifts and the drops a measuring cylinder or similar vessel containing the powder through a fixed distance. The Tap Density in grams per mL can now be calculated by dividing the sample weight by the final tapped volume.

Compressibility Index and Hausner Ratio - Measures of the ability of the powder to flow and its compressibility can now be given in the form of (a) the Hausner Ratio or (b) the Compressibility Index. In a free flowing powder, inter-particulate interaction is less significant and unsettled and tapped densities will be closer in value. In poorly flowing powders, the inverse is to be expected. It follows that the closer the Hausner ratio is to 1, the better the flow. Powders with poor flow generally have a ratio of greater than 1.25.

Scale of Flowability
Compressibility Index (%)	Flow Character	Hausner Ratio
< 10	Excellent	1.00 - 1.11
11-15	Good	1.12 - 1.18
16-20	Fair	1.19 - 1.25
21-25	Passable	1.26 - 1.34
26-31	Poor	1.35 - 1.45
32-37	Very poor	1.46 - 1.59
> 38	Very, very poor	> 1.60
