Testex Digital Micrometer

Name: RTM Digital Micrometer Certified
Brand: Gardco
SKU: 15446
Price: 360 USD
Availability: InStock

Art. No.: 15446

RTM Digital Micrometer Certified

Select your Model

Surface Profile Testers

$360.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

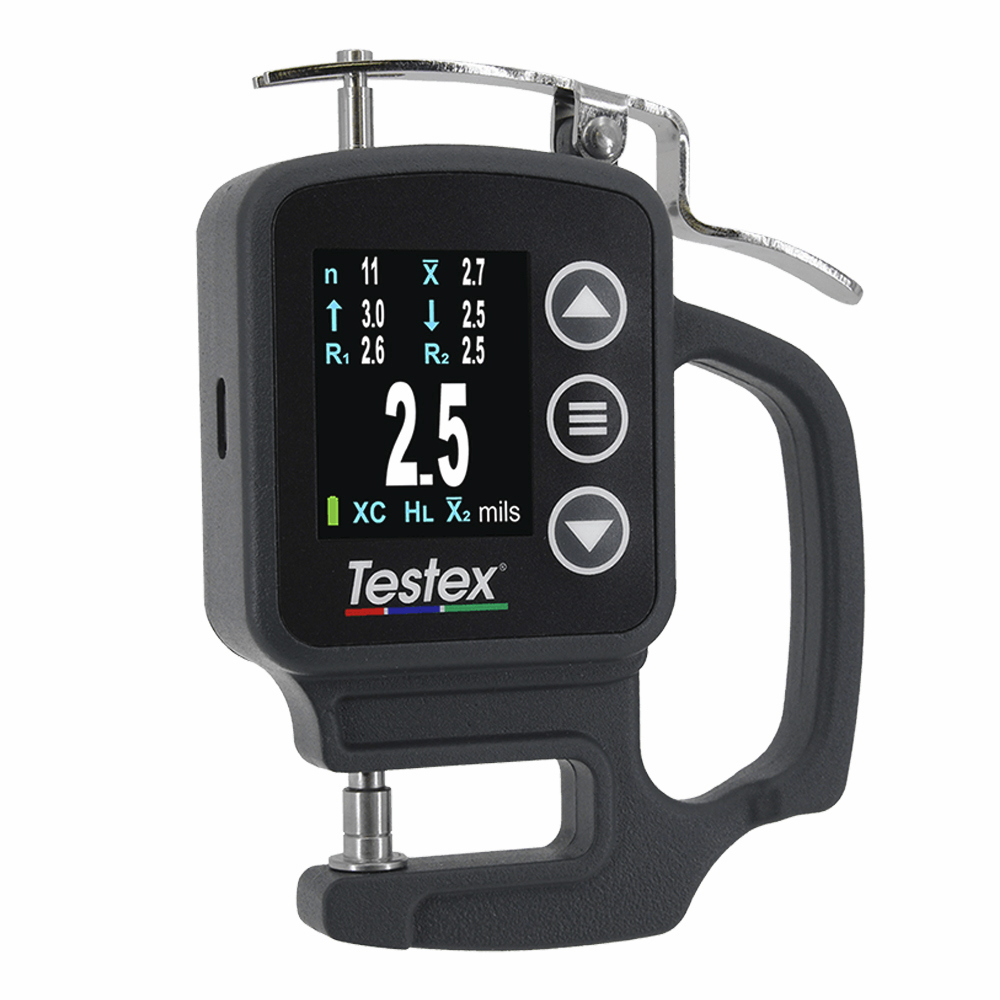

The Testex Digital Micrometer makes using Testex Replica Tape even easier.
It is custom-designed to be the optimal tool for measuring replica tape, and makes taking measurements and creating reports easier than ever.
Bright, high-contrast digital color display with large numerals for easy viewing in bright or dark environments
Measures in both Microns and Mils and less than 30 seconds required for most replicas
Built-in memory for up to 250 readings with on-screen statistics. View and download measurements on any computer using the included USB cable. No software required.
Durable, all-metal housing and powered by a single AAA battery
Simply select the appropriate replica tape grade to automatically apply the appropriate conversion factor and subtract the 50 µm (2 mils) backing thickness
In 'Average mode', the Micrometer prompts the user and averages two readings, in compliance with international standards
A traceable Certificate of Calibration is included with each digital micrometer
Fully compatible with powerful PosiSoft Software for archiving and reporting measurement data
USB Drive mode retrieves data in a manner similar to a flash drive in .csv format. No software to install or internet connection required.
Same trusted Coarse an X-Coarse replica foam in new strip format with easy-remove corner
Made in USA
Complete Kits available with everything needed for testing
Meets: SSPC-PA 17, SP5, SP6, SP10, SP11-87T, and others

Technical Data Chart

Data

RTM Digital Micrometer Certified

Prepare: Use cleaning putty to remove dust, debris, or residual blast media from the measurement site by firmly pressing the putty onto the surface to be tested using your fingers and remove.
Burnish: Select the appropriate grade of replica tape, then pull a single piece of tape free of its release paper and apply to blasted surface. Firmly compress replica film using burnishing tool by applying sufficient pressure in a circular and x-y rubbing motion. When complete, remove tape from surface.
Measure: Insert the compressed replica tape between the micrometer's measurement anvils and take a reading. Ensure the tape is properly positioned so that the burnished region is centered in the anvils with the adhesive side down.
