Fischer Calibration Standards

Name: Precision Plastic Shim 20.0 mils
Brand: GARDCO
SKU: 7120

Art. No.: 7120

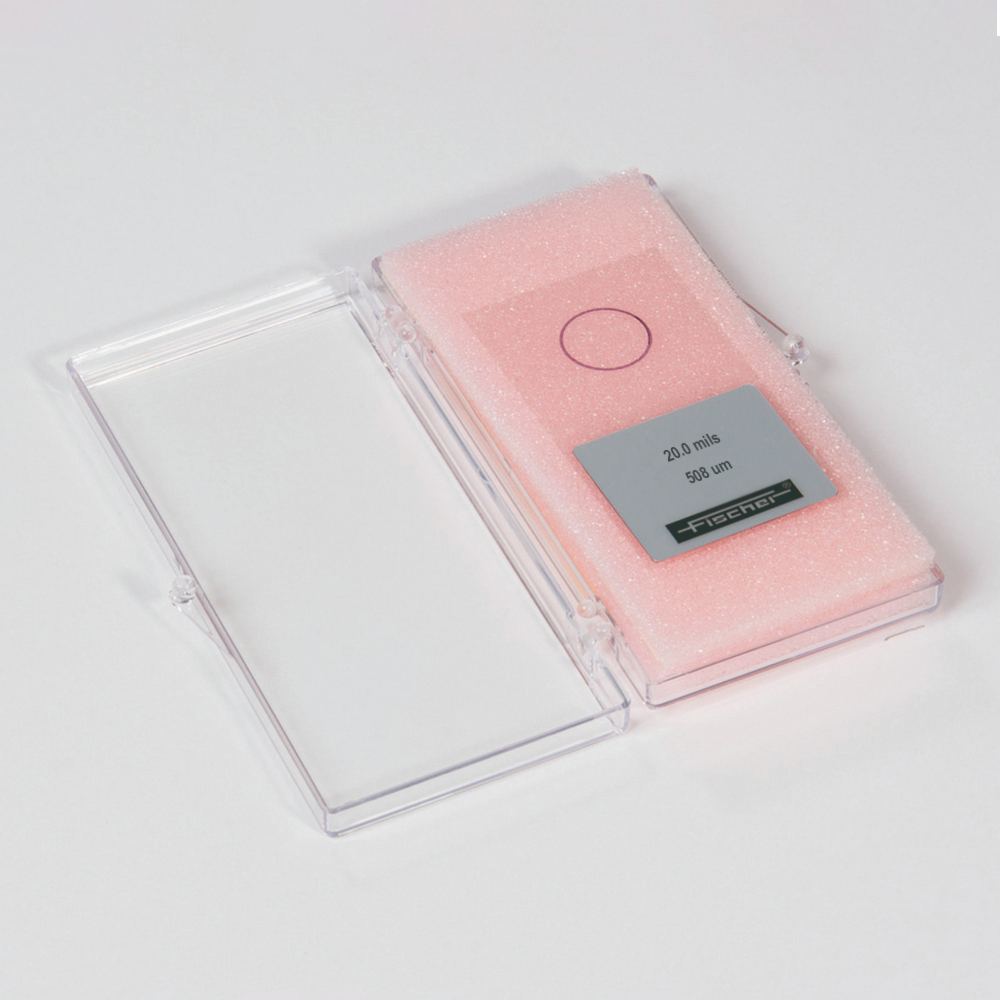

Precision Plastic Shim 20.0 mils
Paint Thickness Gauge Calibration Standard

Optional ISO 17025 Certification available

Select your Model

Shim Material

Nominal Value

$89.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

These plastic shims aid in the calibration of thickness gages on ferrous or non-ferrous metallic substrates. Plastic shims can be used to calibrate on the actual test substrate.
The Fischer Calibration Shims, Foils and Standards are used for the correct measurement of coatings with Coating Thickness Gauges
Both mils and microns are stated on the foils, shims and standards
All foils, shims and standards are certified, serialized, and traceable to NIST or BAM
All ranges are approximate and will be as close as possible to your defined thickness

Thickness Measurement

Measuring Range Mils / µm

Technical Specifications

Full Scale Calibration Range Mils/ µm

Technical Data Chart

Data

Item No.	Nominal Value	Range
Precision Plastic Shim (Mylar Calibration Foils)
11244	0.22 mils (5.59 μm)	0.19 - 0.25 mils (4.83 - 6.35 μm)
7100	0.50 mils (12.7 μm)	0.40 - 0.60 mils (10.2 - 15.2 μm)
7101	0.90 mils (22.9 μm)	0.77 - 1.04 mils (19.6 - 26.4 μm)
11246	1.40 mils (35.6 μm)	1.26 - 1.54 mils (32.0 - 39.1 μm)
7102	2.00 mils (50.8 μm)	1.80 - 2.20 mils (45.7 - 55.9 μm)
11248	2.75 mils (69.9 μm)	2.40 - 3.05 mils (61.0 - 77.5 μm)
11250	3.75 mils (95.3 μm)	3.40 - 4.10 mils (86.4 - 104 μm)
7105	4.75 mils (121 μm)	4.25 - 5.20 mils (108 - 132 μm)
7106	6.75 mils (172 μm)	6.10 - 7.40 mils (155 - 188 μm)
7110	10.0 mils (254 μm)	9.00 - 11.0 mils (229 -279 μm)
11252	14.0 mils (356 μm)	13.0 - 15.0 mils (330 -381 μm)
7120	20.0 mils (508 μm)	19.0 - 21.0 mils (483 -533 μm)
Phenolic Calibration Standards
11254	30 mils (760 μm)	24.0 - 36.0 mils (608 -912 μm)
7140	40 mils (1016 μm)	36.0 - 44.0 mils (914 - 1118 μm)
14754	80 mils (2.03 mm)	72.0 - 88.0 mils (1.62 - 2.44 mm)
11256	200 mils (5.08 mm)	180 - 220 mils (4.57 - 5.59 mm)
