PosiTest Powder Checker

PosiTest® PC Powder Checker Thickness Gauges

Art. No.: 11088

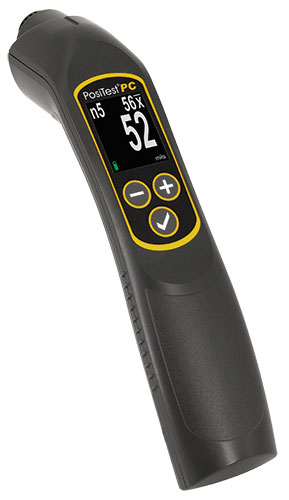

Positest PC Powder Checker With Probe

Select your Model

$2,675.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The PosiTest PC Powder Checker Thickness Gauge measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness.
  • Dedicated stand-alone unit is ready to measure right out of the box

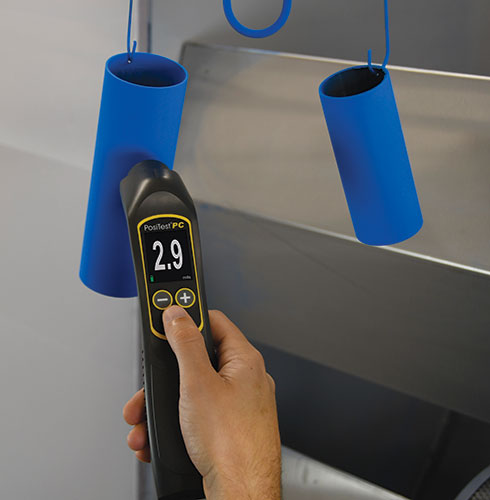

  • Up to 4x faster measurement speed, ideal for moving lines and swinging parts
  • Easy-to-read digital display with a simple, icon based menu
  • Hand-held, battery operated
  • Ergonomic and lightweight
  • No calibration adjustment required for most powders

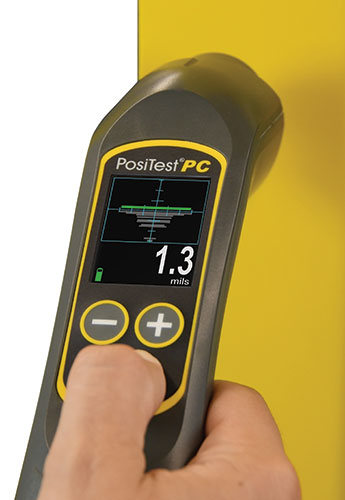

  • Target Grid simultaneously displays distance to the part and alignment, making measurements easy
  • RESET features instantly restores factory settings
  • Solvent, acid, oil, water and dust resistant, ideal for harsh powder coating environments
  • Hard-shell carrying case included
  • Replaceable screen protects the sensor
  • Two year warranty
  • Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
  • Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates
  • Conforms to ASTM D7378
  • No cable to risk disturbing the applied powder
  • Mils/microns switchable
  • High contrast color display
  • Adjustable display brightness for optimal visibility in any environment
  • Toggle sound On and Off
  • Uses alkaline or rechargeable batteries
  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software
  • Scan Mode continuously takes measurements - ideal for analyzing large areas
  • USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC
  • USB port for fast, simple connection to a PC and to supply continuous power
  • Software updates keep your instrument current

Technical Data Chart
Data
Range:0.8 - 4.0 mils (20 - 100 μm) (based on TGIC-Free polyester powder)
Resolution:0.1 mil (1 μm)
Accuracy:±0.2 mil (±5μm)
Measurement Time:1 - 3 seconds
Measurement Distance to Powder:0.75 inch (19 mm)
Measurement Area:0.08 inch (2 mm)
Size:9.5" x 2.5" x 2.0" (241 x 64 x 51 mm)
Weight:6.4 oz. (180 g) without batteries
ASTM
D7378

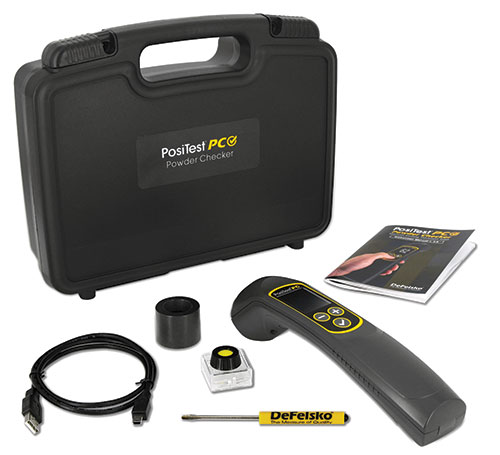

PosiTest PC Gauge with probe Zero Fixture
4 AAA batteries
Flat-head screwdriver
Instructions
Replacement probe screen
Protective lens shield
USB cable
Hard shell case
Two (2) year warranty
  • PosiTest PC Gauge with probe Zero Fixture
  • 4 AAA batteries
  • Flat-head screwdriver
  • Instructions
  • Replacement probe screen
  • Protective lens shield
  • USB cable
  • Hard shell case
  • Two (2) year warranty
