PosiTest HHD Accessories
Art. No.: 14806
PosiTest HHD Verifier

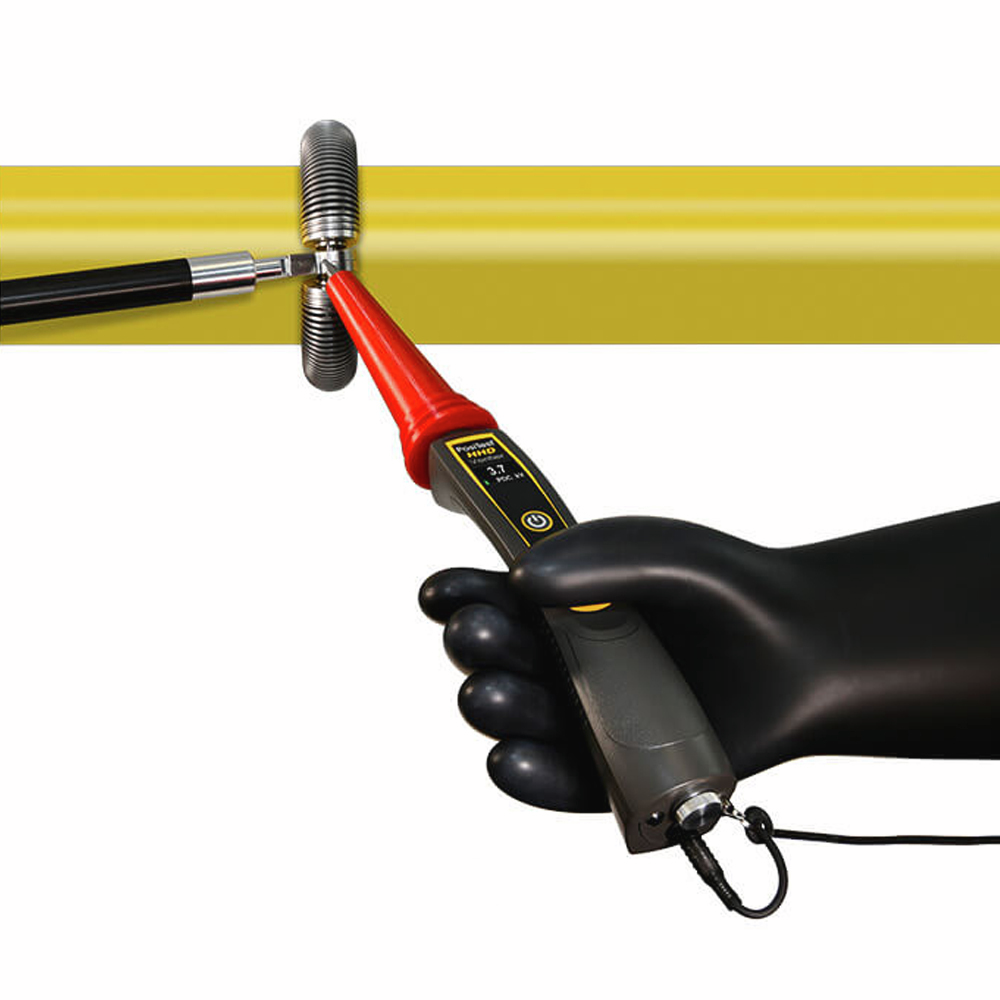

The PosiTest HHD Verifier is a standalone voltmeter (crest meter, jeep meter) for verifying the accuracy and operation of pulse or continuous type DC holiday detectors.
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- Ideal for field/laboratory verification of pulse or continuous DC holiday detectors
- Wide measurement range
- Simple two step operation
- Lightweight/Portable — requires no external power source
- Certificates of Calibration showing traceability to NIST included
- Two year warranty
- Made in USA
| Technical Data Chart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| ||||||||||||
Device comes complete with verifier
1.8 m (6') ground wire
(3) AAA batteries
Instructions
Long Form Certificate of Calibration traceable to NIST
Two year warranty
1.8 m (6') ground wire
(3) AAA batteries
Instructions
Long Form Certificate of Calibration traceable to NIST
Two year warranty
IMPORTANT: Before using the PosiTest HHD/HHD C Verifier, ensure that a proper ground is established between the holiday detector and the verifier.
- Ensure that the ground lead is plugged into the PosiTest HHD C Verifier and that the other end of the ground lead is connected to the ground lead of the high voltage holiday detector that is being verified.
- Turn the verifier on by pressing and releasing the power button. Once powered on, the verifier continuously monitors the voltage on the Probe Tip. The voltage displayed on the verifier should match the voltage displayed by the detector within the combined tolerance of both units.
- For DC holiday detectors such as the PosiTest HHD, the verifier probe tip can be left connected to an exposed electrode indefinitely with no concern. For best results, try to position the verifier probe perpendicular (90°) to the electrode on the holiday detector.
Rolling Spring Coil For 8" OD Pipe
Article No: 14809
Rolling Spring Coil For 4" OD Pipe
Article No: 14807
Rolling Spring Coil For 6" OD Pipe
Article No: 14808
Rolling Spring Coil For 12" OD Pipe
Article No: 14810
HHD Spring Connector
Article No: 14824
HHD Flat Brush 305 mm/12"
Article No: 14818
HHD Fan Brush 152 mm/6"
Article No: 14822
HHD Flat Brush 1219 mm/48"
Article No: 14821
HHD Flat Brush 203 mm/8"
Article No: 14817
HHD Conductive Rubber Paddle 102 mm/4"
Article No: 14823
HHD Flat Brush 914 mm/36"
Article No: 14820
HHD Flat Brush 152 mm/6"
Article No: 14816
Rolling Spring Coil For 20" OD Pipe
Article No: 14813
Rolling Spring Coil For 14" OD Pipe
Article No: 14811
HHD Flat Brush 610 mm/24"
Article No: 14819
Rolling Spring Coil For 16" OD Pipe
Article No: 14812
Rolling Spring Coil For 24" OD Pipe
Article No: 14814
HHD Flat Brush 51 mm/2"
Article No: 14815
