PosiTector® Replica Tape Readers

Art. No.: 13144

Positector RTR3D Tape Reader, Adv

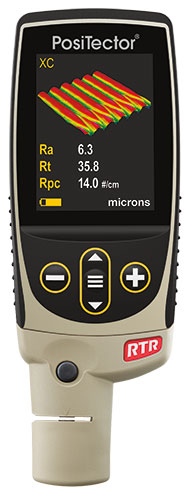

PosiTector RTR3D Advanced Gauge
Measures peak height (HL) and common 2D/3D profile parameters such as Ra, Rz, Sq, Spd, and more
Ideal for measuring on flat, curved, or irregular surfaces
Orient the 2D trace between horizontal, vertical, and diagonal (XY, YX)
Download high resolution Surface Data Files (.SDF) for analysis in the included PosiSoft or third-party software like drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Generates two dimensional (2D) and three dimensional (3D) thumbnail images. Ideal for inclusion into reports and confirming consistent blasting results.
Storage 250,000 readings in up to 1,000 batches
WiFi and Bluetooth technology
Live graphing of measurement data
Touchscreen keyboard for quickly renaming batches, adding notes, and more
SmartLink will NOT work with RTR3D models

Select your Model

Surface Profile Testers

$2,805.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The PosiTector Replica Tape Reader gages measure and record surface profile parameters using replica tape. For use with Testex™ Press-O-Film™ Replica Tape - Digital spring micrometer measures and records peak to valley surface profile height using replica tape.

Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
RESET feature instantly restores factory settings
Weatherpoof, dustproof, water-resistant, IP65-rated enclosure used for indoor/outdoor field or laboratory use
Ergonomic design with durable rubberized grip and shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe
On-gage help explains menu items at the touch of a button
PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
Mils/Microns switchable
Selectable display languages
Screen Capture, save 100 screen images for record keeping and review
Every stored measurement is date and time stamped
Up to 30% longer battery life
Auto rotating display with Flip Lock
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Conforms to national and international standards including ISO and ASTM
Instant-on feature quickly powers up the gage if recently powered down
Certificate of Calibration (containing Ra and Rt measurements) showing traceability to an accredited national laboratory included (Model RTR3D)
Certificate of Calibration showing traceability to PTB included (Long Form) (Model RTR H)
Minimizes inspector workload by reducing the number of replicas needed to ensure accuracy

Technical Data Chart

Data

RTRH
Range:		20-115 µm (0.8 - 4.5 mils)
Accuracy:		±5 µm (±0.2 mils)
Resolution:		1 µm (0.1 mil)
RTR3D
Measuring Range:	(H)	20 - 115 µm / 0.8 - 4.5 mils
	(Rt)	10 - 115 µm / 0.4 - 4.5 mils
Minimum Roughness (Ra):		2 µm / 0.08 mil
Accuracy:	(H)	+5 µm / +0.2 mil
	(Rt)*	+(5 µm + 5%) / +(0.2 mil+ 5%)
	(Ra)*	+(0.25 µm + 5%) / +(0.01 mil + 5%)
Anvil Pressure:		1.1 Newtons / 110 grams-force
Anvil Size:		Ø6.25 mm / Ø0.25 inch
Field of View:		3.8 x 3.8 mm / 0.149 x 0.149 inch
Lateral Sampling:		3.7 µm 0.145 mil
Vertical Resolution:		100 nm - 2D/3D 10 nm - SDF 3.93 µin - 2D/3D 0.393 µin - SDF
Resolution:		0.1 µm 0.01 mil
2D Parameters - 'R' - Profile Parameters:		R_a Roughness Average R_q Root mean square roughness R_p Maximum Profile Peak Height R_v Maximum Profile Valley Depth R_t Total Profile Height R_z Average Maximum Height of the Profile R_pc Peak Count per unit length
3D Parameters - 'S' - Height/Amplitude:		H Average maximum peak-to-valley height S_a Average roughness S_q Root mean square roughness S_z Maximum area peak-to-valley height S_p Maximum area peak height S_v Maximum valley depth S_pd Areal peak density
* When measured using Optical Grade X-Coarse Replica Tape

We need your approval

This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.

Always accept YouTube

Cookie Banner powered by

consentmanager.net

Positector Advanced Gauge Body
One roll of Optical Grade X-Coarse tape
Stainless steel burnishing tool
Burnishing ball
5 cleaning cards
Check shim(s)
Replica tape holder
Microfiber cleaning cloth
Surface cleaning putty
Protective rubber holster with belt clip
Wrist strap
(3) AAA alkaline batteries
Instructions
Nylon carrying case with shoulder strap
Protective lens shield
Long Form Certificate of Calibration with Ra/Rt values & traceability
USB cable
PosiSoft Software
Two (2) year warranty on body and probe

Prepare

Preparation of both the surface to be tested and the PosiTector RTR H are necessary before performing the test.
To prepare surface: Use cleaning putty to remove dust, debris, or residual blast media from the measurement site by firmly pressing the putty onto surface to be tested using your fingers and remove
To prepare the PosiTector:
Clean anvils using included cleaning card. Swipe card through opening a few times while firmly pressing both probe buttons to remove dust
Zero probe and verify accuracy with included shim
Ensure correct grade of replica tape is displayed in upper left hand corner of LCD

Burnish

Testex Press-O-Film™ replica tape consists of a layer of compressible foam affixed to an incompressible polyester film of highly uniform thickness. When pressed against a surface, the foam forms an impression, or reverse replica, of the surface.
RTR H
- Select appropriate grade of replica tape based on target profile
- Pull a single adhesive-backed replica tape free of its release paper and apply to blasted surface
- Firmly compress replica film using the rounded end of the included stainless steel burnishing tool. Apply sufficient pressure in a circular and x-y rubbing motion for 30-60 seconds to fully compress all parts of the film. In general, too much compression is safer than too little.
- When complete, remove replica tape from surface
RTR3D
- For best results when acquiring 2D/3D parameters and images from the PosiTector RTR 3D, it is recommended to use the supplied burnishing ball instead of the stainless-steel burnishing tool.
- Adhere the replica tape to the surface to be burnished.
- Holding the ball in two hands using your index fingers and thumbs, place the ball on the replica tape.
- Gently roll the ball over the tape while viewing the burnished tape through the clear ball. Adjust the force applied to the ball until a replica of the surface begins to appear on the tape.
- Continue to roll the ball until the tape is completely burnished (at least 30 seconds). measure with PosiTector RTR3

Measure

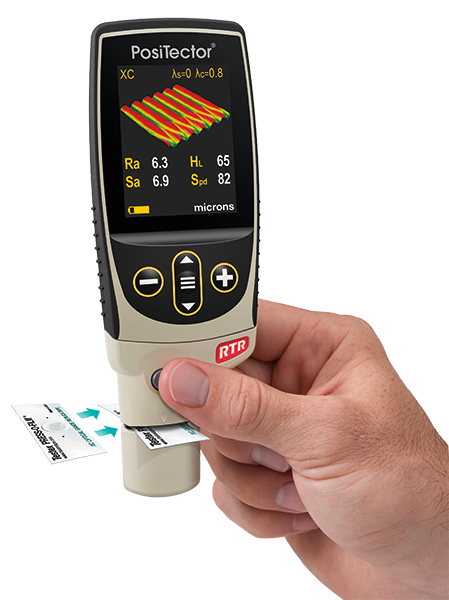

Insert the burnished replica tape into the measurement opening. Ensure the tape is properly positioned so that the burnished region is centered within the opening in the probe with the adhesive (sticky) side down.
To position the tape, move the Testex Press-O-Film‚ replica tape to the back of the probe and align the two dots (printed on replica tape) with arrows on both sides of the measurement opening.
Once positioned, firmly press both probe buttons simultaneously and hold until the PosiTector beeps and the measurement is displayed.
The gage automatically subtracts the thickness of the polyester substrate from all measurements. (RTR H)
RTR3D - After placing the compressed tape (replica) into the PosiTector RTR 3D a light-intensity versus thickness algorithm is used to produce a three dimensional (3D) image of the replicated surface.
RTR H - Placing the compressed tape (replica) into the PosiTector RTR H gives a measure of the average maximum peak-to-valley height of the surface roughness profile.
