PosiTector 6000 Advanced Coating Thickness Gauges

Art. No.: 5668

Positector 6000 Pro NKS3

PosiTector Advanced Gauge
For measurement on non-ferrous substrates
High-Range Cabled Probe
0 - 500 mils (0 - 13 mm)

Select your Model

Positector Model

Positector Probe

$1,535.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Defelsko PosiTector 6000 Advanced Gage is a Dry Film Coating Thickness Gage, they are ready to measure, with no calibration adjustment required for most applications.
Storage of 250,000 readings in up to 1,000 batches and sub-batches
Live graphing of measurement data
Prompted Batch Mode, create pre-defined batches with on-screen text and image prompts for each reading
3 Scan Modes increase measurement speed to 180+ readings per minute
Normal - take continuous readings without lifting the probe
Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
Touchscreen keyboard for quickly renaming batches, adding notes, and more
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft software reports
SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches
Fast measurement speed, 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
Ready to measure - no adjustment required for most applications
2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
Flashing display, ideal in a noisy environment
RESET feature instantly restores factory settings
Weatherproof, dustproof, and water-resistant, IP65-rated enclosure
Ergonomic design with durable rubberized grip
Wear-resistant probe tip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe
Certificate of Calibration showing traceability to NIST or PTB included
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for precision applications
Conforms to national and international standards including ISO and ASTM

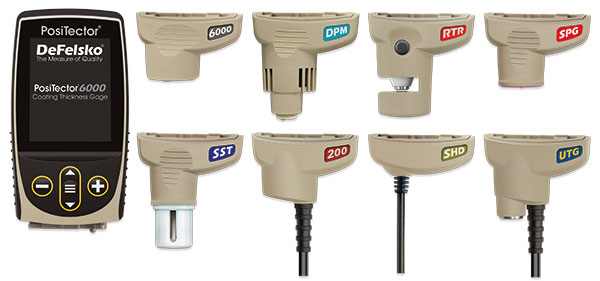

Defelsko PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors
Selectable display languages
Auto rotating display with Flip Lock
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
Mils/Microns/mm switchable
Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
Screen Capture - save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Instant-on feature quickly powers up the gage if recently powered down
Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Every stored measurement is date and time stamped
Software Updates and solutions for viewing, analyzing & reporting data

Thickness Measurement

Measuring Range Mils / µm

0 - 500 mil 0 - 13000 µm

Probe

separate

Substrate

Non-Ferrous

Measuring Range

0 - 500 mil

Measuring Range

0 - 13000 µm

Accuracy

0-500 mill: ±(1 mil +3 %) 0-13 mm: ±(20 µm +3 %)

Technical Specifications

Full Scale Calibration Range Mils/ µm

Technical Data Chart

Data

F Probes:	For ferrous metals such as steel and cast iron (F, FS, FXS, FRS, F0S, F45S, F90S, F90ES, FT, FTS, FTRS, FHXS, FKS, FJS, FLS)
N Probes:	For non-ferrous metals such as aluminum, copper, titanium, etc. (N, NS, NRS, NAS, N0S, N45S, N90S, NKS)
FN Probes:	For all metal substrates, automatically recognizes the substrate and takes a measurement (FN, FNS, FNRS, FNDS, FNTS, FNGS)
Size:	5” x 2.6” x 1” (127 x 66 x 25.4 mm) gage body, no probe
Weight:	4.9 oz. (137 g) without batteries
Standards:	ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/ D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others

Probe Options
Probe Model	Substrates	Probe Style	Measuring Range
F	Ferrous	Integral	0 - 60 mils (0 - 1500 µm)
FS	Ferrous	Regular Cabled	0 - 60 mils (0 - 1500 µm)
FXS Xtreme™	Ferrous	Regular Cabled	0 - 80 mils (0 - 2000 µm)
FRS	Ferrous	90° Regular Cabled	0 - 60 mils (0 - 1500 µm)
F0S	Ferrous	0° Microprobe	0 - 45 mils (0 - 1150 µm)
F45S	Ferrous	45° Microprobe	0 - 45 mils (0 - 1150 µm)
F90S	Ferrous	90° Microprobe	0 - 45 mils (0 - 1150 µm)
F90ES	Ferrous	90° Extended Microprobe	0 - 45 mils (0 - 1150 µm)
FT	Ferrous	Integral	0 - 250 mils (0 - 6 mm)
FTS	Ferrous	High-Range Cabled	0 - 250 mils (0 - 6 mm)
FTRS	Ferrous	High-Range Cabled	0 - 250 mils (0 - 6 mm)
FHXS Xtreme™	Ferrous	High-Range Cabled	0 - 400 mils (0 - 10000 µm)
FKS	Ferrous	High-Range Cabled	0 - 500 mils (0 - 13 mm)
FJS	Ferrous	High-Range Cabled	0 - 1.0 inch (0 - 24 mm)
FLS	Ferrous	High-Range Cabled	0 - 1.5 inches (0 - 38 mm)
N	Non-ferrous	Integral	0 - 60 mils (0 - 1500 µm)
NS	Non-ferrous	Regular Cabled	0 - 60 mils (0 - 1500 µm)
NRS	Non-ferrous	90° Regular Cabled	0 - 60 mils (0 - 1500 µm)
NAS	Non-ferrous	Regular Cabled	0 - 25 mils (0 - 625 µm)
N0S	Non-ferrous	0° Microprobe	0 - 25 mils (0 - 625 µm)
N45S	Non-ferrous	45° Microprobe	0 - 25 mils (0 - 625 µm)
N90S	Non-ferrous	90° Microprobe	0 - 25 mils (0 - 625 µm)
NKS	Non-ferrous	High-Range Cabled	0 - 500 mils (0 - 13 mm)
FN	Ferrous / Non-ferrous	Integral	0 - 60 mils (0 - 1500 µm)
FNS	Ferrous / Non-ferrous	Regular Cabled	0 - 60 mils (0 - 1500 µm)
FNRS	Ferrous / Non-ferrous	90° Regular Cabled	0 - 60 mils (0 - 1500 µm)
FNDS (duplex)	Ferrous / Non-ferrous	Regular Cabled	0 - 60 mils (0 - 1500 µm)
FNTS	Ferrous / Non-ferrous	High-Range Cabled	0 - 250 mils (0 - 6 mm)
FNGS	Ferrous / Non-ferrous	High-Range Cabled	0 - 2.5 inches (0 - 63.5 mm)

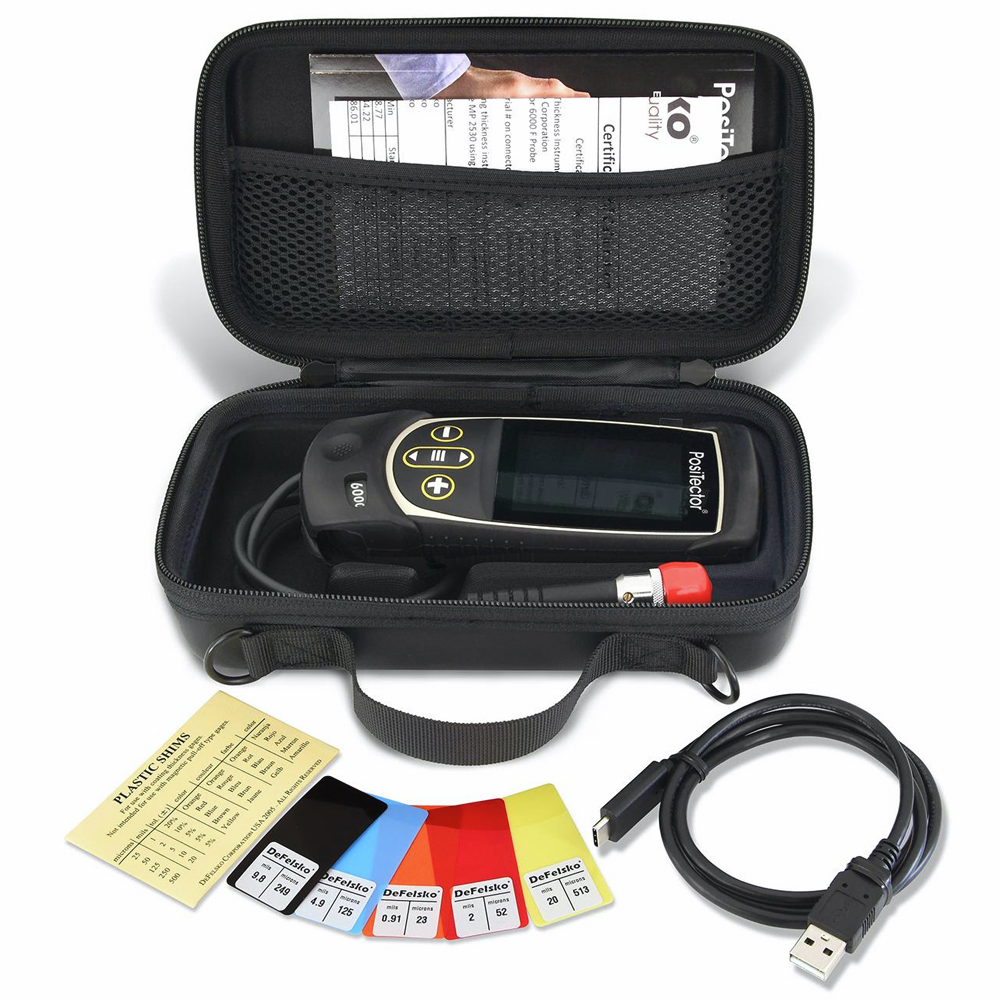

Standard gage
Probe NKS, separate (5691)
Plastic shims
Wrist strap
USB cable
3 AAA batteries
Certificate
Manual
Rubber holster with belt clip
Nylon carrying with shoulder strap

Precision plastic shims
Protective rubber holster with belt clip
Wrist strap
3 AAA alkaline batteries
Instructions
Nylon carrying case with shoulder strap
Protective lens shield
Long Form Certificate of Calibration traceable to NIST or PTB (depending on probe type)
USB cable
Two (2) year warranty

Remove the protective plastic cap (if supplied) from probe.
Power-up Gage by pressing the center navigation button.
Place the probe FLAT on the surface to be measured. HOLD STEADY. When a valid measurement is calculated, the Gage BEEPS twice and the measurement is displayed.
Lift probe AT LEAST 2 INCHES (5cm) from the surface between measurements - OR - leave probe on the surface in the same location for continuous measurements.
If memory is ON while continuous measurements are being taken, only the last value on the display (when the probe is lifted) is stored into memory.
