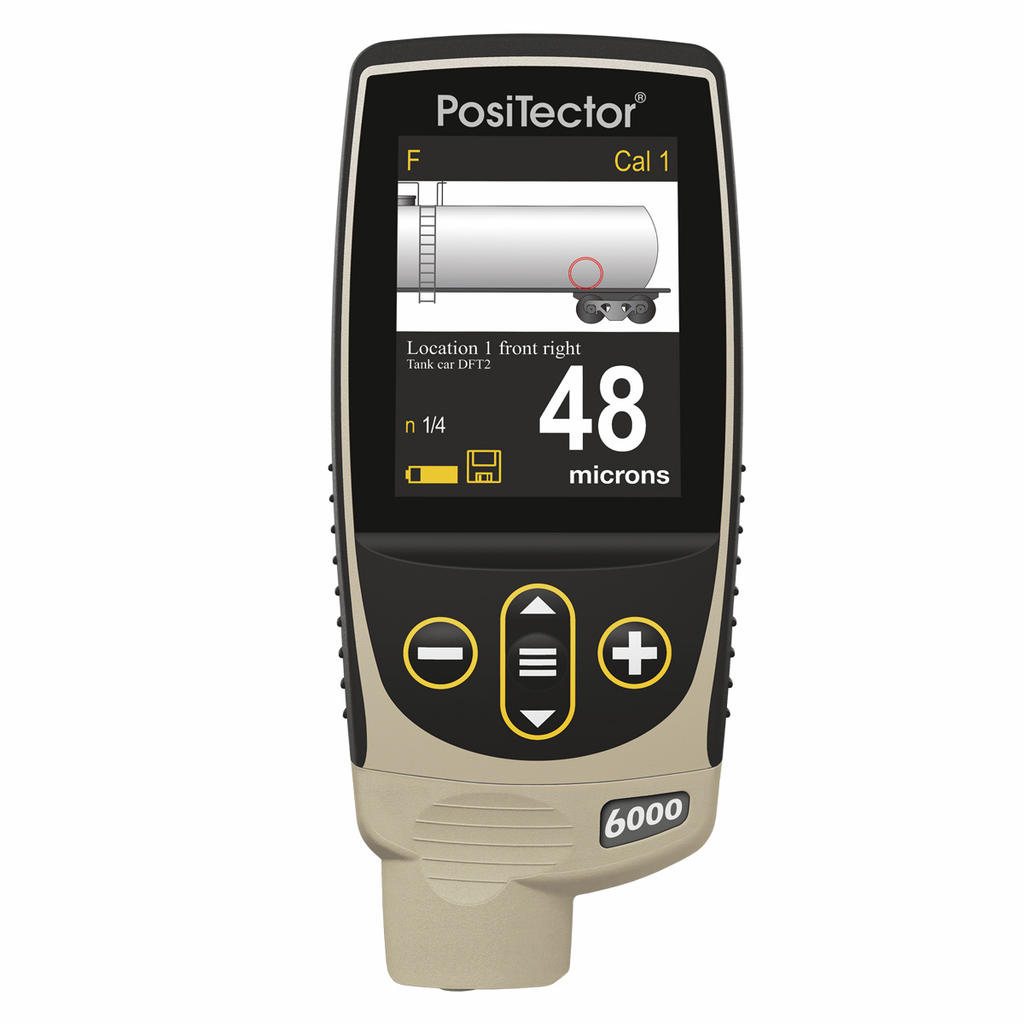

PosiTector 6000 Advanced Coating Thickness Gauges
Art. No.: 5612
Positector 6000 Pro FN3
DFT Gauge w/ built-in Fe/NFe probe - cable probes as accessories
- PosiTector Advanced Gauge
- For measurement on ferrous and non-ferrous substrates
- Built-in Probe
- 0 - 60 mils (0 - 1500 µm)
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- The Defelsko PosiTector 6000 Advanced Gage is a Dry Film Coating Thickness Gage, they are ready to measure, with no calibration adjustment required for most applications.
- Storage of 250,000 readings in up to 1,000 batches and sub-batches
- Live graphing of measurement data
- Prompted Batch Mode, create pre-defined batches with on-screen text and image prompts for each reading
- 3 Scan Modes increase measurement speed to 180+ readings per minute
- Normal - take continuous readings without lifting the probe
- Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
- Touchscreen keyboard for quickly renaming batches, adding notes, and more
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft software reports
- SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches
- Fast measurement speed, 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
- Ready to measure - no adjustment required for most applications
- 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- On-gage help explains menu items at the touch of a button
- Flashing display, ideal in a noisy environment
- RESET feature instantly restores factory settings
- Weatherproof, dustproof, and water-resistant, IP65-rated enclosure
- Ergonomic design with durable rubberized grip
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
- Certificate of Calibration showing traceability to NIST or PTB included
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for precision applications
- Conforms to national and international standards including ISO and ASTM
- Defelsko PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
- Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors
- Selectable display languages
- Auto rotating display with Flip Lock
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Mils/Microns/mm switchable
- Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
- Screen Capture - save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Instant-on feature quickly powers up the gage if recently powered down
- Up to 30% longer battery life
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Every stored measurement is date and time stamped
- Software Updates and solutions for viewing, analyzing & reporting data
| Thickness Measurement | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring Range Mils / µm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Probe | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Substrate | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Measuring Range | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Measuring Range | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Accuracy | 0-2 mill: ±(0.05 mil +1 %) > 2 mill: ±(0.1 mil +1 %) 0-50 µm: ±(1 µm +1 %) > 50 µm: ±(2 µm +1 %) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Full Scale Calibration Range Mils/ µm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical Data Chart | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions: L x W x H | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions: L x W x H | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ASTM | E376 B499 D1186 D1400 D7091 |
|---|---|
| ISO | 2178 2360 2808 |
| SSPC | SSPC PA2 |
Standard gage
Probe FN, built-in (5625)
Plastic shims
Wrist strap
USB cable
3 AAA batteries
Certificate
Manual
Rubber holster with belt clip
Nylon carrying with shoulder strap
Probe FN, built-in (5625)
Plastic shims
Wrist strap
USB cable
3 AAA batteries
Certificate
Manual
Rubber holster with belt clip
Nylon carrying with shoulder strap
- Precision plastic shims
- Protective rubber holster with belt clip
- Wrist strap
- 3 AAA alkaline batteries
- Instructions
- Nylon carrying case with shoulder strap
- Protective lens shield
- Long Form Certificate of Calibration traceable to NIST or PTB (depending on probe type)
- USB cable
- Two (2) year warranty
- Remove the protective plastic cap (if supplied) from probe.
- Power-up Gage by pressing the center navigation button.
- Place the probe FLAT on the surface to be measured. HOLD STEADY. When a valid measurement is calculated, the Gage BEEPS twice and the measurement is displayed.
- Lift probe AT LEAST 2 INCHES (5cm) from the surface between measurements - OR - leave probe on the surface in the same location for continuous measurements.
- If memory is ON while continuous measurements are being taken, only the last value on the display (when the probe is lifted) is stored into memory.
