PosiTector6000 Pro - WiFi and advanced statistics

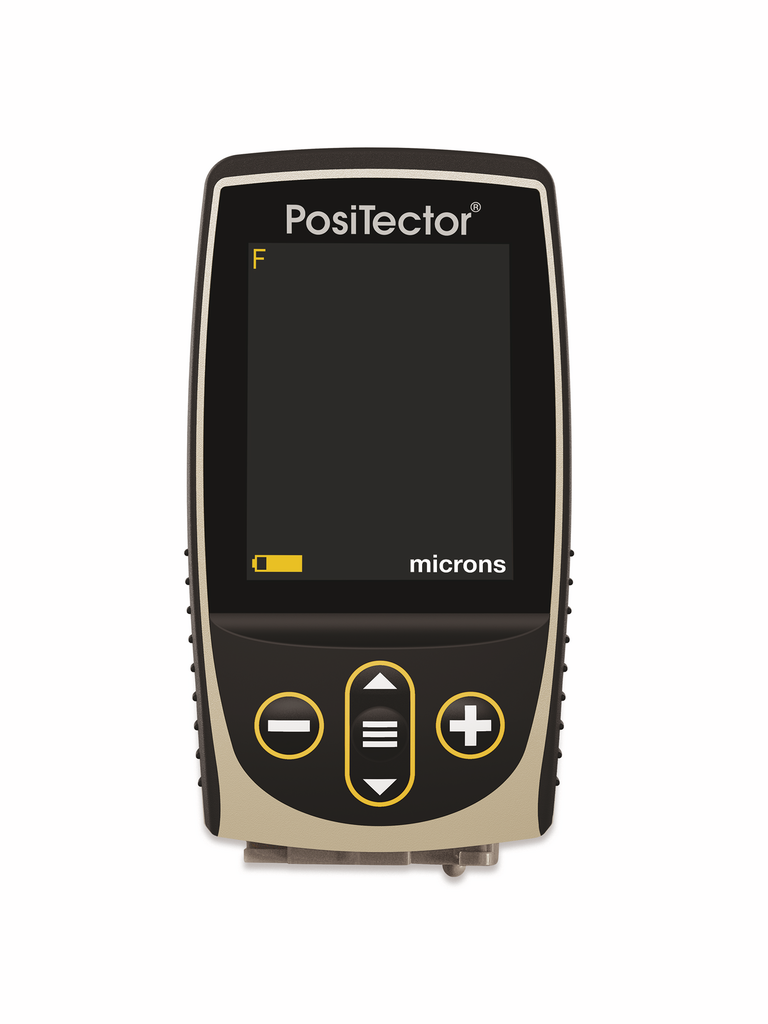

Positector 6000 Pro Body
DFT Gauge w/ sensors as optional accessories
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
The PosiTector 6000 film gauge series measures coating thickness on any metal. These rugged, fully electronic gages utilize the magnetic principle to measure non-magnetic coatings on ferrous (F) substrates, and the eddy current principle to measure non-conductive coatings on non-ferrous (NF) substrates.
- Multiple calibration adjustment options – 1 or 2 point of known thickness
- Flash display confirms a reading was taken
- Hi contrast, color flip display allows for right-side-up viewing no matter how one is looking at the gage
- Solvent, acid, oil, and water resistant
- Mils/microns switchable
- Average ZERO feature; ideal for rough or curved substrates
- Average, min/max, std. dev., number of readings
- Hi-Lo feature audible and visual alerts when measurement exceeds limits
- Storage up to of 100,000 readings in up to 1000 batches
- USB port and Bluetooth® for PC connection
- Supplied with PosiSoft Windows® statistical analysis software and USB cable
- Multiple stored calibration adjustments for measuring on a variety of substrates
- Scan mode – takes continuous readings without lifting the probe
- Onscreen help, real time graphing
- SSPC PA2 feature determines if film thickness over a large area conforms to user-specified min/max levels
| Thickness Measurement | |
|---|---|
| Measuring Range Mils / µm | |
| Technical Specifications | |
| Full Scale Calibration Range Mils/ µm | |
| General | |
| Weight | |
| Weight | |
| Dimensions: L x W x H | |
| Dimensions: L x W x H | |
Plastic shims
Wrist strap
USB cable
3 AAA batteries
Certificate
Manual
Rubber holster with belt clip
Nylon carrying with shoulder strap

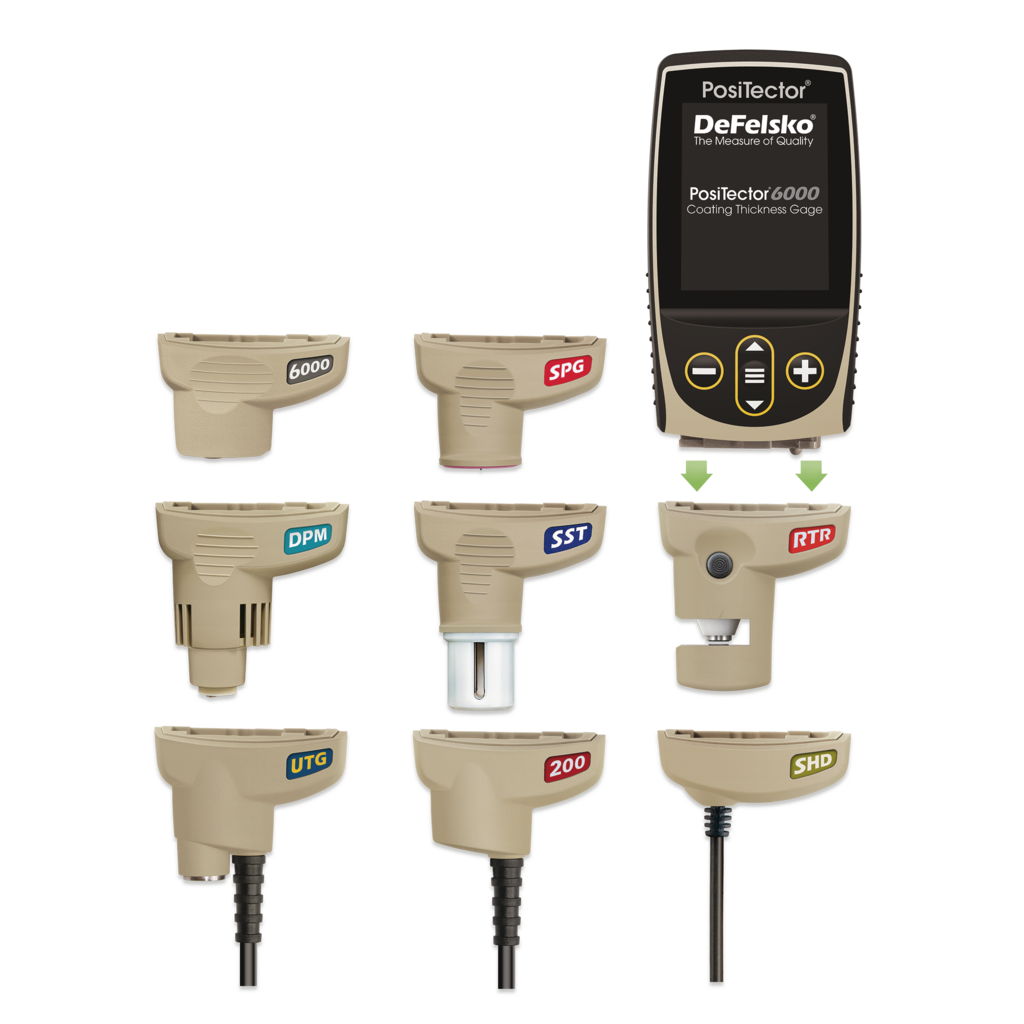

Probe FT, Built-in
Article No: 5618
Probe NS, Seperate
Article No: 5619
Probe FS, Seperate
Article No: 5620
Probe FKS, Seperate
Article No: 5621
Probe F0S, 0° Microprobe, 0-45 mil
Article No: 5623
Probe F45S, 45° Microprobe, 0-45 mil
Article No: 5624
Probe FN, Built-in
Article No: 5625
Probe F, Integral, 0-60 mil
Article No: 5680
Probe FRS, 90° Cable, 0-60 mil
Article No: 5682
Probe F90S, 90° Microprobe, 0-45 mil
Article No: 5683
Probe FTS, High-Range Cable, 0-2
Article No: 5684
Probe N, Regular Integral, 0-60 mil
Article No: 5685
Probe NRS, Right angle
Article No: 5686
Probe NAS, Regular Cable, 0-25 mil
Article No: 5687
Probe N0S, 0° Microprobe, 0-25 mil
Article No: 5688
Probe N45S, 45° Microprobe, 0-25 mil
Article No: 5689
Probe N90S, 90° Microprobe, 0-25 mil
Article No: 5690
Probe NKS, High-Range Cable, 0-500 mil
Article No: 5691
Probe FNS, Regular Cable, 0-60 mil
Article No: 5693
Probe FNRS, 90° Cable, 0-60 mil
Article No: 5694
Probe FNTS, High-Range Cable, 0-250 mil
Article No: 5695
Precision Shim, 0.50 mil/12.7 µm
Paint Thickness Gauge Calibration Standard
Article No: 7100
Precision Shim, 0.90 mil/22.9 µm
Paint Thickness Gauge Calibration Standard
Article No: 7101
Precision Shim, 2.00 mil/50.8 µm
Paint Thickness Gauge Calibration Standard
Article No: 7102
Precision Shim, 4.75 mil/121 µm
Paint Thickness Gauge Calibration Standard
Article No: 7105
Precision Shim, 6.75 mil/172 µm
Paint Thickness Gauge Calibration Standard
Article No: 7106
Precision Shim, 10.0 mil/254 µm
Paint Thickness Gauge Calibration Standard
Article No: 7110
Precision Shim, 20.0 mil/508 µm
Paint Thickness Gauge Calibration Standard
Article No: 7120
Phenolic Standard, 40 mil/1016 µm
Paint Thickness Gauge Calibration Standard
Article No: 7140
