PosiTector 6000 Standard

Name: Positector 6000 Body
Brand: DeFelsko
SKU: 5627
Price: 335 USD
Availability: InStock

Art. No.: 5627

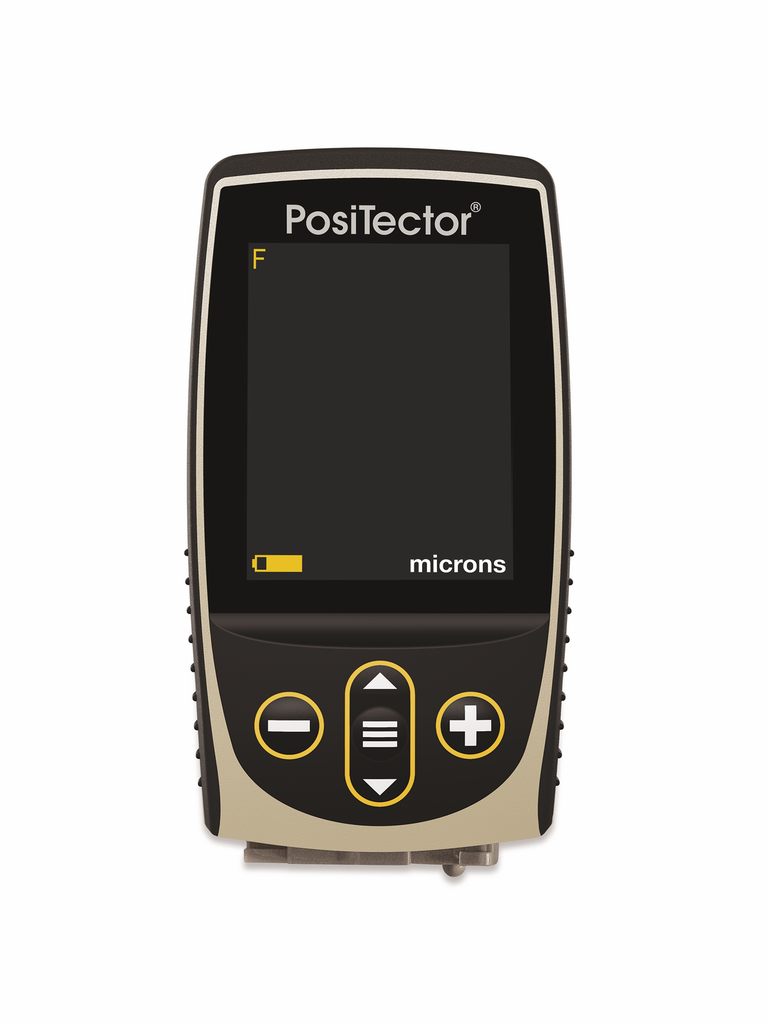

Positector 6000 Body
DFT Gauge w/ sensors as optional accessories

Select your Model

Coating Thickness Gauges

$335.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The PosiTector 6000 film gauge series measures coating thickness on any metal. These rugged, fully electronic gages utilize the magnetic principle to measure non-magnetic coatings on ferrous (F) substrates, and the eddy current principle to measure non-conductive coatings on non-ferrous (NF) substrates.

Multiple calibration adjustment options – 1 or 2 point of known thickness
Flash display confirms a reading was taken
Hi contrast, monochrome flip display allows for right-side-up viewing no matter how one is looking at the gage
Solvent, acid, oil, and water resistant
Mils/microns switchable
Average ZERO feature; ideal for rough or curved substrates
Average, min/max, std. dev., number of readings
Hi-Lo feature audible and visual alerts when measurement exceeds limits
Storage up to 250 readings
USB port for PC connection
Optional PosiSoft software and cable

Thickness Measurement
Measuring Range Mils / µm
Technical Specifications
Full Scale Calibration Range Mils/ µm	-
General
Weight	0.14 kg
Weight	0.31 lb
Dimensions: L x W x H	13.7 x 6.1 x 2.8 cm
Dimensions: L x W x H	5.4 x 2.4 x 1.1 in

ASTM	E376 B499 D1186 D1400 D7091
ISO	2178 2360 2808

Standard gage
Plastic shims
Wrist strap
3 AAA batteries
Certificate
Manual
Rubber holster with belt clip
Nylon carrying with shoulder strap

Positector 6000 F, N, FN, FT Probe Dimensions

Probe FT, Integral, 0-250 mil

Article No: 5618

Price: $525.00

Positector 6000 FS, NS, FNS, NAS, FTS Probe Dimensions

Probe NS, Regular Cable, 0-60 mil

Article No: 5619

Price: $600.00

Probe FS, Regular Cable, 0-60 mil

Article No: 5620

Price: $525.00

Positector 6000 FNTS, FKS, NKS Probe Dimensions

Probe FKS, High-Range Cable, 0-500 mil

Article No: 5621

Price: $700.00

Positector 6000 F0S, N0S Probe Dimensions

Probe F0S, 0°, micro-probe

Article No: 5623

Price: $815.00

Positector 6000 F45S, N45S Probe Dimensions

Probe F45S, 45°, micro-probe

Article No: 5624

Price: $815.00

Probe FN, Integral, 0-60 mil

Article No: 5625

Price: $815.00

Probe F, Built-in

Article No: 5680

Price: $405.00

Positector 6000 FRS, NRS, FNRS Probe Dimensions

Probe FRS, 90° Cable, 0-60 mil

Article No: 5682

Price: $580.00

Positector 6000 F90S, N90S Probe Dimensions

Probe F90S, 90°, micro-probe

Article No: 5683

Price: $815.00

Probe FTS, Seperate

Article No: 5684

Price: $635.00

Probe N, Built-in

Article No: 5685

Price: $485.00

Probe NRS, Right angle

Article No: 5686

Price: $670.00

Probe NAS, Seperate

Article No: 5687

Price: $815.00

Probe N0S, 0°, micro probe

Article No: 5688

Price: $815.00

Probe N45S, 45°, micro-probe

Article No: 5689

Price: $815.00

Probe N90S, 90°, micro-probe

Article No: 5690

Price: $815.00

Probe NKS, Seperate

Article No: 5691

Price: $995.00

Probe FNS, Seperate

Article No: 5693

Price: $940.00

Probe FNRS, Right angle

Article No: 5694

Price: $995.00

Probe FNTS, Seperate

Article No: 5695

Price: $1,050.00
