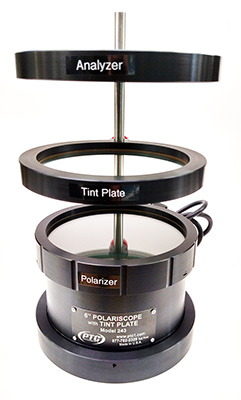

Model 243 Polariscope

Art. No.: 11978

Polariscope 6" With Tint Plate

The Model 243 Polariscopes are essential tools for determining strain patterns developed during fabrication, manufacture, or use. As polarized light travels through strained glass or plastic, it undergoes a retardation proportional to the amount of stress. A polariscope is an instrument which can be used to qualitatively view this retardation.

Select your Model

$1,499.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The instrument has a generous 5.75" diameter polarizer
  • The unit plugs into standard 115-125 volt wall sockets.
  • A voltage convertor for 220 volt is available.
  • It can be used to check production items; or in Quality Control to check incoming materials and parts.
  • They are used to inspect glass welds and bends for strains or flaws. The degree of annealing in fabricated glassware can be shown using the Model 243.

Technical Data Chart
Data
Power:115-125V AC or DC, 7 ft. cord
Working Space:Up to 6 vertical inches
Field Diameter:5-3/4 in. (14.6 cm)
Filters:Glass protected Polaroid, type HN 32
Polarizer:90° adjustable rotation
Weight:8 lbs (3.6 kg)
Shipping Weight:11 lbs (5.0 kg)
Finish:Black Enamel
Polariscope
Tint plate
