Quick Blades

Art. No.: 12287

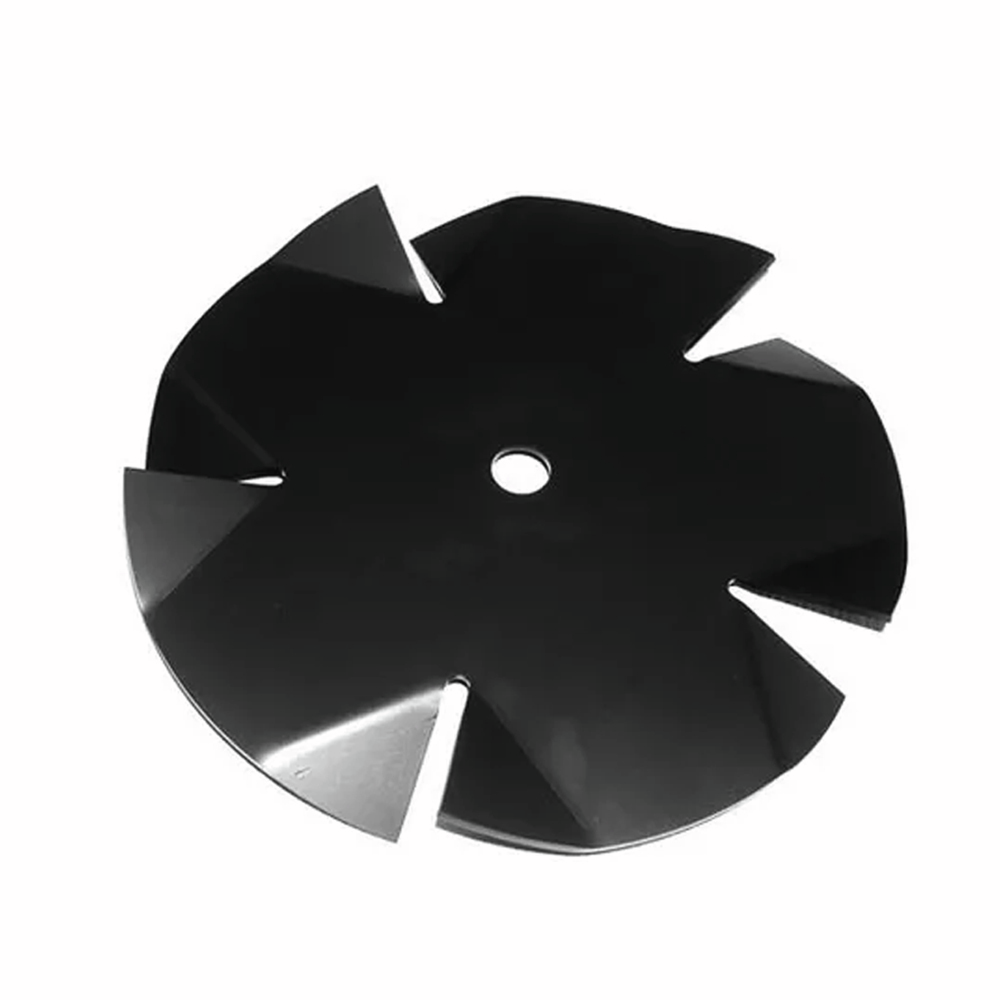

PMP Quick Blade, 12" Dia.

PMP series - 12" Diameter
Impellers primarily for blending, mixing and general agitation
Designed similar to a fan blade so that your batch is pumped throughout the tank with minimal shear
General agitation and/or blending of liquids

Select your Model

Dispersion and Lab Mixers

$169.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Precision laser cutting and precise forming, you can expect a quality, well balanced blade every time
The standard material of construction is type 304 stainless steel. (If you require abrasion resistant blades, order the tungsten carbide coated teeth blade. If you need an easily cleaned blade, order the Teflon® coating.)
Quick Blades are produced using state of the art, computer controlled machinery in an ISO9001:2000 certified shop.
Three types of blades available:
- Quick Blades HSX Series - The serrated teeth have more cutting surfaces to help speed up the dispersion process of high solids batches
- Quick Blades HSXP Series - The HSXP series Turbo Pump blade has the same serrated teeth as the HSX series and also includes alternating fins in the center of the impeller to help pump the material through the blade.
- Quick Blades PMP Series - The PMP series impellers are designed primarily for blending, mixing and general agitation.

Technical Data Chart

Data

Series	Part No.	Blade Diameter	Center Hole
HSX	12277	1.625”	0.5
	12278	2”	0.5
	12280	3”	0.5
HSXP	12281	2”	0.5
	12283	3”	0.5
	12284	4”	0.5
PMP	12285	3”	0.5
	12286	4”	0.5
	12287	12”	0.625
Larger blade diameters from 16” to 36” available Blades with different size center holes available. HSXP Series 2" diameter blades require a special 7/8" dia. adapter for use. Please call for pricing.

PMP Quick Blade, 12" Dia.

SS Stirrer Shaft 12" x 5/16"Dia

Article No: 12499

Price: $44.00

SS Stirrer Shaft 9" x 5/16"Dia

Article No: 12500

Price: $38.00

SS Stirrer Shaft 12" x 3/8"Dia

Article No: 12501

Price: $48.00

SS Stirrer Shaft 15" x 3/8"Dia

Article No: 12502

Price: $55.00

SS Stirrer Shaft 18" x 3/8"Dia

Article No: 12503

Price: $64.00

SS Stirrer Shaft 24" x 3/8"Dia

Article No: 12504

Price: $69.00

SS Stirrer Shaft 9" x 3/8"Dia

Article No: 12507

Price: $43.00

SS Stirrer Shaft 12" x 1/2"Dia

Article No: 12508

Price: $52.00

SS Stirrer Shaft 18" x 1/2"Dia

Article No: 12509

Price: $53.00

SS Stirrer Shaft 24" x 1/2"Dia

Article No: 12510

Price: $78.00

SS Stirrer Shaft 30" x 1/2"Dia

Article No: 12511

Price: $89.00

SS Stirrer Shaft 34" x 5/8"Dia

Article No: 12513

Price: $110.00

SS Stirrer Shaft 40" x 5/8"Dia

Article No: 12514

Price: $122.00

SS Stirrer Shaft 40" X 3/4"Dia

Article No: 12516

Price: $196.00

SS Stirrer Shaft 15" x 5/16" Dia

Article No: 14924

Price: $48.00

PMP Quick Blade, 4" Dia.

Article No: 12286

Price: $74.00

HSXP Turbo Pump Quick Blade, 4" Dia.

Article No: 12284

Price: $120.00

HSXP Turbo Pump Quick Blade, 3" Dia.

Article No: 12283

Price: $113.00

HSXP Turbo Pump Quick Blade, 2" Dia.

Article No: 12281

Price: $113.00

HSX Turbo Quick Blade, 2" Dia.

Article No: 12278

Price: $78.00

HSX Turbo Quick Blade, 1.6" Dia.

Article No: 12277

Price: $78.00

HSX Turbo Quick Blade, 3" Dia.

Article No: 12280

Price: $80.00

PMP Quick Blade, 3" Dia.

Article No: 12285

Price: $68.00
