TQC Persoz Pendulum

TQC Pendulum Hardness Tester Accessories

Art. No.: 11779

Persoz Pendulum Certified

Select your Model

$595.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

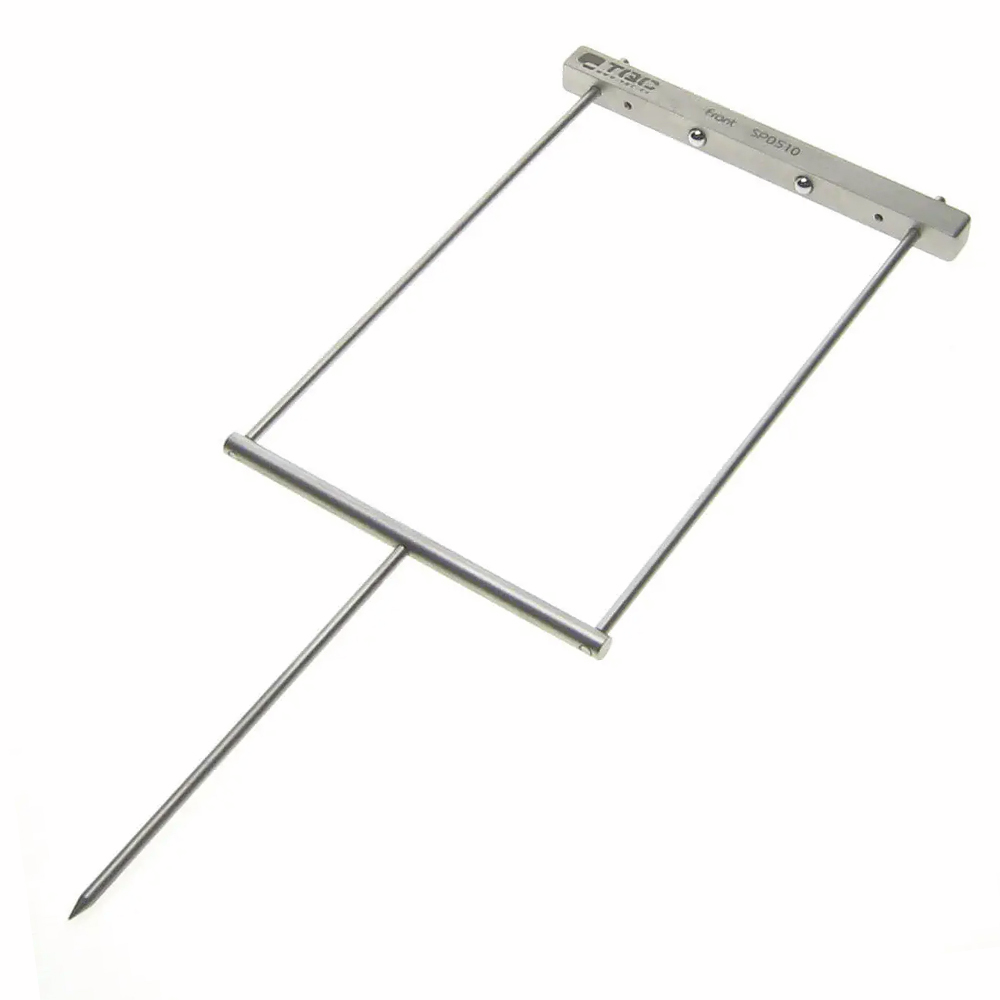

The Persoz pendulum is made from an open framework with an upper cross-bar that has two stainless steel balls inset to form a fulcrum. It also has a lower cross-bar that forms the pointer. The damping time, in seconds, for the oscillation amplitude of the Persoz pendulum to decrease from 12° to 4° is measured.

Technical Data Chart
Data
Models:Persoz Method (11779)König Method (11778(
Product Description:Stainless steel pendulumStainless steel pendulum with adjustable weight
Weight:500 gram200 grams
Pivot Balls:2, made of tungsten carbide,
diameter 8 mm		2, made of tungsten carbide,
diameter 5 mm
Distance Between Pivot Balls:50 mm30 mm
Oscillation Period:1 second1.4 seconds
Deflections:From 12° to 4°From 6° to 3°
Damping Time (on glass):Minimum 430 ±15 seconds250 ±10 seconds
Counting Method:Oscillations = timeOscillations and time
Number of Oscillations:-179 ±7
Min. Sample Dimensions:50 x 71 x * mm50 x 55 x * mm
Max. Sample Dimensions:105 x 200 x 11 mm 105 x 300 x 8.3 mm
*The minimal thickness is not defined. The sample needs to be rigid! For thin samples a fill plate is required to allow the sample to be in contact with the measurement plain.
