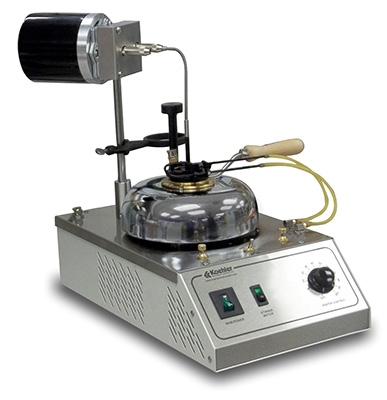

Pensky-Martens Closed Cup Flash Point Tester
Art. No.:
Select your Model
- Used for the flash point determination of fuels, lubricating oils, liquids containing suspended solids and liquids that tend to form a surface film during testing.
- Determines flash points of a wide range of products by a closed cup method with two option speed stirring of the sample.
- Extensively used in shipping and safety regulations for detection of contamination by volatile and flammable materials in fuel oils and lubricating oils, and for characterization of hazardous waste samples.
- Smooth operating cover mechanism slides shutter open and applies test flame at the turn of a knob.
- Cover fits over brass test cup and includes pilot flame, test flame reference bead, built-in stirrer and plated brass thermometer ferrule.
- Requires a stirrer/motor accessory. Order Stirrer motor and thermometers separately.
- Require a gas regulator and an external source of flame ie: propane/butane bottle or bbq tank (not supplied), as per the ASTM methods.
- Mounted on a sturdy cast iron base.
| ASTM | D93 |
|---|---|
| BS | 3900-A11 3900-A13 3900-A14 |
| CFR | 16-1500.43a 49-173.115 |
| FTM | 791-1101 |
| ISO | 3679 3680 |
| OSHA | 1910-106 1910-1200 |
Manuals
- Closed-Cup-Flash-Point-Tester-Manual.pdf
Closed-Cup-Flash-Point-Tester-Manual.pdf
Pensky Martens Gas Flash Point Test
Article No: 11474
Pensky-Martens Electric Flash Point Test
Article No: 11476
