SEMicro PATTI Adhesion Tester

Art. No.: 12692

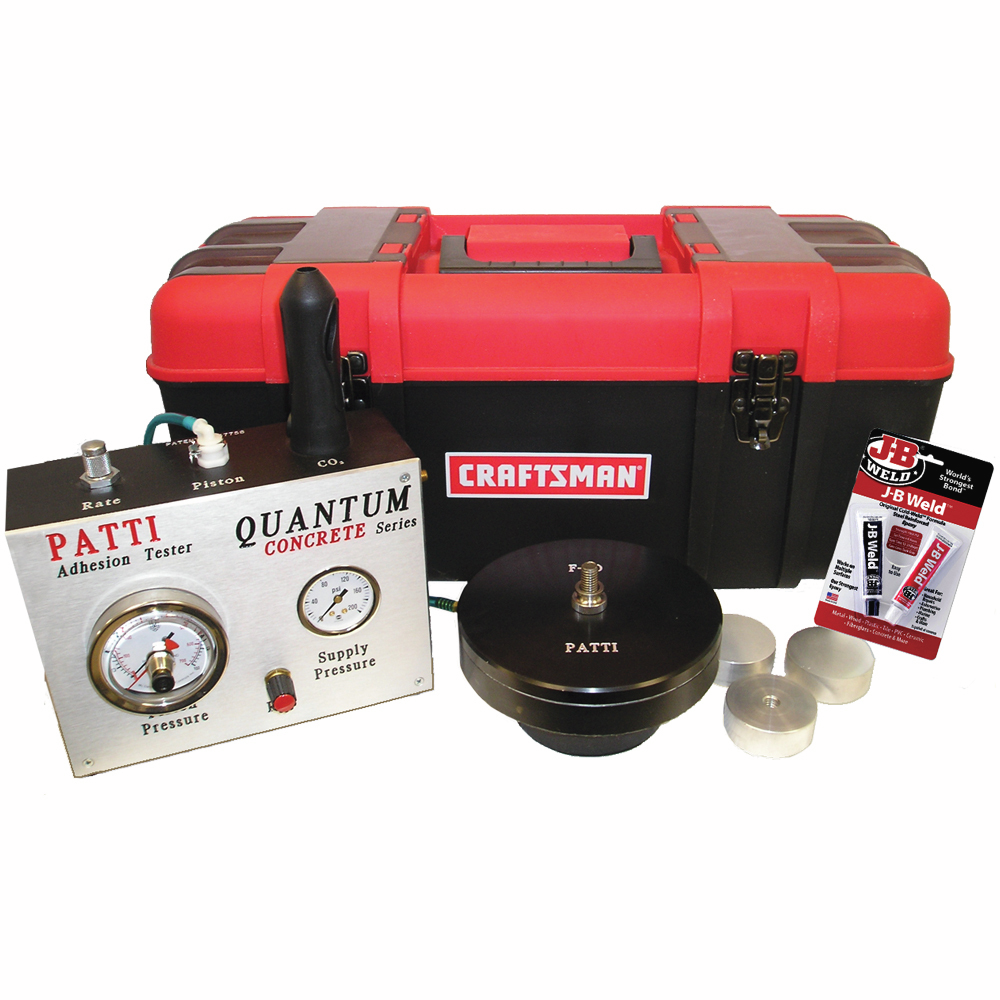

PATTI Concrete with F-8/12 (F20) Piston

Concrete analog adhesion tester
Measures concrete coating adhesion strength up to 1,000 PSI
F-8/12 (F20) Pistons

Select your Model

PATTI Quantum

Piston

$2,536.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Powder-Coated box is much more robust than previous PATTI®'s - will maintain its aesthetic value
The PATTI® features a patented piston design which assures uniaxial alignment with the pull-stub axis for "true tensile testing"
New regulator eliminates the internal pop valve, allowing for use of entire air cartridge
New air cartridge capacity is twice that of other PATTI® models
Simplified design requires fewer internal parts and reduces the frequency of maintenance / repair
With the exception of the new, higher capacity CO2 Cartridge, can use the same pistons, pull-stubs and supplies as previous PATTI®'s
The reduced number of internal parts makes the PATTI® QUANTUM lighter than other PATTI®'s and more portable than ever
The self-aligning PATTI®QUANTUM quantitatively measures the adhesion strength of numerous coatings, including: paints, polymers, ceramics, inks, films, adhesives, and thermal or arc-sprayed metals.
Laboratory or field use.
The test surface can be smooth, rough, porous, flat or curved (please contact us for application specific solutions). Custom-machined pull-stubs are available at any size, either flat or with a radius to match curved surfaces.
The PATTI® can also be used to test the strength of adhesives under non-room environmental conditions from 32-212 degrees Fahrenheit (0-100 degrees Celsius).
20mm pull-stubs required for ISO 4624
50mm pull-stubs and F-20 piston required for ACI 503-30 Appendix A, A.1
Due to FAA regulations CO2 cartridges will only be shipped by ground. Cartridges can generally be purchased at bike shops or sporting goods stores.

Technical Data Chart

Data

Models:	PATTI Quantum Analog/Concrete
Gas Supply:	Self-contained or external supply, 100psig
Power Supply:	N/A
Weight:	< 4 Pounds
Material:	Powder-Coated Enclosure
Dimensions (Control Module):	8" x 3-1/8" x 6" (20.3 x 7.9 x 15.3 cm)
Load Range:	1-10,000 psi using 1/2" pull-stubs
Display:	Analog
Operating Temp. Range:	50 - 120°F
Compatible Pistons:	F-1, F-2, F-4, F-8, F-20 (F-8/12)
Adhesion Strength Test Range with F-8 Piston:	50-4,000 psi
With Optional F-20 Piston:	400-10,000 psi
Tensile Strength Conversion:	Chart
Standards:	ASTM D4541, and ACI 503-30 Appendix A, A.1.

Piston:	F-1	F-2	F-4	F-8	F-8/12 (F-20) (3 Load Ranges)
Load Range (PSI using 1/2" dia. pull-stubs):	50-500	100-1000	200-2000	400-4000	F-8; 400-4000 F-12; 600-6000 F-20; 1000-10,000
Piston Diameter:	1-3/4" (1.75")	2-1/4" (2.25")	2-7/8" (2.875")	3-3/4" (3.75")	5 3/4" (5.75")

We need your approval

This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.

Always accept YouTube

Cookie Banner powered by

consentmanager.net

PATTI Concrete Analog Laboratory/Field control module
One dual load range piston (F8/12 aka F-20)
Transport toolbox
"(20) 2"" Pull-Stubs"
Stand-Off Ring
High & low-pressure hoses
Epoxy kit
Talcum powder
6 CO2 cartridges
Instruction manual
