Paper Schmidt Roll Hardness Tester

PaperSchmidt Roll Hardness Tester

Art. No.: 15297

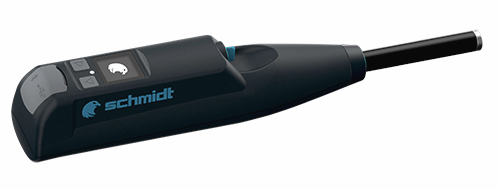

Paper Schmidt PS8000 Roll Hardness Test

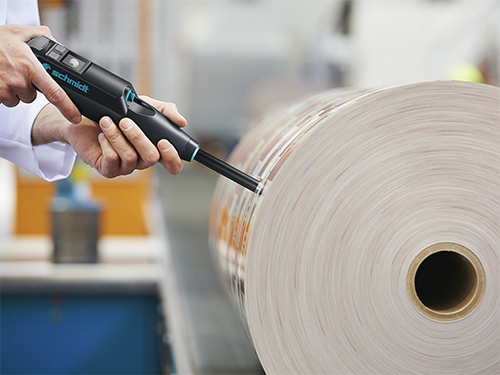

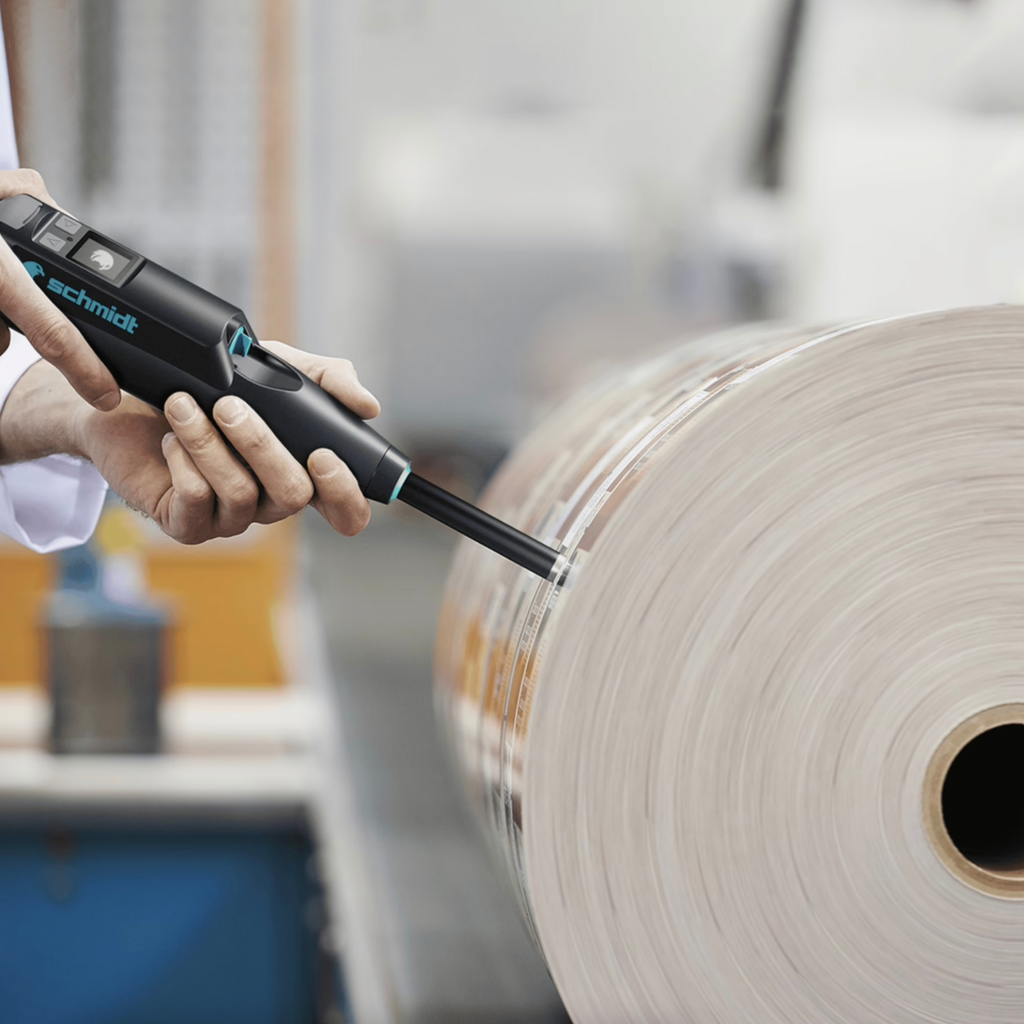

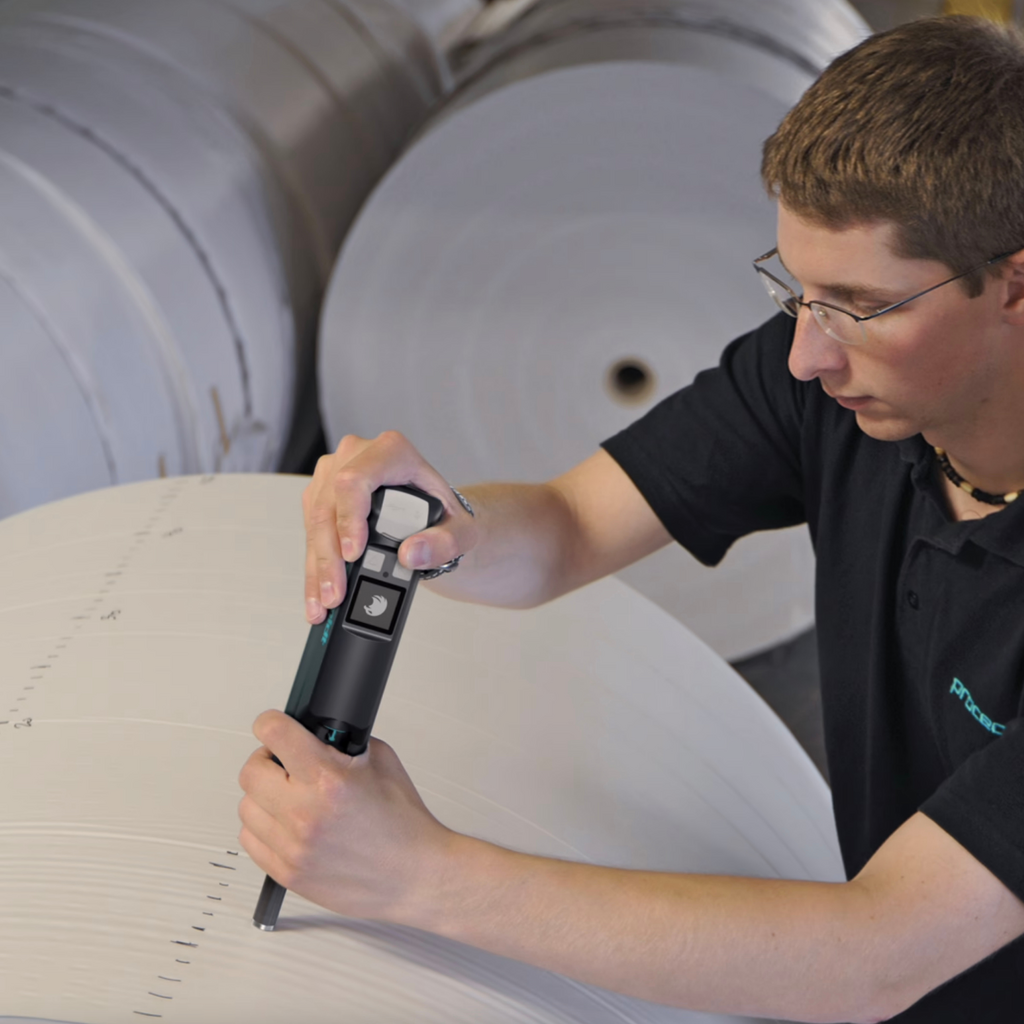

The PS8000 Paper Schmidt Roll Hardness Tester is desgined for precise roll testing of paper or foil rolls using rebound hammer technology.

Select your Model

$3,495.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • Accurate profiling with unmatched performance
  • High quality design for increased durability
  • Flexible data handling for PC, mobile app, or portable printer
  • Impact angle independent
  • Displays the impacts on-screen as you work
  • Set min/max values
  • Originally invented by Proceq in 1954 and still the market leader today
  • Provides the high accuracy and reliable results
  • The only rebound hammer specifically designed for the paper industry
  • Swiss Made to ensure durability and long lifetime

Technical Data Chart
Data
Measurement:Roll profile measurement (series of rebound value)
Technology:Optical Rebound Velocity Quotient
Impact Energy:0.735 Nm
Memory:Instrument memory > 20,000 impacts
Display:Analog & backlit digital (100 x 100 pixels, graphic)
Connectivity:Bluetooth® LE, USB for charging, updates and wired data transfer to PC
Standards Compliance:TAPPI T834, TAPPI TIP 1004-01
Tappi
T 834
T 1004-01
Paper Schmidt PS8000 Roll Hardness Test
  • Paper Schmidt PS8000 hammer
  • Rechargeable AAA battery
  • Micro-USB cable
  • Carrying strap
  • Documentation
  • Carrying bag
  • Factory certificate

Manuals

Proceq Test Anvil

Testing anvil OS8200 N/L PS8000 RS8000

Article No: 15298

Price: $1,795.00
