DeFelsko Thickness Calibration Standards

Name: P3 Thickness Calibration Standard
Brand: GARDCO
SKU: 11234
Price: 205 USD
Availability: schema.orgInStock

Art. No.: 11234

P3 Thickness Calibration Standard

Select your Model

Thickness Gauges

$205.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The DeFelsko Thickness Calibration Standards are certified Coated Metal Plates and Polystyrene Blocks.
They are ideal for verifying the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.
Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage.
Ideal for use in the calibration lab, in the field or on the factory floor.
Standards with steel or aluminum substrates consist of 4 plates mounted in a protective binder.

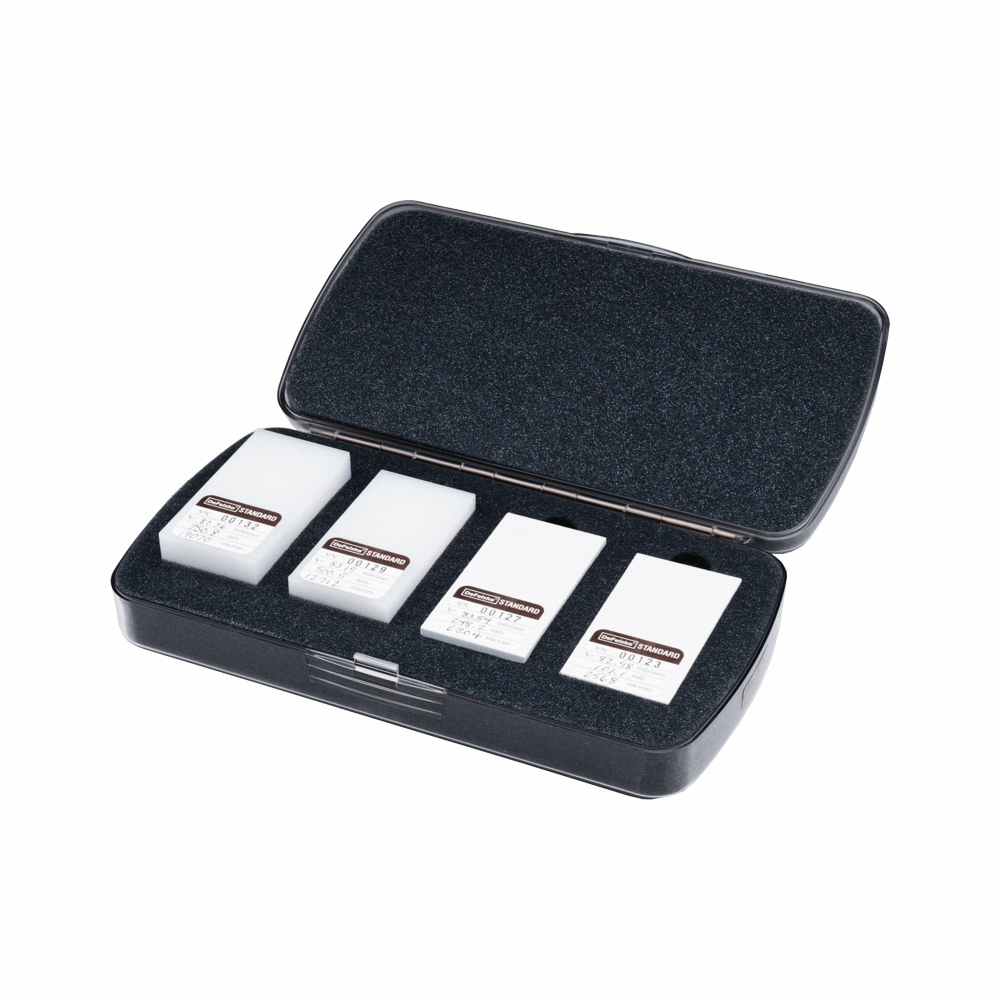

Polystyrene thickness standards consist of 4 blocks supplied in a rugged acrylic storage box.
Individually serialized for traceability to NIST or PTB - includes a Certificate of Calibration.
Certified and labeled in both Metric and Imperial units.
Standards: ISO 8502-4, BS 7079-B4, NACE RP prop 97

Technical Data Chart

Data

Part No.	Order Code	Ideal for	Approximate Thickness				Accuracy
Part No.	Order Code	Ideal for	Plate 1	Plate 2	Plate 3	Plate 4	Accuracy
11224	S1	PosiTector 6000 F, FS, FRS, FN, FNS, FNRS PosiTest F & FM	0	75 µm 3 mils	250 µm 10 mils	1500 µm 60 mils	± 0.43 µm ± 0.017 mil
11225	S2	PosiTector 6000 F0S, F45S, F90S PositTest DFT Ferrous & Combo	0	75 µm 3 mils	250 µm 10 mils	1000 µm 40 mils
11226	S3	PosiTest G & GM PosiPen A, B, & C	0	15 µm 0.6 mils	40 µm 1.6 mils	100 µm 4 mils
11227	A1	PosiTector 6000 F, FS, FRS, FN, FNS, FNRS	0	75 µm 3 mils	250 µm 10 mils	1500 µm 60 mils
11228	A2	PosiTector 6000 NAS, N0S, N45S, N90S PosiTest DFT Combo	0	75 µm 3 mils	250 µm 10 mils	500 µm 20 mils
11233	P1	PosiTector 6000 FT, FTS, NTS, FNTS, FTRS PosiTector 200D	375 µm 15 mils	2 mm 80 mils	4.5 mm 185 mils	6.5 mm 250 mils	± (2.5 µm + 0.05% of thickness) ± (0.1 mil + 0.05% of thickness)
14604	P2	PosiTector 6000 FHS, FJS, NHS, EOC	2.5 mm 100 mils	6.5 mm 250 mils	13 mm 500 mils	19 mm 750 mils
11234	P3	PosiTector 100 C	375 µm 15 mils	1.5 mm 60 mils	2.5 mm 100 mils	4.5 mm 185 mils
14776	P6	Positector 200 C	375 µm 15 mils	1.5 mm 60 mils	2.5 mm 100 mils	3 mm 125 mils
14644	P8	Positector 6000 FNGS, FLS	13 mm 500 mils	13 mm 500 mils	13 mm 500 mils	19 mm 750 mils
S1-S3 Epoxy on Steel (Ferrous) A1-A2 Epoxy on Aluminum (Non-Ferrous) P1-P6 Polystyrene Blocks 1.5" x 2.75" (38 x 70 mm) P8 Polystyrene Blocks 3.0" x 3.0" (76 x76 mm)
