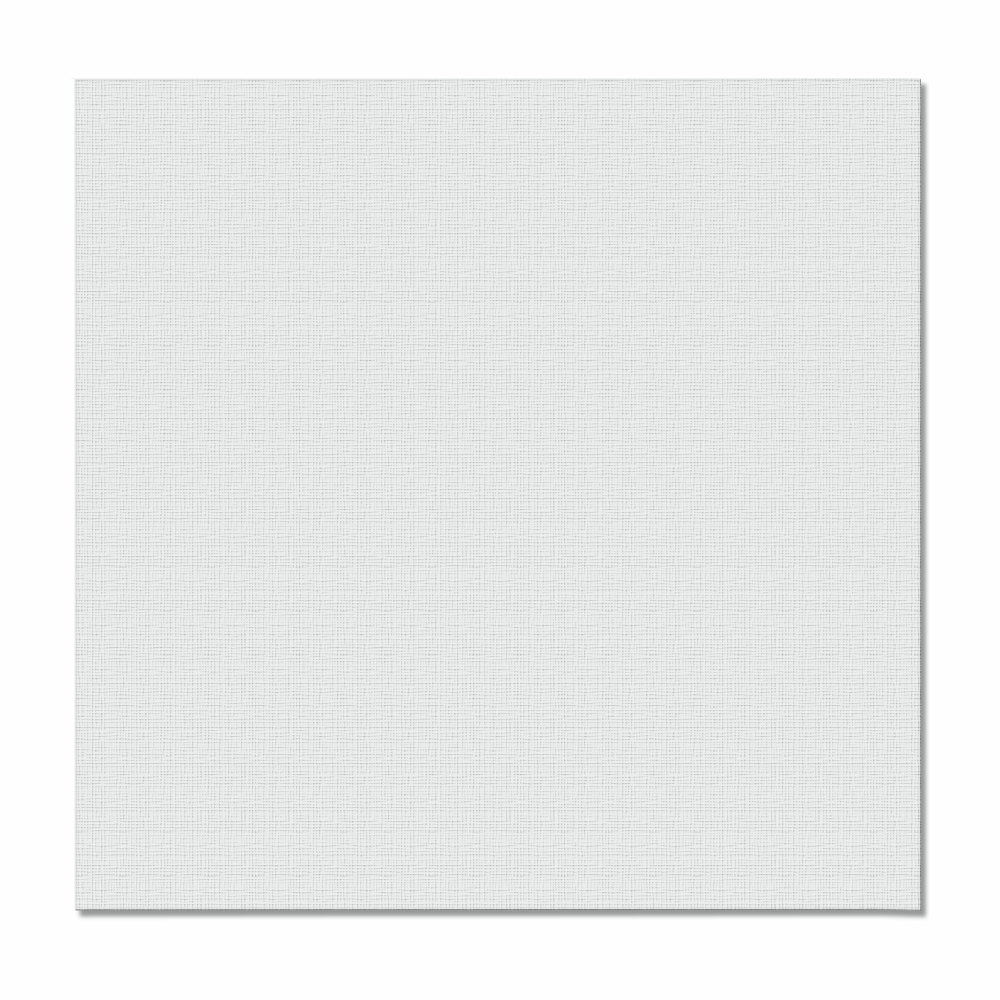

Dry Film Thickness Standard, Matte

GARDCO Dry Film Thickness Shims

Art. No.: 11280

Non-Precision Shim 7.5 mil, Matte

Non-Precision Shim
7.5 mil (0.0075")
Matte

Select your Model

Shim Type

Shim Value

$15.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The GARDCO Shims are dry film thickness standards and are used to calibrate coating thickness gauges.
There are Precision and Non-Precision version.
They are cut from stock to a workable size of 2.5" x 2.5".
They are color coded by value from 0.0005" (1/2 mil) to 0.030" (30 mils).
The larger values of 40, 50 and 60 mils are clear.
The Color-Coded Miked (Precision) Shims are color-coded, and they are marked with a centrally determined micrometer value resolved to 0.0001 of an inch. They cannot be considered traceable to NIST.
The Color-Coded Non-Precision Shims are color-coded, but not marked in value. They have an accuracy of:
- 0.5 -7.5 mil (±10%)
- 25, 30 mil (±5%)
- 10-20 mil (± 0.001")
- 40, 50 & 60 mil (±0.003")
These physical properties are reported for information only. Since all plastics and test conditions can vary, we make no representation that the material in a particular shipment will conform to the properties given

Technical Data Chart

Data

Shim Color	Shim Value	Shim
Silver:	0.5 mil / 0.0005"	Non-Precision/Precision
Gold:	0.75 mil / 0.00075"	Non-Precision/Precision
Amber:	1.0 mil / 0.001"	Non-Precision/Precision
Purple:	1.5 mil / 0.0015"	Non-Precision/Precision
Brown:	10.0 mil / 0.01"	Non-Precision/Precision
Black:	12.0 mil / 0.012"	Non-Precision
Pink:	15.0 mil / 0.015"	Non-Precision/Precision
Red:	2.0 mil / 0.002"	Non-Precision/Precision
Yellow:	20.0 mil / 0.20"	Non-Precision/Precision
White:	25.0 mil / 0.025"	Non-Precision/Precision
Green:	3.0 mil / 0.003"	Non-Precision/Precision
Coral:	30.0 mil / 0.03"	Non-Precision/Precision
Tan:	4.0 mil / 0.004"	Non-Precision/Precision
Clear:	40.0 mil / 0.04"	Non-Precision/Precision
Blue:	5.0 mil / 0.005"	Non-Precision/Precision
Clear:	50.0 mil / 0.05"	Non-Precision/Precision
Clear:	60.0 mil / 0.06"	Non-Precision/Precision
Matte:	7.5 mil / 0.0075"	Non-Precision/Precision
