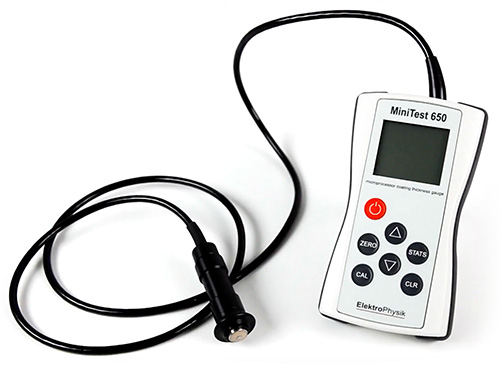

MiniTest 650 Coating Thickness Gauges

Art. No.: 14300

MiniTest 650 Model F, 120 mil/0-3000 um

  • MiniTest 650 Model F
  • Measures non-magnetic coatings on ferromagnetic substrates (e.g. steel used in construction and for auto body)
  • Measuring range 0 to 3 mm

Select your Model

$695.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The MiniTest 650 is a Coating Thickness Gauge used for any non-magnetic coatings on steel, such as paint, enamel, chrome, zinc, etc.
  • Can also be used for any insulating coatings on non-ferrous metals such as paint, anodizing, ceramics on aluminum, copper, zinc die-cast, brass, etc.
  • With statistics display (number of readings taken, mean values, standard deviation, maximum, minimum).
  • The rugged and easy-to-handle thickness gauge combines extended mechanical life on the one hand and high accuracy on the other hand to meet the requirements of any professional user in the shipbuilding, automotive, bridge building, construction or other industry
  • Battery-operated gauge
  • Interchangeable measuring units µm or mils.
  • Backlit display
  • One meter sensor cable
  • One pole sensor made of a wear-and-tear resistant carbide material to ensure a virtually unlimited life cycle under normal condition use
  • Optimal ram and impact protection is provided through the rubber rimmed casing
  • Via an USB interface, the MiniTest 650 can be connected to a PC for on-line measurements or display of the statistics
  • Ram and impact protected through rubber rimmed casing
  • Sensor with newly developed wear-resistant carbide metal tip

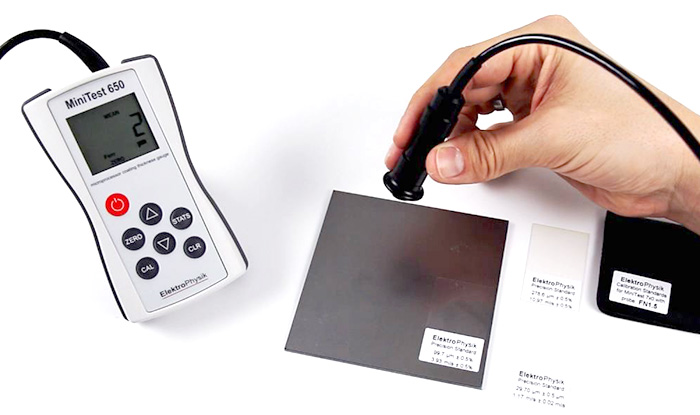

  • Enables 1-point and 2-point calibrations.
  • Designed for durability and high-precision, is the ideal tool for any measuring task in the finishing industry
  • MiniTest 650 is available in three different models:
    • With a magnetic-induction sensor for measurements on steel substrates
    • With an eddy currents sensor for measurements on non-ferrous metals
    • With a dual sensor for measuring on both steel or non-ferrous metals

Technical Data Chart
Data
Measuring Range:Model F (steel) 0 - 3000μm / 120 mils
Model N (non-ferrous metal) 0 - 2000 μm / 80 mils
Model FN (dual sensor) 0 - 2000 μm / 80 mils
Measuring Uncertainty:±(2% of reading + 2 μm) / ±(2% of reading + 0.08 mils)
Minimum Curvature Radius:5 mm / 0.2” convex 25 mm / 1” concave
Minimum Measuring Area:Ø20 mm / 0.8”
Minimum Base Thickness:0.5 mm / 20 mils (F) 50 μm / 2 mils (N)
Display:4-digit screen date (11 mm / 0.44”)
Measuring Units:μm - mils user selectable
Calibration:Standard, 1-point and 2-point calibration
Statistics:Calculated from maximum 9.999 readings, mean value, standard deviation, number of readings, minimum and maximum
Interface:USB
Power Supply:3 Micro AAA batteries (for more than 10,000 readings)
Dimensions and Weight:Housing: 2.7 x 4.8 x 1.25 inches / 70 x 122 x 32 mm
Sensor: Ø 15mm x 62mm / Ø 0.60” x 2.44”; 225 grams / 7.93 ozs
Ambient Temperature:Gage: 0 to 50°C / 32° to 122°F
Sensor: -10° to 70°C / 14° to 158°F
MiniTest 650 Model F, 120 mil/0-3000 um
  • Gauge MiniTest 650 with fixed probe
  • 3 batteries AAA / LR03 / Micro
  • Control plate(s)
  • Calibration standards in folding case
  • Operating manual on a CD
  • Quick reference guide
  • Factory certificate
  • Soft case

Manuals

MiniTest 650 Model FN, 80 mil/0-2000 um

Article No: 14302

Price: $1,128.00

MiniTest 650 Model N, 80 mil/0-2000 um

Article No: 14301

Price: $1,015.00
