Taber Crock Meter Kit

Crockmeter Rub Test

Art. No.: 15461

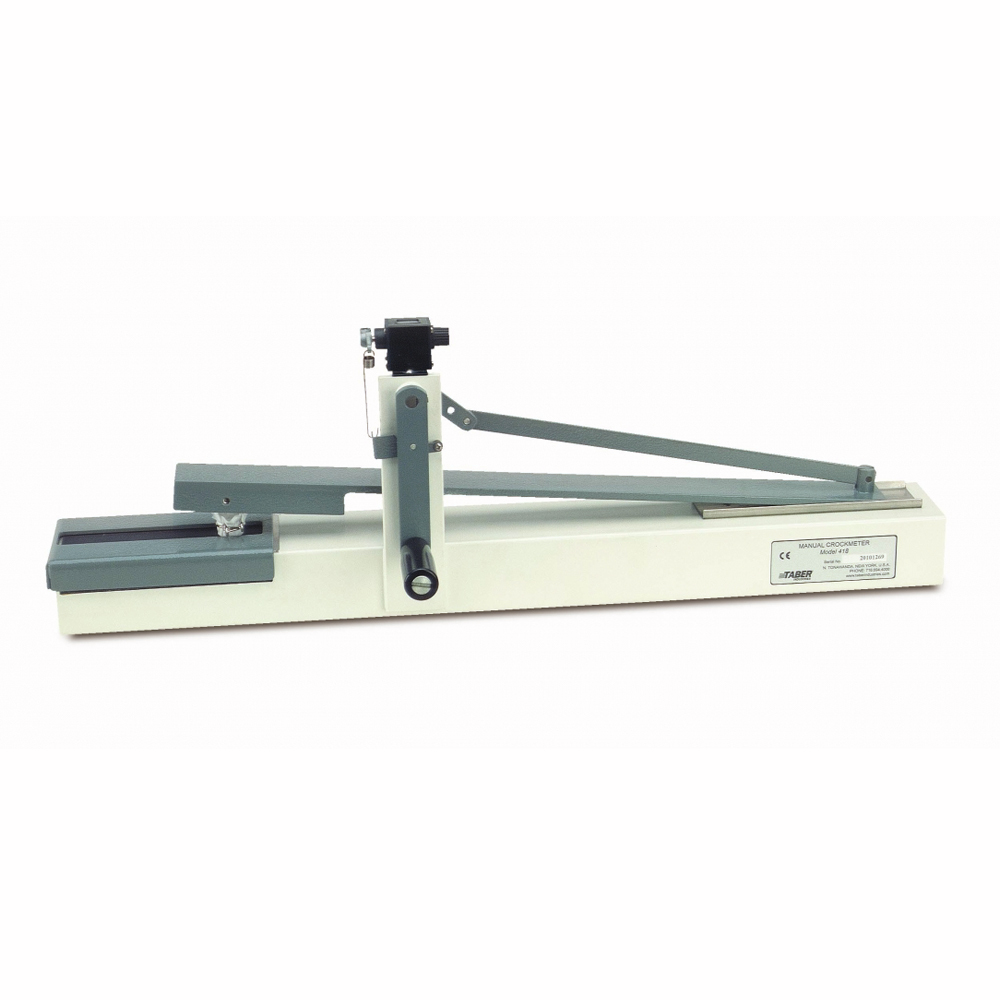

Manual Crockmeter 418

The Crockmeter 418 is a manual test that measures the amount of color transfer from rubbing.



Select your Model

$1,599.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The Crockmeter is a relatively simple rub tester commonly used to determine the amount of color transferred from textile materials to other surfaces by rubbing.
  • The Crockmeter is 32" x 12" x12" and the shipping weight is 16 lbs
  • This instrument has also been utilized to conduct smudge or smear resistance tests on images produced by a printer or copier.
  • For paints and coatings, the crockmeter is useful when evaluating the change in gloss due to rubbing, scuffing or marring.
  • Easy to use, rugged design provides repeatable test results.

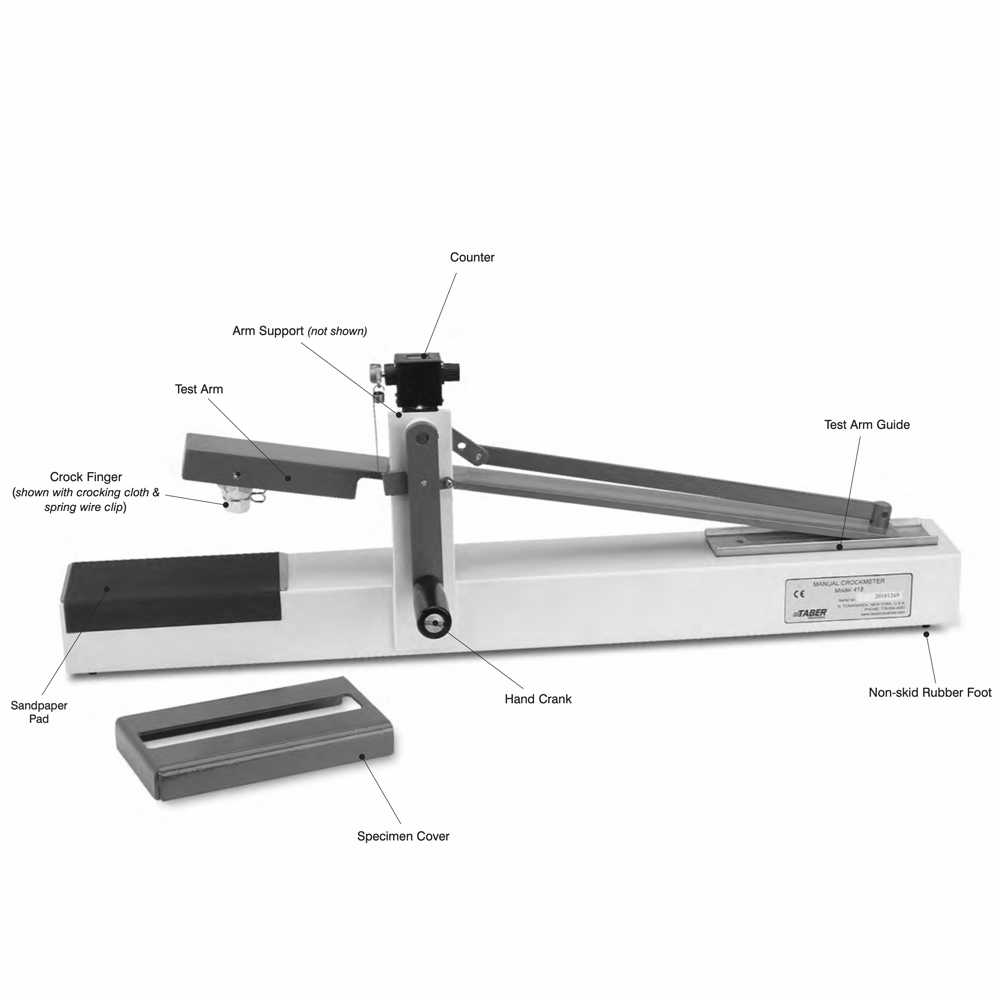

  • Standard Features: Counter Acrylic Crock Finger and Spring Wire Clip Hand Crank Assembly 9N Load (incorporated in test arm) Detachable Specimen Cover Rugged Housing Non-skid Rubber Feet

Manual Crockmeter 418
Supplier: Taber Industries
  • Base Unit
  • Sandpaper Pads
  • 2 each Crocking Cloths
  • 1000 package Extra Spring Wire Clip
  • Operating Instructions

  1. A test sample is clamped to the instrument base and a square of standard crocking cloth is fixed to a 16mm diameter, acrylic rubbing finger.
  2. The finger rests on the sample with a pressure of 900 grams force and traverses a straight path approximately 100mm long with each stroke of the arm.
  3. Established rating scales standardize evaluation and facilitate repeatable results.
  4. After testing textile materials, the crocking cloth is removed and compared against the AATCC Gray Scale for Staining or Chromatic Transference Scale.
  5. Based on this comparison, the operator assigns a grade to the color change or amount of color transfer
