Economical Laboratory Ovens
Art. No.: 12558
LO Lab Oven 12x10x10", 120 V
- Model LO
- 12x10x10"
- 200°C
- 120V, 50-60 Hz, 3-wire cord and plug
- Bimetal control thermostat sets desired oven temperature
- Thermal cutoff limits maximum oven temperature
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- The Economical Laboratory Ovens Models LO, LR, LW are low cost, fully equipped, all purpose laboratory ovens for sample drying, baking, annealing, conditioning, sterilizing, evaporating and dehydrating, and other general laboratory work.
- They are not For Use with flammable solvents or vapors
- Red pilot light indicates heater operation
- Top mounted dial thermometer
- Fully factory tested
- Sturdy welded steel construction
- Thermostatically controlled
- Over-temperature protection
- On/off switch and a dial thermometer
- Damper controlled gravity air circulation
- 2 nickel plated shelves adjustable at 1/2" increments
- Incoloy sheathed tubular heating element
- Brushed stainless steel exterior and corrosion resistant galvanized steel interior
- 6 lbs/cf density industrial rockwool insulation
- 15 lbs. distributed load per shelf. 30 lbs. maximum oven load
- Each additional shelf includes four (4) support clips

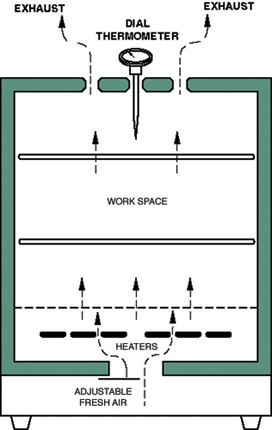

- Gravity Convection - Heat is transferred from the bottom up through the oven chamber by natural convection and exits through vents in the oven top. Adjustable fresh air inlet damper at the oven bottom provides control of the amount of fresh air entering the oven.
- For solvent based systems please fill out our oven design form Here and submit to gardco@altana.com
| Technical Data Chart | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| ||||||||||||||||||||||||||||||||||||||||
Manuals
- Economical-Laboratory-Ovens-Series-LO-LW-LR-Manual.pdf
Economical-Laboratory-Ovens-Series-LO-LW-LR-Manual.pdf
