Opacity Paint Charts

Name: Leneta 5C Opacity Chart
Brand: Leneta
SKU: 12748
Price: 103 USD
Availability: InStock

Art. No.: 12748

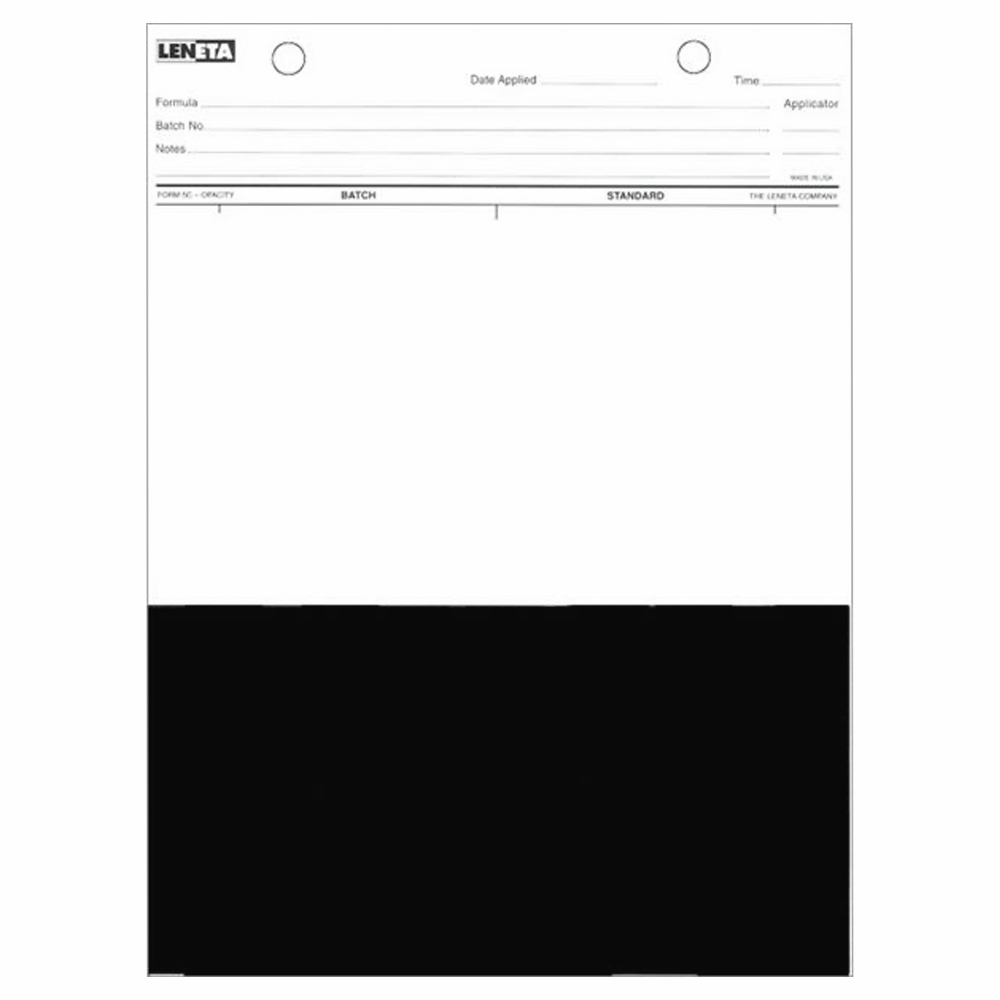

Leneta 5C Opacity Chart

Select your Model

Drawdown Charts

$103.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Opacity Paint Charts, also known as “hiding power charts” or “contrast ratio charts”, have simple combinations of black and white areas
Sealed with a clear, impervious topcoat which prevents penetration of applied coatings into the paper
Used for hiding power
Large enough for wide aperture reflectance measurements and for visual opacity and color observations

Technical Data Chart

Data

Form:	2A	2C	14H	15H	5C	3B
Color:	Black Top / White Bottom	Black Top / White Bottom	White Top / Black / White / Black Bottom	White Left & Right Sides / Black Middle	White Top / Black Bottom	White Top & Bottom / Black Middle
Size:	5-1/2 x 10 in (140 x 254 mm)	7-5/8 x 10-1/4 in (194 x 260 mm)	11-1/4 x 17-1/4 in (286 x 438 mm)	11-1/4 x 17-1/4 in (286 x 438 mm)	7-5/8 x 10-1/4 in (194 x 260 mm)	7-5/8 x 11-3/8 in (194 x 289 mm)
Design Area:	-	-	1.076 ft², 0.1 m², 1000 cm²	-	-	-
Box Quantity:	250	250	125	125	250	250
Boxes Per Case:	-	4	4	4	4	4
Box Weight:	6 lb	9 lb	11 lb	11 lb	9 lb	10 lb
