Hull Roughness Gauge

Hull Roughness Gauge

Art. No.: 13151

Hull Roughness Gage With Sensor

The Hull Roughness Gauge is used in the Marine Industry to control the roughness of a ship’s hull, this instrument plays an important role in the operating costs of a vessel. It measures the AHR value (Average Hull Roughness) of sea going vessels, which is the ‘mean’ of all the vessel’s hull roughness readings and is the measure against which ship’s performance is correlated.

Select your Model

$7,300.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The roughness of a ship’s hull increases mainly due to corrosion, pitting, plate undulation, mechanical damage, dry spray and above all bio fouling. Proper maintenance and the correct application of high-end anti-fouling coatings reduce the hull roughness which will lead to significant savings on fuel consumption and CO2 emissions. The hull roughness is measured during in-docking and out-docking.

  • Measures the AHR value (Average Hull Roughness) the ‘mean’ of all the vessel’s hull roughness readings and is the measure against which ship’s performance is correlated.
  • Can aid in significant savings on fuel consumption and CO2 emissions
  • The neck strap keeps the users’ hands free when required

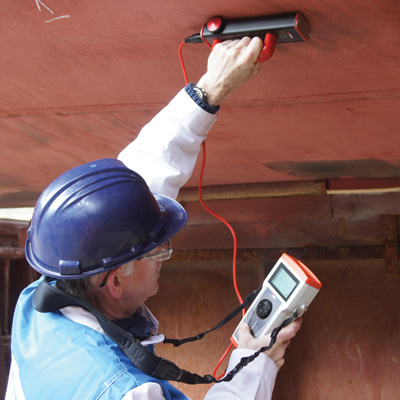

  • The Sensor unit is equipped with three non-slip wheels and a carbide tipped stylus and is moved over the ship’s hull in a horizontal way collecting series of measurements
  • A set of LED’s indicate the status of the instrument so operation is possible without observing the control unit
  • Statistics, time/date and location of each series and the average hull roughness are automatically calculated and stored in the Control unit
  • Consists of a Control unit with a menu-driven interface and a Sensor unit
  • It can be operated with just one hand, a 4-way directional push button operates an intuitive menu on a large illuminated display
  • Using the supplied USB-cable and software you instantly create inspection reports in Microsoft Excel. Your own company logo and or -details can be incorporated to restyle your reports

Technical Data Chart
Data
Accuracy:+/- 5 microns or <2%, whichever is greater
Memory:Enough for 4 complete surveys done both in- and out-docking, totalling over 10,000 readings
Location storage:Simply point and click the hull location in the displayed graphical representation of the ship's hull
Units:Microns
Speed:50 mm/s, with speed indication LED in the Sensor unit
Interface:USB serial to PC connection
Power supply:4 AA type Alkaline Cells, available worldwide
Dimensions and Weight
Sensor Depth:205mm
Sensor Width:80mm
Sensor Height:40mm
Sensor Weight:630g approx.
Control unit Depth:7.9” (200mm)
Control unit Width:4.5” (115mm)
Control unit Height:1.6” (40mm)
Control unit Weight:350g approx
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net
Hull Roughness Control Unit with neck-strap
Hull Roughness Sensor
Hull Roughness Sensor Cable
DC9015 Calibration plate
USB thumb drive with software
USB connection cable for PC
(4) AA batteries

Manuals

Hull Roughness Gauge Pouch

Pouch For Hull Roughness Gauge

Article No: 13153

Price: $133.00
