HTAB167 Wall Hygrometers and Thermometers

Certified Hygrometers Thermometers

Art. No.: 14010

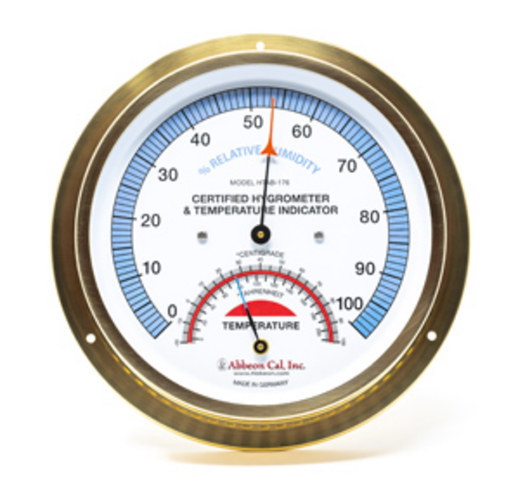

HTAB176 Certified Hygrometer Temperature

HTAB176 Certified Hygrometer Thermometer
Solid brass, polished and lacquered
Blue and red accents black print
It is certified to be accurate within ±3% + 1 graduation
The dial indicates the complete range of 0 to 100% relative humidity
The bi-metallic thermometer is accurate to ±1°C (0 - 70°C) + 1 scale graduation with a range of -20 to 100°C and 0 to 210°F
Graduations are 1°C, 2°F and 1% RH.

Select your Model

Weather Instruments

$299.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Model HTAB-176 is a Certified Hygro-Thermometer Fischer instrument. It is certified to be accurate within ±3% + 1 graduation. The dial indicates the complete range of 0 to 100% relative humidity. The bi-metallic thermometer is accurate to ±1°C (0 - 70°C) + 1 scale graduation with a range of -20 to 100°C and 0 to 210°F. Graduations are 1°C, 2°F and 1% RH.

Accurate meteorological weather instruments
Test Certificate included, tested and certified according to the integrated management system of the Feingeratebau K. Fischer GmbH Manual Test Report in accordance with DIN EN 10204 item 2.2
Each instrument has been tested at three different positions of the dial at temperatures ranging from 32° to 230°F
Can be wall mounted
Plastic lens available
Screen displays both humidity and temperature (not AB167)
Humidity is sensed by a durotherm element that is a synthetic hygroscopic fiber that expands and contracts in response to the moisture in the air
Temperature is indicated by the actuation of a bimetallic spring which transmits changes by expansion and contraction

Technical Data Chart

Data

Model:	5063	5064	AB167	HTAB169	HTAB176
Case:	Stainless Steel	Black Aluminum	Brass	Brass	Brass
Face Color:	White (red)	White (red)	Black	Black	White (blue/red)
Size:	5.25" x 1.5" (115mm x 33mm)	6" overall, 5" dial
RH Range:	0 - 100% RH
Temp Range:	10 - 170°F (-10 - 76°C)	10 - 170°F (-12 - 75°C)	-	0° - 180°F (-20 - 80°C)	0 - 210°F (-20 - 100°C)
RH Accuracy:	±3% + 1 scale graduation
Temp Accuracy:	±1°C (0 to 40°C) + 1 scale graduation		-	±1% of scale Range -10° - 190°F	±1°C (0 - 70°C) + 1 scale graduation
RH Graducation:	2% RH		1% RH
Temp Graduation:	5°F (2°C)		-	2°F (1°C)
Shipping Weight:	3 lbs
