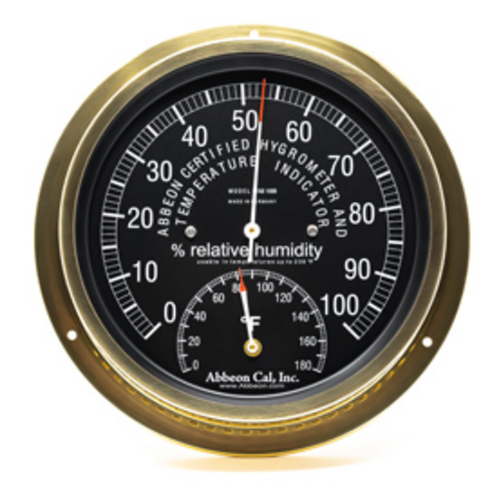

HTAB169 Wall Hygrometers and Thermometers

Certified Hygrometers Thermometers

Art. No.: 14009

HTAB169 Certified Humidity Temperature

  • HTAB169 Certified Hygrometer Thermometer
  • Solid brass, polished and lacquered
  • Black dial with white print
  • The dial indicates the complete range of 0 to 100% relative humidity
  • The instrument has been tested at three different positions of the dial at temperatures ranging from 32° to 230°F
  • The calibration and certification are done under ISO-9001 control.

Select your Model

$299.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Fischer (Lufft) HTAB-169 Model is a Hygro-Temperature Indicator. The dial indicates the complete range of 0 to 100% relative humidity. The instrument has been tested at three different positions of the dial at temperatures ranging from 32° to 230°F. The calibration and certification are done under ISO-9001 control.

  • Accurate meteorological weather instruments
  • Test Certificate included, tested and certified according to the integrated management system of the Feingeratebau K. Fischer GmbH Manual Test Report in accordance with DIN EN 10204 item 2.2
  • Each instrument has been tested at three different positions of the dial at temperatures ranging from 32° to 230°F
  • Can be wall mounted
  • Plastic lens available
  • Screen displays both humidity and temperature (not AB167)
  • Humidity is sensed by a durotherm element that is a synthetic hygroscopic fiber that expands and contracts in response to the moisture in the air
  • Temperature is indicated by the actuation of a bimetallic spring which transmits changes by expansion and contraction

Technical Data Chart
Data
Model:50635064AB167HTAB169HTAB176
Case:Stainless SteelBlack AluminumBrassBrassBrass
Face Color:White (red)White (red)BlackBlackWhite (blue/red)
Size:5.25" x 1.5"
(115mm x 33mm)		6" overall, 5" dial
RH Range:0 - 100% RH
Temp Range:10 - 170°F
(-10 - 76°C)		10 - 170°F
(-12 - 75°C)		-0° - 180°F
(-20 - 80°C)		0 - 210°F
(-20 - 100°C)
RH Accuracy:±3% + 1 scale graduation
Temp Accuracy:±1°C (0 to 40°C) + 1 scale graduation-±1% of scale
Range -10° - 190°F		±1°C (0 - 70°C) + 1 scale graduation
RH Graducation:2% RH1% RH
Temp Graduation:5°F (2°C)-2°F (1°C)
Shipping Weight:3 lbs
