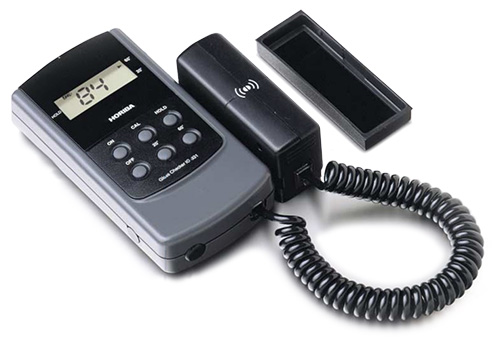

Gloss Checker 331

IG-331 Gloss Meter Gloss Checker

Art. No.: 11533

Horiba IG-331 Gloss Meter 20/60

The Gloss Checker IG-331 is a light and compact gloss meter that incorporates "one-touch" calibration. It is used for checking or diagnosing coated surfaces, checking building materials and finish, quality control of paint or ink and inspecting printed matter.

Select your Model

$998.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • As simple to use as a pocket calculator, Transforms Ambiguous Gloss Into Hard Numbers.
  • It can be used at 20° in addition to the standard 60° measuring angle.
  • Continuous reading allows for efficient readings on a real time basis.
  • In addition to the standard 60° measuring angle, a 20° measuring angle is available for measuring high gloss surfaces (gloss exceeds 70).

Technical Data Chart
Data
Optical System:Incident angle 60° - Reception angle 60°
Incident angle 20° - Reception angle 20°
Measurement Area:3 mm X 6 mm oval (60° measurement)
3 mm X 4 mm oval (20° measurement)
Light Source:LED (wavelength 890 nm)
Light Receiving Part:SPD (silicone photo diode)
Measuring Range:0 - 100
Display Range:0 - 199 (resolution 1)
Reproducibility:±5% FS ± 1 digit
Power Source:A3 dry-cell battery X 4
Continued Use Time:50 hours or more
Ambient Conditions:10 - 40°C


Dimensions:		Main Body:140(D) x 75(W) x 34(H) mm
5.5(D) x 3.0(W) x 1.3(H) in
Optical System:88(D) x 30(W) x 45(H) mm
3.5(D) x 1.2(W) x 1.8(H) in
Mass:Approx. 300g (with battery)


Functions:		- Automatic calibration
- Display hold
- Automatic power cut-off
- Battery life display
- Over range display
Horiba IG-331 Gloss Meter 20/60

Gloss Checker 331 Calibration Standard

Calibration Standard for Gloss Meter

Article No: 11534

Price: $249.00

Gloss Checker 331 Cord

Replacement Coiled Cord For Gloss Meter

Article No: 11535

Price: $125.00
