Grind Gages - mils / Hegman, 2 paths
Grind Gage No. 45
Grind gage - groove depth range 0-4 mils, 0.5 x 4 in
- Path Size: 0.5 x 4 in
- No. of Paths: 2
- Scales: Hegman/Mils
- Range: 8 - 0/0 - 5
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost

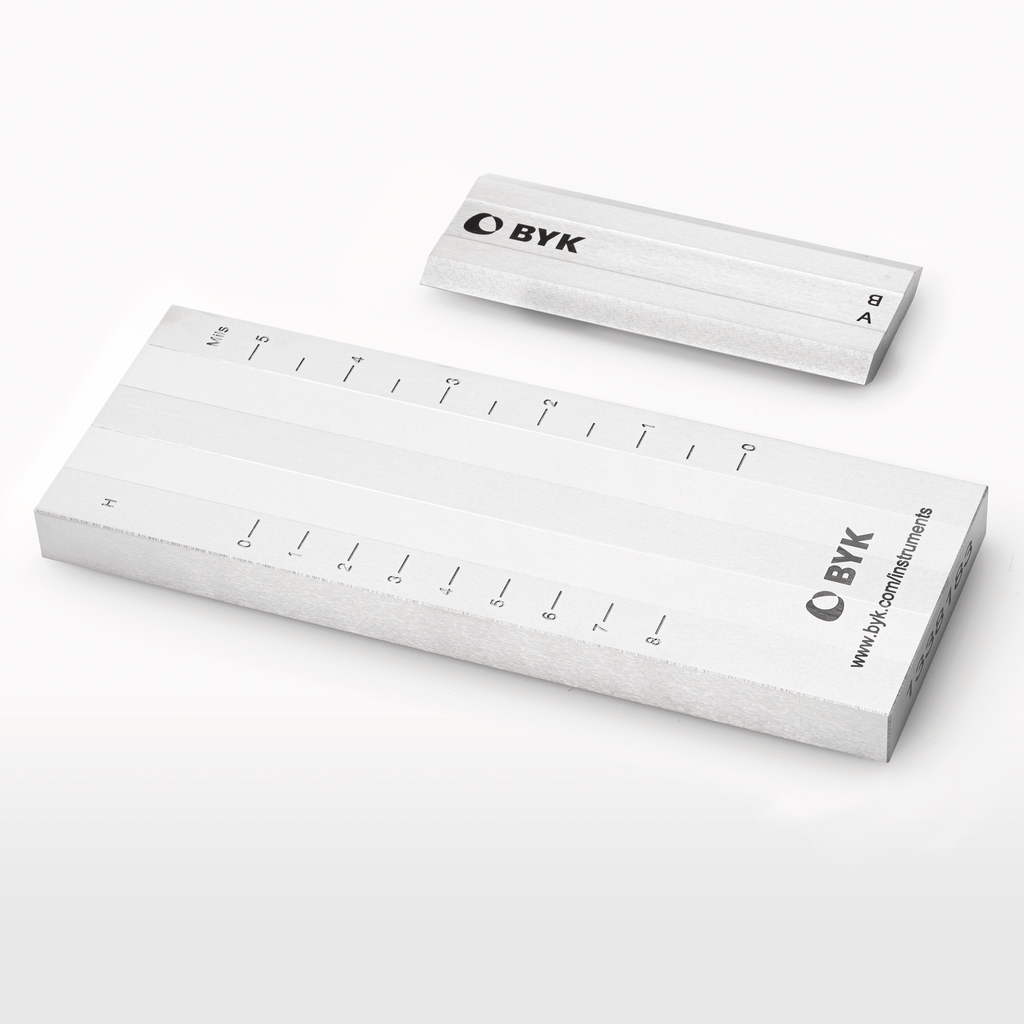

The Fineness of Grind Gage is a flat steel block in the surface of which are two flat-bottomed grooves varying uniformly in depth from a maximum at one end of the block to zero near the other end. Groove depth is graduated on the block according to one or more scales used for measuring particle size.
The Hegman scale or National Standard scale may be abbreviated "NS" on the gage. The scale ranges from 0 to 8 with numbers increasing as the particle size decreases.
- 0 Hegman = 4 mil/100 micron particle size
- 4 Hegman = 2 mil/50 micron particle size
- 8 Hegman = 0 mil/0 micron particle size
- Grind blocks made of high quality, corrosion resistant stainless steel for extended use
- Dual channel designs
- Groove depth is graduated on the block showing mils and Hegman scales
- Grind gages are available in different path size lenghts
- Made from ANSI 440C Stainless Steel
| Technical Specifications | |
|---|---|
| Path Size | |
| Scales | |
| No. of Paths | |
| Range | |
| Range | |
| General | |
| Weight | |
| Weight | |
Scraper (2514)

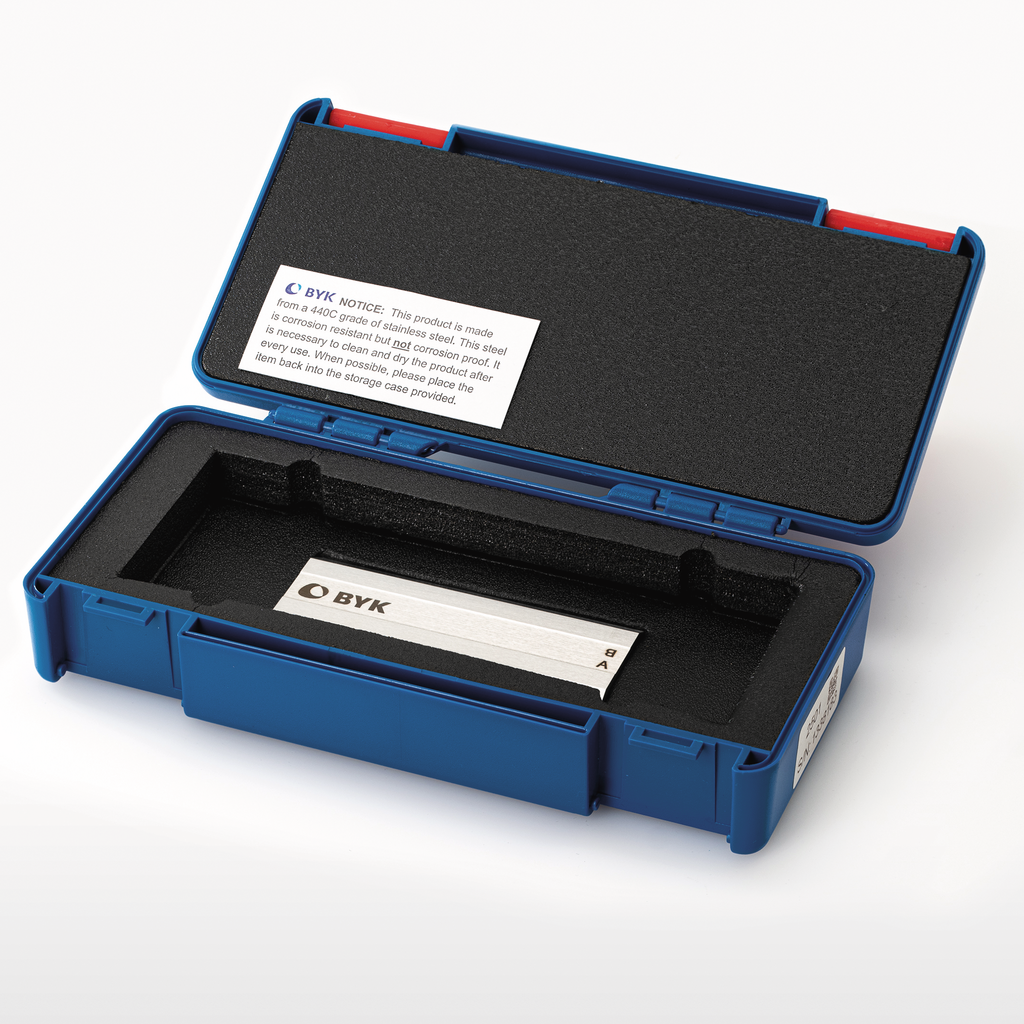

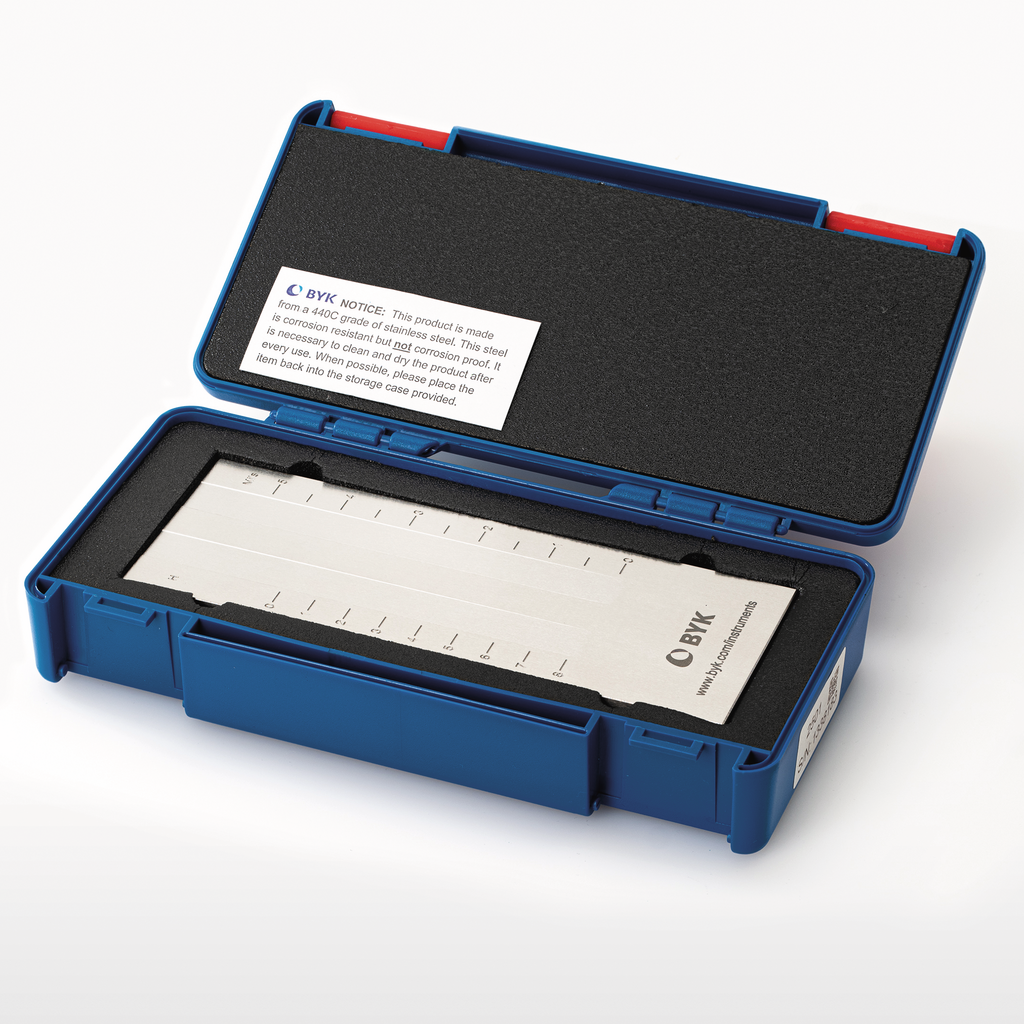

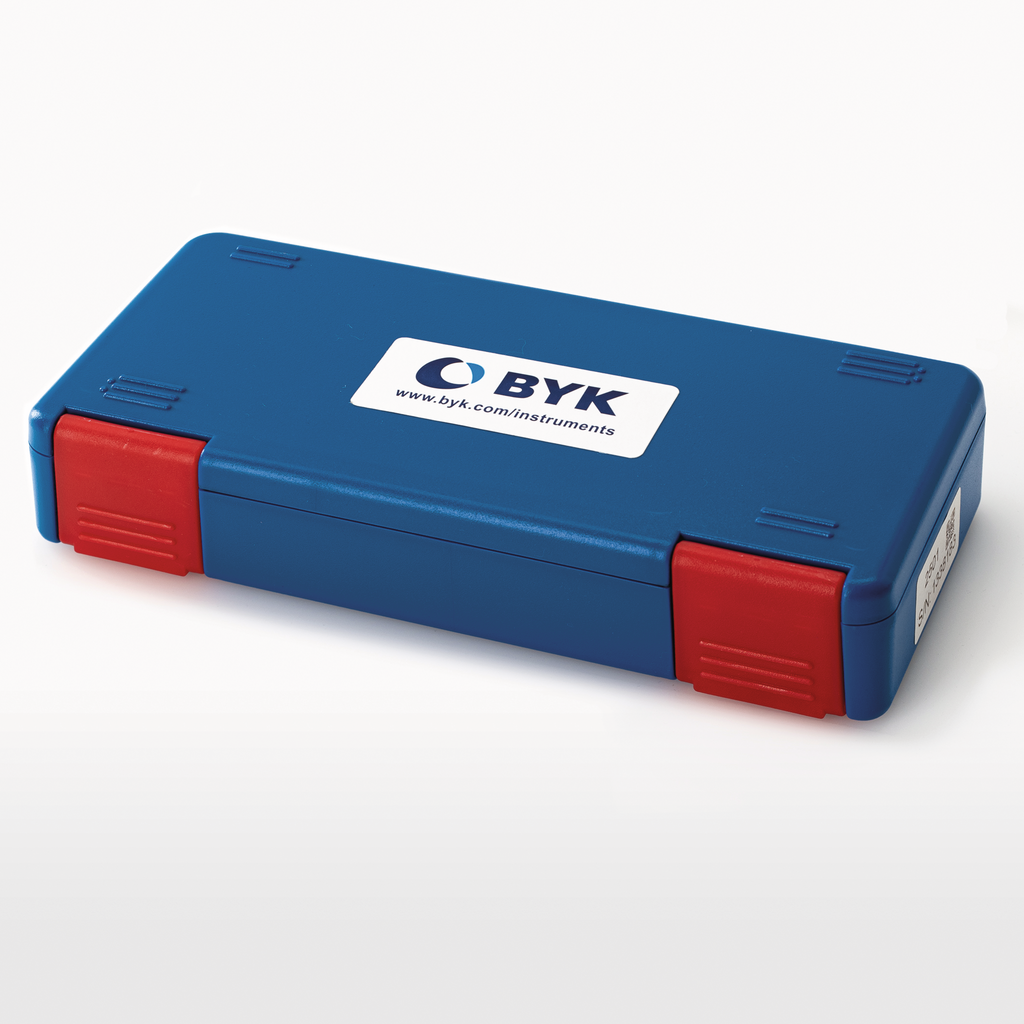

Storage case
Brochure
- Technical_Data-Sheet_Grind-Gages_mils-Hegmann-2-paths_20241112.pdf
Technical_Data-Sheet_Grind-Gages_mils-Hegmann-2-paths_20241112.pdf
