Universal Impact Tester Accessories

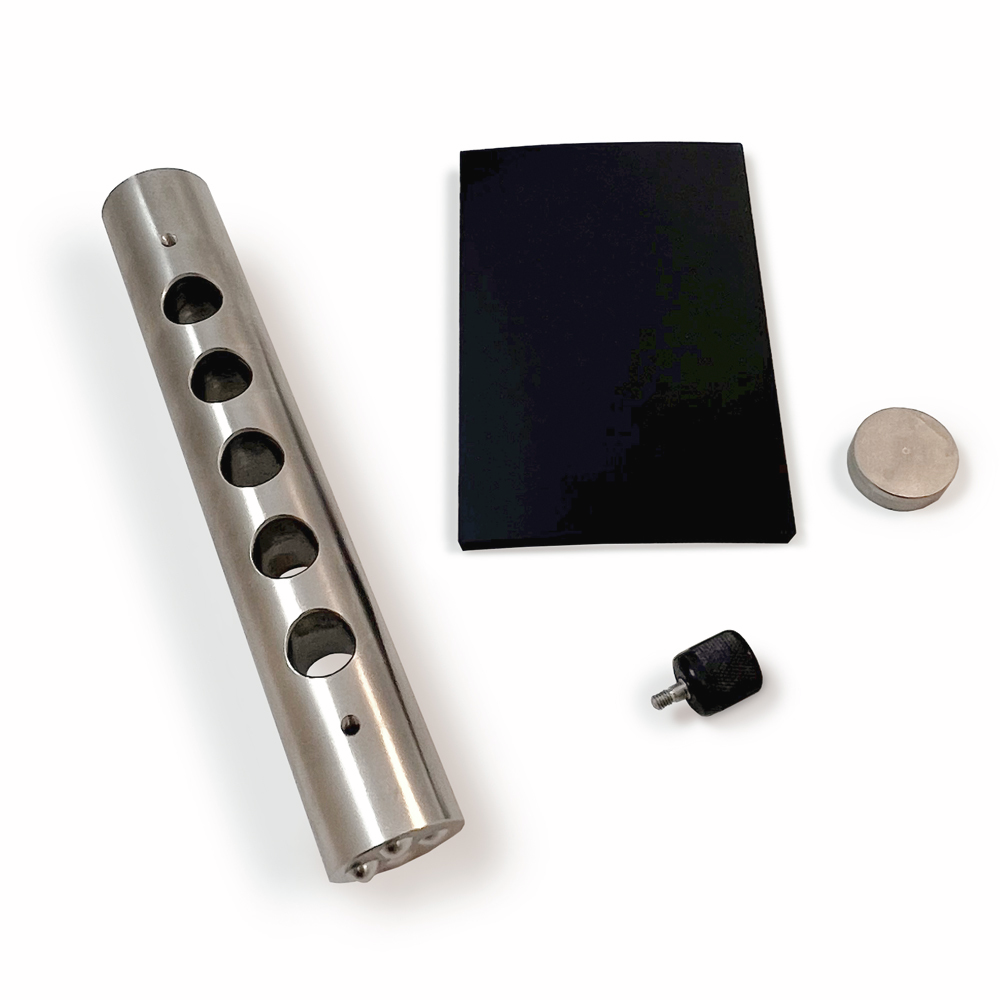

GE Impact Tester Adaptor
- GE Impact Flexibility test method ASTM D6905
- Weights 3.6 pounds and on each end has four formed convex spherical segments which are of different radii and extensions
- Only works with the 5513 Impact Tester
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
| Technical Data Chart | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manuals
- GE-Universal-Impact-Tester-Adapter-15455-Manual.pdf
GE-Universal-Impact-Tester-Adapter-15455-Manual.pdf
Insert die (1213) into die cavity of the 5513 SPI Heavy Duty impact Tester.
Place GE rubber anvil (11894) on top of the sample platform. This rubber anvil has a 60 Shore hardness and should be replaced if worn or damaged.
Place a specimen on the platform. Rest the GE impactor on the specimen. Loosen the guide tube and adjust it up or down to set the lift screw at the zero mark.
Gently tighten the guide tube in this position.
With an uncoated panel in place on the rubber anvil, determine the height of drop for each end of the impactor to show on the panel slight evenly spaced segment marks of the impactor circumference. The heights so determined will always be used.
Place the coated panel to be tested face down against the rubber anvil and drop the impactor from the above determined height.
Remove the panel from the impact tester and inspect the coating.
Record the maximum percent area increase accommodated by the coating without cracking or other failure, from the table below.
ASTM G 14 V-Block Attachment W/Hardware
Article No: 11889
ASTM G14 Adapter
Article No: 11887
Special Die For Im-172 76 mm id (3.0")
Article No: 11885
Special Die For Im-172 31.75mmid (1.25")
Article No: 11884
2 Lb Dropping Weight For Indenter/Punch
Article No: 11880
20mm Ball X 1Kg Weight Combined
Article No: 11879
ASTM G 14 Combined 3Lb Wght 5/8"Dia Ball
Article No: 11888
Impact Tester Adapter for Die Cavity
Article No: 11883
Die Original For 5/8" 0.685"
Article No: 11886
1/2" Ball X 2 Lb Weight Combo
Article No: 11870
ASTM 1/2 Ball Indenter Punch
Article No: 11871
Impact Tester Die ASTM 0.640" (16.26mm)
Article No: 11873
ASTM 5/8" Ball Indenter Punch
Article No: 11876
Elevation Block 1-1/2" For Im-172Rf
Article No: 11906
Extension Weight 2 Lbs Male/Female
Article No: 11881
ASTM 0.125" Rad 20~ (1/4")Indenter Punch
Article No: 11872
5/8" Ball X 2 Lb Weight Combo
Article No: 11875
Blind Plug 40mm Rad X 1" Deep
Article No: 11869
Clamps High Torque (Pair)
Article No: 11890
Screw-On Weight 1 Kg
Article No: 11882
Elevation Block 3" For Im-172Rf
Article No: 11907
Ge Rubber Anvil Replacement ASTM D6905
Article No: 11894
