Scrub abrasion and washability testers

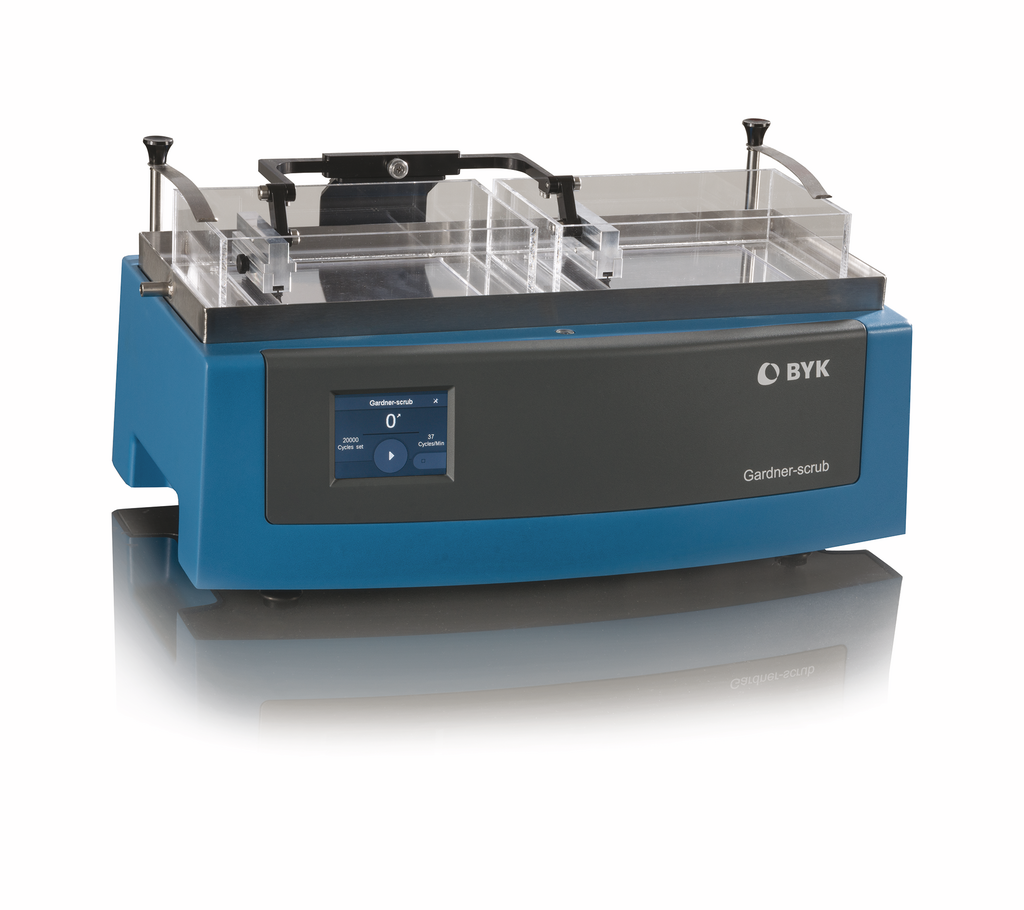

Gardner-scrub, ECE 43
Abrasion Test compliant with DIN ISO 5685 / ECE R43
- Scrub tester modified to fullfill DIN ISO 5685 / ECE R43 Wiper Resistance test method for automotive windshields
- The test method was developed to simulate the typical stresses an automotive windshield is exposed.
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
Coated and uncoated surfaces need to be tested for resistance to abrasion caused by a brush, sponge, scouring pad, sand paper, and other means. Abrasion resistance can be tested by wet abrasion methods using scrub media or cleaning solutions. The most common applications are testing the scrub resistance of interior wall paints, floor tiles, shower stalls, and furniture surfaces. The abrasion tester can examine the washability of a coated surface for the removal of stains. Detergents and cleaning solutions can be tested and evaluated in a reproducible manner.
- Compliant with ASTM, DIN, and ISO methods with appropriate accessories
- Durable chain drive mechanism for long-term reliable operation
- Reciprocating linear motion with a constant speed over the travel distance for repeatable results
- Compact design saves on counter space
- Easy to use touch screen display
- Instrument arm holds up to 3 brush or pad holders to increase output
- User selectable scrub rate from 6 - 60 cycle/minute
- Up to 4 kg (8.8 lbs) can be applied to the instrument arm
- Stroke length 13.0 cm (5.1 inch)
consentmanager.net| Technical Specifications | |
|---|---|
| Scrub Rate | |
| Stroke Length | 13 cm for ECE model (5097)
|
| Stroke Length | 5.1 in for ECE model (5097)
|
| General | |
| Power supply | |
| Weight | |
| Weight | |
| Dimensions: L x W x H | |
| Dimensions: L x W x H | |

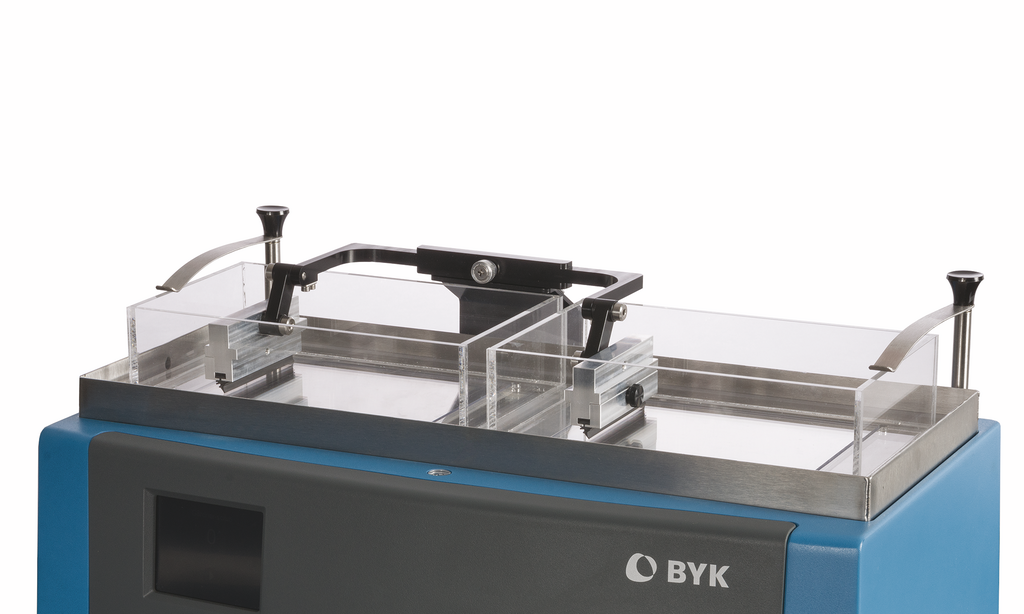

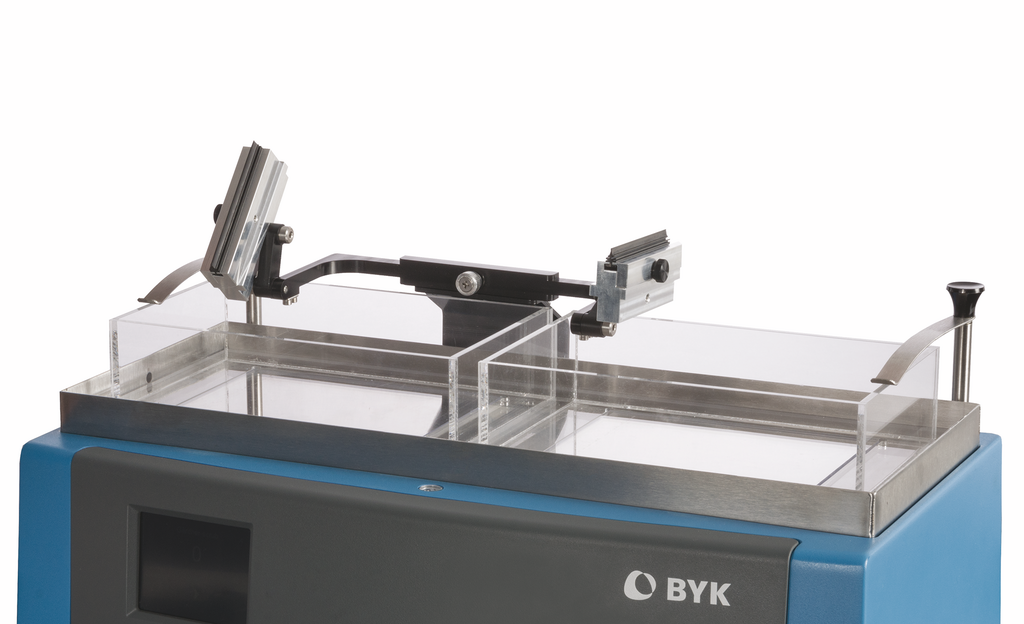

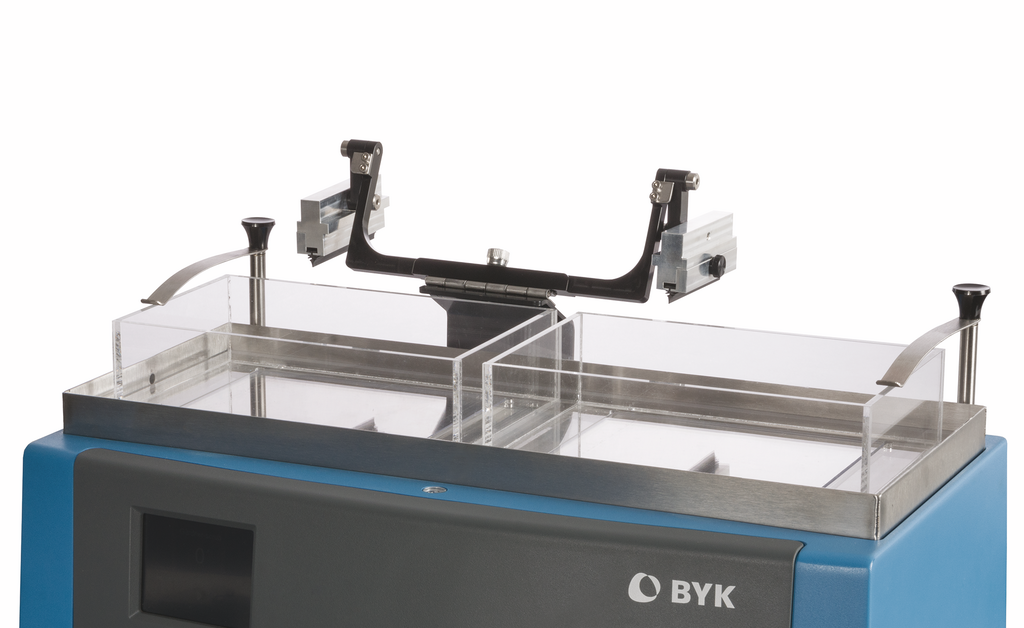

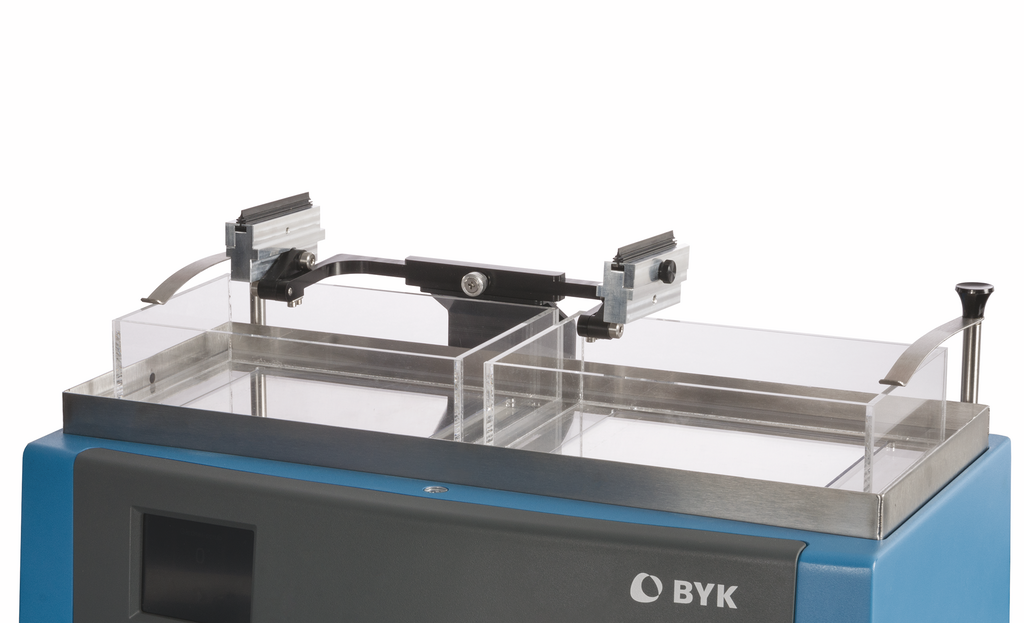

consentmanager.net2-Wiper holders
2-Space plates 2 mm
2-Space plates 4 mm
4-precut wiper blades
200 g scale
Sample pan (5041)
Bubble level
Manual
Manuals
- Operating-Manual-Gardner-scrub-ECE-298025293-E-1808.pdf
Operating-Manual-Gardner-scrub-ECE-298025293-E-1808.pdf
Short Instructions
- Short-Instructions-Gardner-scrub-ECE-298025294-E-1808.pdf
Short-Instructions-Gardner-scrub-ECE-298025294-E-1808.pdf
Safety Instructions
- Safety_Instructions_Gardner-scrub_298022877_2505.pdf
Safety_Instructions_Gardner-scrub_298022877_2505.pdf
Brochure
- Technical_Data_Sheet_Gardner-scrub_E_20240108.pdf
Technical_Data_Sheet_Gardner-scrub_E_20240108.pdf
Accessory Kit, ASTM D2486
Article No: 5064
Accessory Kit, ISO 11998
Article No: 5065
Accessory Kit, ASTM D4213
Abrasion Test Kit with scotch brite pad and sponge.
Article No: 5067
Accessory Kit, ASTM D4828
Abrasion Test Kit with sponge and 1000 g weight
Article No: 5068
Accessory Kit, ASTM D3450
Abrasion Test Kit with sponge and 1500 g weight
Article No: 5069
ISO Standard Dirt, ECE 43
Article No: 5098
Wiper Blades, 4pcs, 700mm length
Replacement wiper blades for ECE-43 Scrub tester 5097
Article No: 5099
Sandpaper Attachment Kit
Abrasion Test Kit for burnish resistance test
Article No: 8117
Gardner-scrub, base
Abrasion Tester, base unit without accessories
Article No: 5060
Gardner-scrub, ISO 11998
Abrasion Test compliant with ISO 11998
Article No: 5063
Gardner-scrub, ASTM D2486
Abrasion Test compliant with ASTM D2486
Article No: 5061
