Gardner-scrub base 02 abrasion tester from BYK-Gardner

Scrub abrasion and washability testers

Art. No.: 5060

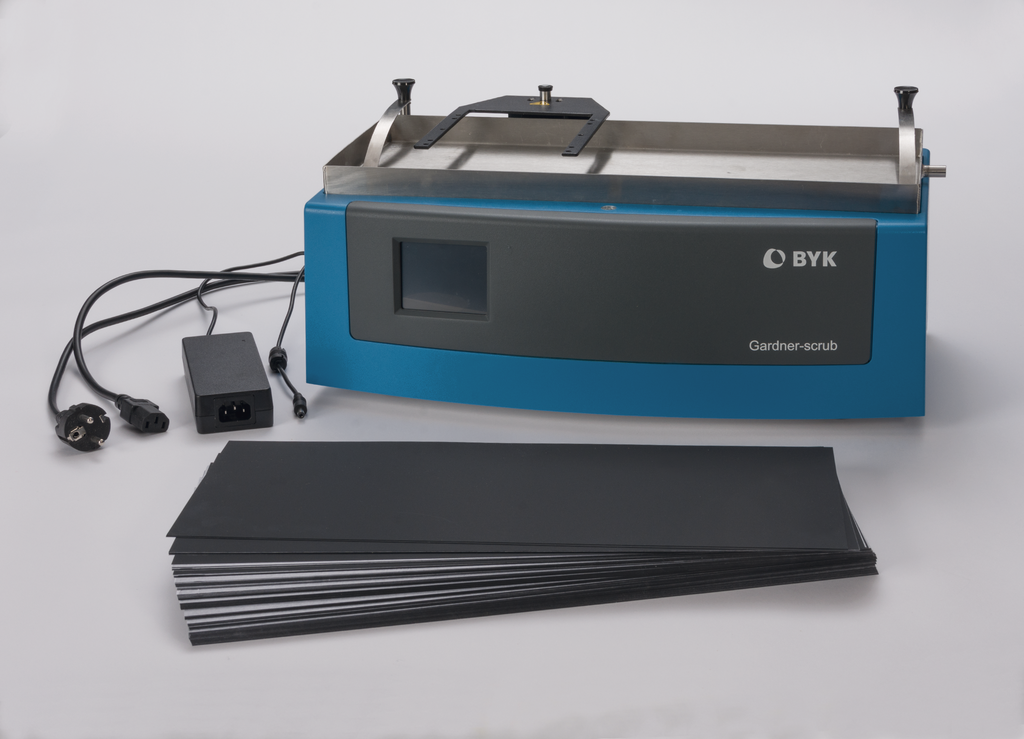

Gardner-scrub, base
Abrasion Tester, base unit without accessories

  • Base unit with sample pan and scrub panels.

Select your Model

$7,870.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Coated and uncoated surfaces need to be tested for resistance to abrasion caused by a brush, sponge, scouring pad, sand paper, and other means. Abrasion resistance can be tested by wet abrasion methods using scrub media or cleaning solutions. The most common applications are testing the scrub resistance of interior wall paints, floor tiles, shower stalls, and furniture surfaces. The abrasion tester can examine the washability of a coated surface for the removal of stains. Detergents and cleaning solutions can be tested and evaluated in a reproducible manner.

  • Compliant with ASTM, DIN, and ISO methods with appropriate accessories
  • Durable chain drive mechanism for long-term reliable operation
  • Reciprocating linear motion with a constant speed over the travel distance for repeatable results
  • Compact design saves on counter space
  • Easy to use touch screen display
  • Instrument arm holds up to 3 brush or pad holders to increase output
  • User selectable scrub rate from 6 - 60 cycle/minute
  • Up to 4 kg (8.8 lbs) can be applied to the instrument arm
  • Stroke length 10 inch (25.4 cm), adjustable upon request to 9 or 11 inch (22.9 or 27.9 cm)
  • Optional weights for custom applications

Technical Specifications
Scrub Rate6 -60 cycles/minute
Stroke Length

25.4 cm, standard setting

Optional stroke length of 22.9 or 27.9 cm to be specified when ordering



Stroke Length

10 in, standard setting

Optional stroke length of 9 in or 11 in to be specified when ordering



General
Power supply100 - 240 V, 50/60 Hz
Weight14.5 kg
Weight32 lb
Dimensions: L x W x H48.3 x 19.1 x 27.9 cm
Dimensions: L x W x H19 x 7.5 x 11 in
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net
Instrument
Sample pan (5041)
Bubble level
byko-chart Black Scrub Panel P121-10N (5015)
Power supply
Manual

Manuals

Short Instructions

Safety Instructions

Brochure

ASTM D 2486 accessories for Gardner-scrub abrasion tester from BYK-Gardner

Accessory Kit, ASTM D2486

Article No: 5064

Price: $1,415.00

ISO 11998 accessory kit for Gardner-scrub abrasion tester from BYK-Gardner

Accessory Kit, ISO 11998

Article No: 5065

Price: $507.00

ASTM 4213 accessory kit for Gardner-scrub abrasion tester from BYK-Gardner

Accessory Kit, ASTM D4213

Abrasion Test Kit with scotch brite pad and sponge.

Article No: 5067

Price: $1,010.00

ASTM 4828 accessory kit for Gardner-scrub abrasion tester from BYK-Gardner

Accessory Kit, ASTM D4828

Abrasion Test Kit with sponge and 1000 g weight

Article No: 5068

Price: $507.00

ASTM 3450 accessory kit for Gardner-scrub abrasion tester from BYK-Gardner

Accessory Kit, ASTM D3450

Abrasion Test Kit with sponge and 1500 g weight

Article No: 5069

Price: $845.00

Sandpaper Attachment Kit

Abrasion Test Kit for burnish resistance test

Article No: 8117

Price: $791.00

Gardner-scrub ISO 01 version abrasion tester from BYK-Gardner

Gardner-scrub, ISO 11998

Abrasion Test compliant with ISO 11998

Article No: 5063

Price: $8,135.00

Wiper for Gardner-scrub abrasion tester from BYK-Gardner

Gardner-scrub, ECE 43

Abrasion Test compliant with DIN ISO 5685 / ECE R43

Article No: 5097

Price: $10,900.00

Gardner-scrub ASTM version 01 abrasion tester from BYK-Gardner

Gardner-scrub, ASTM D2486

Abrasion Test compliant with ASTM D2486

Article No: 5061

Price: $8,735.00
