Visual comparison to liquid standards for Gardner color
Gardner Liquid Standard L 115
Color comparator with backlight & 18 liquid standards
- Steel holding rack with 18 tubes of colored fluids in numbered positions
- Fluorescent lamp illumination
- For use with 115 V
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost

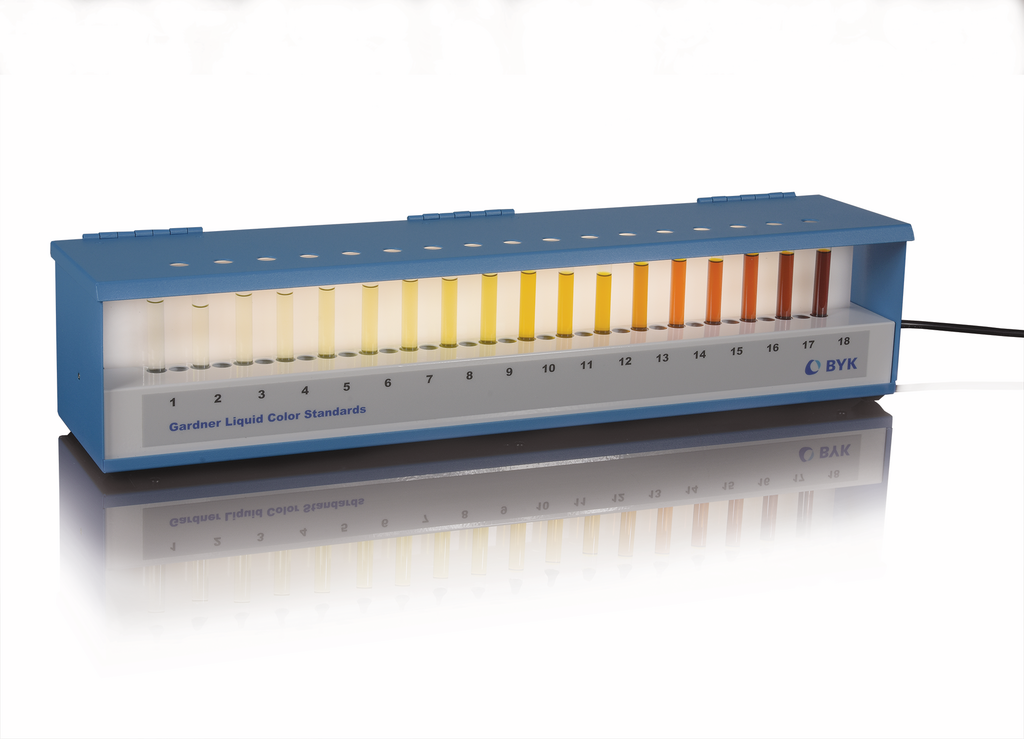

The Gardner Liquid Color Standard Comparator provides the entire Gardner Color Scale, against which a liquid sample can be visually compared.
The sealed tubes are filled with Cobalt Chloride Platinate solutions of varying concentrations, which correspond to known Gardner Scale yellowness value numbers 1 - 18. The solutions are standardized at 25 °C (77 °F), but visual evaluations made between 20 °C (68 °F) and 30 °C (86 °F) are substantially correct.
Two models are available: with or without illumination.
- Comparison of sample tube against 18 liquid color standards
- Rugged design for use in the laboratory and production
- Quick and easy color quality control of liquids
- Attractive price – color evaluation of liquids becomes affordable to everybody
- Shelf-life is 5 years
| Color Measurement | |
|---|---|
| Type | |
| Light Source | |
| Technical Specifications | |
| Illumination - Power supply | |
| Illumination | |
| General | |
| Power supply | |
| Weight | |
| Weight | |
| Dimensions: L x W x H | |
| Dimensions: L x W x H | |
| AOCS | Td 1a |
|---|---|
| ASTM | D1544 |
| ISO | 4630 |

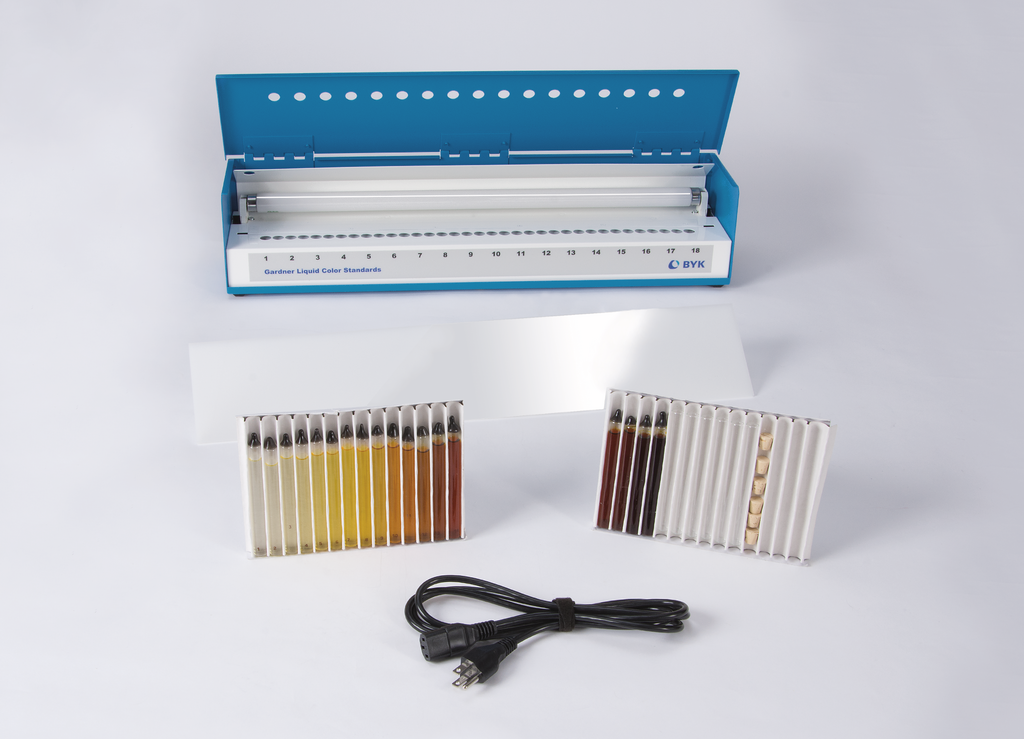

6 empty comparison tubes
Steel holding rack with illumination (6720)
Manual
Manuals
- Operating_Manual_Liquid_Color_Standards_E_2505.pdf
Operating_Manual_Liquid_Color_Standards_E_2505.pdf
Short Instructions
- Short_Instructions_Liquid_Color_Standards_235021339_2512.pdf
Short_Instructions_Liquid_Color_Standards_235021339_2512.pdf
Safety Instructions
- Safety_Instructions_Liquid_Color_235021343_2505.pdf
Safety_Instructions_Liquid_Color_235021343_2505.pdf
Liquid Color Standard No.1
Article No: 6601
Liquid Color Standard No.2
Article No: 6602
Liquid Color Standard No.3
Article No: 6603
Liquid Color Standard No.4
Article No: 6604
Liquid Color Standard No.5
Article No: 6605
Liquid Color Standard No.6
Article No: 6606
Liquid Color Standard No.7
Article No: 6607
Liquid Color Standard No.8
Article No: 6608
Liquid Color Standard No.9
Article No: 6609
Liquid Color Standard No.10
Article No: 6610
Liquid Color Standard No.11
Article No: 6611
Liquid Color Standard No.12
Article No: 6612
Liquid Color Standard No.13
Article No: 6613
Liquid Color Standard No.14
Article No: 6614
Liquid Color Standard No.15
Article No: 6615
Liquid Color Standard No.16
Article No: 6616
Liquid Color Standard No.17
Article No: 6617
Liquid Color Standard No.18
Article No: 6618
Empty Tube Set
Article No: 6756
Gardner Liquid Standard L 230
Color comparator with backlight & 18 liquid standards
Article No: 6727
Holding Rack without Illumination
Empty holder for liquid standards
Article No: 6729
Holding Rack with Illumination
Empty holder for liquid standards
Article No: 6720
Gardner Liquid Standards
Color comparator with 18 liquid standards
Article No: 6724
