Certified Coating Thickness Standards

Art. No.: 11221

Gardco Certified 3 Pc Std Set - N Fe

  • Certified Fe/N Thickness Standard Set
  • 3 piece set
  • Ferrous and non-ferrous measurement

Select your Model

$477.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The Certified Coating Thickness Standards come in your choice of two sets. Both sets have a ferrous or non-ferrous option.
  • Area of Measurement 8mm diameter centered on the white exposed area
  • Calibrated slip gages measured & NATA/NAMAS/NIST certified
  • Calibrated in a NATA registered laboratory using International Standards traceable to NAMAS, NIST Certified traceable
  • These Coating Thickness Standards should be compared with calibration blocks, or slip gages, every twelve (12) months

Technical Data Chart
Data
Area of Measurement:8mm diameter
Uncertainty:±0.25μm up to 6000μm and ±0.40μm from 6000μm to 12500μm at a confidence level of 95%
Substrate Type:Non-Ferrous = Aluminum; Ferrous = Mild Steel
Substrate Surface Finish:Surface ground then polished to 2μm

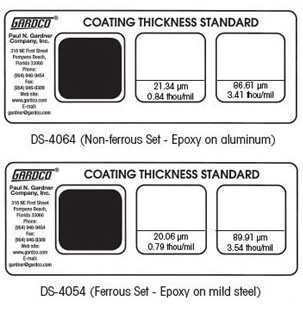

Gardco Certified 3 Pc Std Set - N Fe
  • (1) Zero plate
  • (1) Standard that has a nominal value of .8 mils (20.32 microns)
  • (1) Standard that has a nominal value of 3.5 mils (88.9 microns)

Gardco Certified 5 Pc Std Set - Fe

Article No: 11218

Price: $613.00

Gardco Certified 5 Pc Std Set - N Fe

Article No: 11219

Price: $613.00

Gardco Certified 3 Pc Std Set - Fe

Article No: 11220

Price: $477.00
