Film Coefficient of Friction Testers

Art. No.: 12974

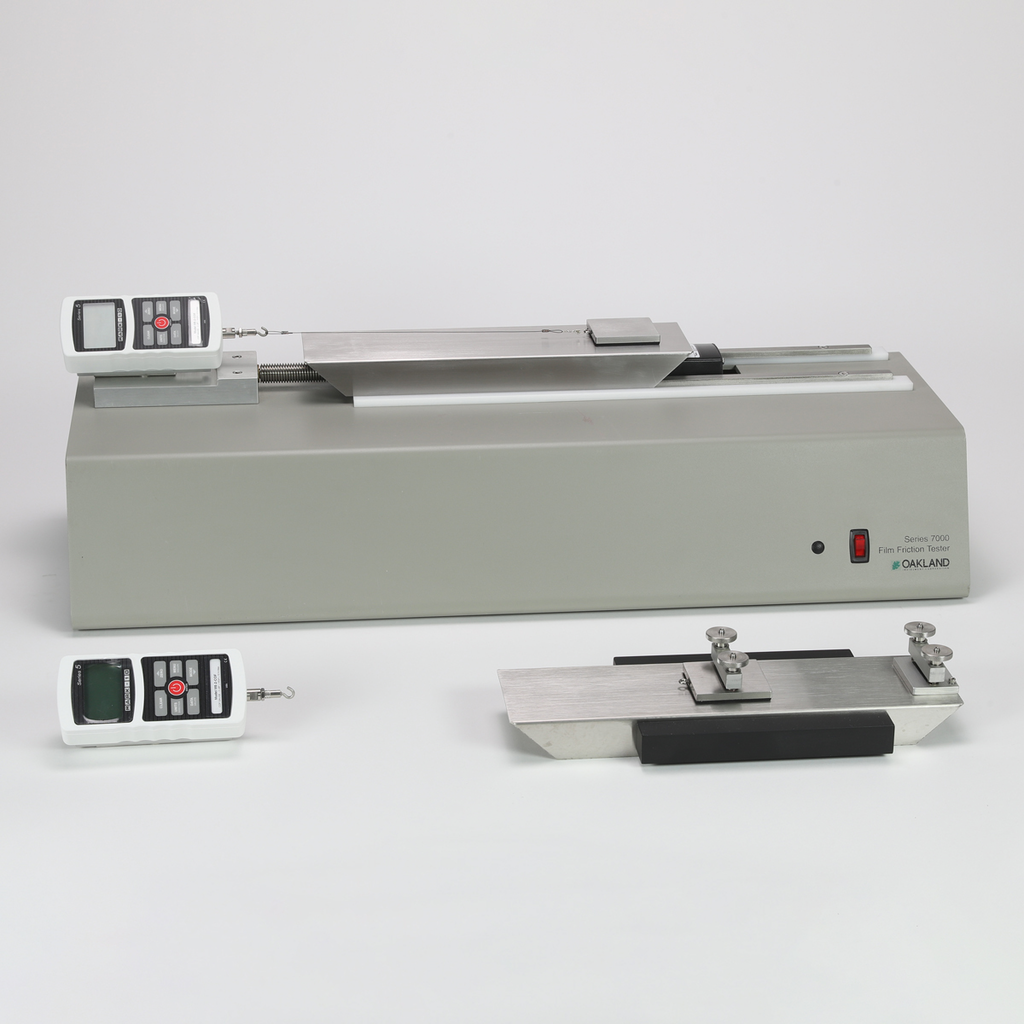

FX-7100-VSC Friction/Peel/Seal/Tensile

Measures Kinetic and Static COF values, and Peel and Seal force measurement
1000 gram Force Gauge displays calculated Static and Kinetic COF values
Second Sled and second weighted-Table with integral mechanical grip for optional dual-purpose testing capability
Add a second force gauge (optional) in 2 kg, 5 kg, or 10 kg for peel and seal force measurement using the second provided Sled and Table
Fixed-sled design with variable-speed moving table with speed range from 1 to 20 ipm
Cutting templates and calibration tools available

Select your Model

Impact and Bend Testers

$9,476.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Film Coefficient of Friction Tester is a stand-alone digital based friction tester with firmware for automatic calculation.
Meets ASTM and TAPPI
There are two models available: FX-7100 F/W and FX-7100 VSC which also measures Peel and Seal force.

Technical Data Chart

Data

Mode of operation:	Off-line testing / lab use - Digital force measurement
Materials:	All sheet materials
Measurement Range:	F/W: 0-1 kg VSC: 0-10 kg
Accuracy:	+/- 0.1% Full Scale
Resolution:	0.2 gram or 0.001 COF Values (unitless)
Safe Overload:	Display shows overrange at 110% of full scale. Safe overload at 150% of full scale
Power Requirements:	115 VAC, 60 Hz, CE Step-down 24 VDC power supply provided for 230 VAC, 50 Hz applications avilable. Or consult factory for special requirements
Environmental Requirements:	40 - 100 Deg. F, max. 96% RH non-condensing
Sample Rate:	10,000 Hz
Serial Data Communications:	RS-232 and USB, Configurable up to 115, 200 baud
Analog Output:	+/- 1 VCD
Dimensions (HxWxD):	9 in (23 cm) x 32 in (81 cm) x 12 in (31 cm)
Weight:	38 lb (17 kg)

ASTM	D1894

Article No: 12970

Price: $2,449.00

Article No: 12971

Price: $350.00

Article No: 12972

Price: $299.00

Article No: 12973

Price: $1,995.00

Article No: 15287

Price: $7,345.00
