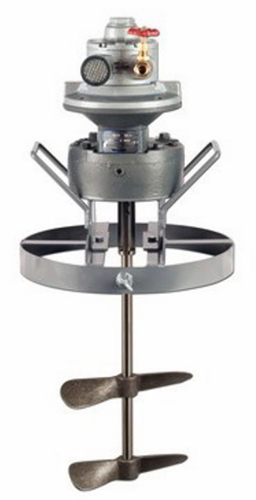

FGM-5A Pail Mixer

Pail Mixers

Art. No.: 14901

FGM-5A Double Handle Pail Mixer

  • Indco FGM-5A Pail Mixer
  • Double Handle

Select your Model

$1,560.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • INDCO's Quic Pail Mixers are portable, lightweight options for mixing 5-gallon pails with an open top or through a 1-1/2" bung utilizing the folding impeller design.
  • The ring mount sits on the pail and provides a low center of gravity for steady, worry free mixing.
  • The quick-change coupler and shaft design features a shaft pin that locks in place during rotation.
  • The adjustable center channel design allows the mixer to slide for positioning and locks in place.
  • Ideal for blending colorants into paint, remixing settled material or adding powders.
  • All wetted parts are 300 series stainless steel for chemical resistance.
  • They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
  • Air motors deliver variable speed for maximum process control, flexibility or multiple applications.
  • Features a Gast air motor known for rugged construction and reliability.

Technical Data Chart
Data
Part No.1245214901
Horsepower:3/4
MotorRPM:300-3000
Motor Type:Air
Motor Exterior:Painted
Motor Frame:Foot56C Fac
Rotation Top:ClockwiseReversible
Air Requirements:100 PSI @ 30 CFM
Air Inlet Size:1/4"
Drive:DirectGear Reduced
Gearbox Ratio:-5:1
Gearbox:300-30000-600
Impellers
Quantity:12
Diameter:4-1/2"9"
Style:MSF-Q2-Blade
Bore:-5/8"
Rotation:Left Hand
Material Construction:Stainless SteelAluminum
Blade Construction:Laser CutCast
Set Screw:Pin2
Tank Liner
Diameter:4-1/2"-
Mount
Adjustable:Mixer Position is Adjustable-
Construction:Steel
Features:5 Gallon Ring MountRing Mount for pails up to 12-1/4" Wide
Shaft
Exposed Dimensions:5/8" x 12"5/8" x 15"
Construction:316 Stainless Steel
