DVplus Viscometers

Name: DVPlus LV Viscometer
Brand: Gardco
SKU: 15330
Price: 5235 USD
Availability: schema.orgInStock

Art. No.: 15330

DVPlus LV Viscometer

Select your Model

Viscometers

$5,235.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

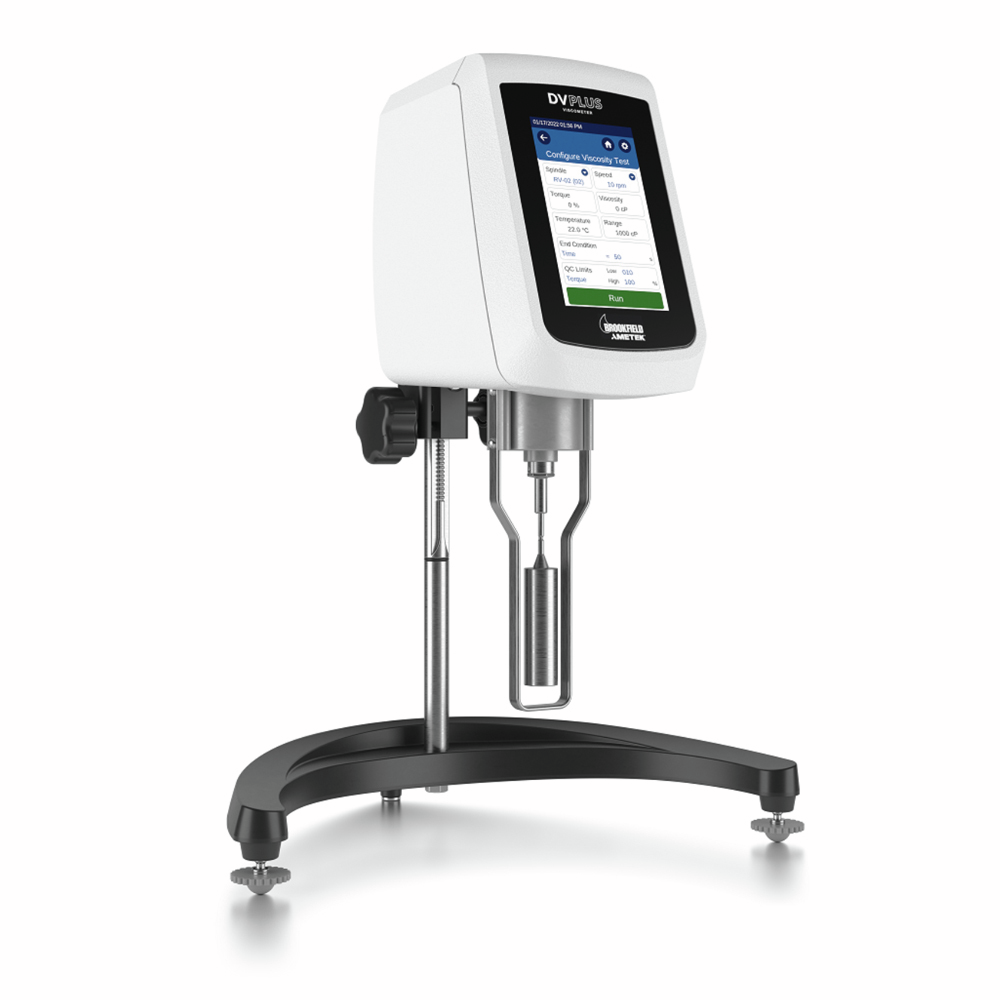

DVPlus is AMETEK Brookfield’s latest addition to its high-performance viscometer series.
A budget-friendly option for the determination of viscosity with an optional DVPlus Connect app and magnetic spindle coupling system.
5-Inch full-color touchscreen display with enhanced controls, user interface, and real-time trend indicators. Supports multiple languages.
Displays info including viscosity (cP, mPa•s, P, Pa•s), temperature (ºC, ºF or K), Torque: %, mNm, Dyne•cm, speed/spindle. Displayed with test data.
USB / Bluetooth interface for use with DVPlus connect app
740 speeds for better range capability
Optional RTD Temperature Probe DVP-94Y
Direct access to time measurement function (time to torque, time to temperature, time to stop)
Accuracy: ±1.0%
Repeatability: ±0.2%
Automatic Range Calculation: Full-Scale Range (FSR) at 100% Maximum viscosity measured with Spindle / Speed combination
Dynamic user interface for more direct access to features
Magnetic spindle coupling system (optional)
The DVPlus Connect App is a time-saving app that allows easy monitoring, testing, and creating permanent test records.
- Monitor tests in real time
- View and save test data
- USB and Bluetooth connection options
- Available for Windows (iOS and Android coming soon) Print via PC

Technical Data Chart

Data

Model	Viscosity Range cP(mPa•s)	RPM	Number of Increments
LV Viscometer:	1* min / 6M max	0.1-200	0.1-200
RV Viscometer:	100 min / 40M max
HA Viscometer:	200 min / 80M max
*Minimum ranges can be extended to as low as 1 cP with use of accessories M = 1 million cP = Centipoise mPa•s = MilliPascal•seconds
