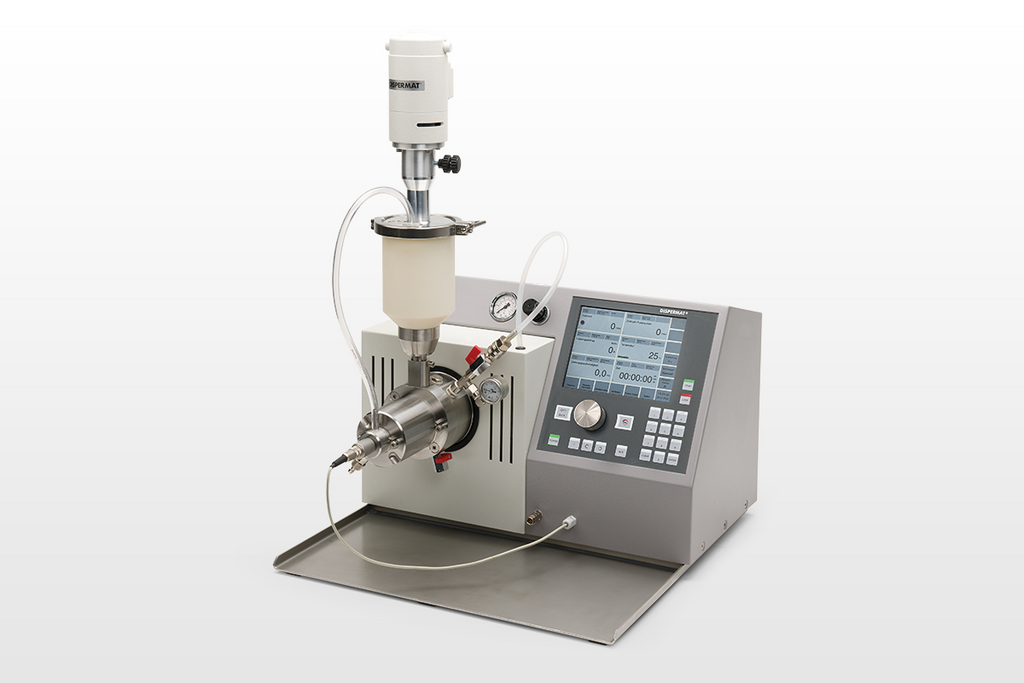

Dispermat SL-Nano

Art. No.: 1379

Dispermat SL12-Nano

  • Millbase: 100-750 ml
  • Milling Chamber: 125 ml
  • Speeds/rpm: 0-6,000

Select your Model

The SL-Nano Bead Mill System allows the use of 0.1 mm diameter bead size.

  • High power input for rapid results
  • C-technology display to monitor and record the important dispersion parameters
  • Wide selection of milling chambers from 50 ml to 2 liters

Technical Specifications
Power1.5 hp
Power1.1 kW
Speed0 - 6,000 rpm
Container Capacity1 l
Millbase Quantity0.1 - 0.75 l
Milling Chamber Volume125 ml
General
Power supply230 V, 50 Hz
Weight70 kg
Weight154 lb
Horizontal bead mill
Pumping & Mixing system
Polyamide supply vessel 1 l
Sieve filter 0.04 mm
Temperature probe
Manual

Dispermat SL200-Nano

Article No: 1384

Dispermat SL25-Nano

Article No: 1380

Dispermat SL5-Nano

Article No: 1376

Dispermat SL50-Nano

Article No: 1381

Dispermat SL100-Nano

Article No: 1382
