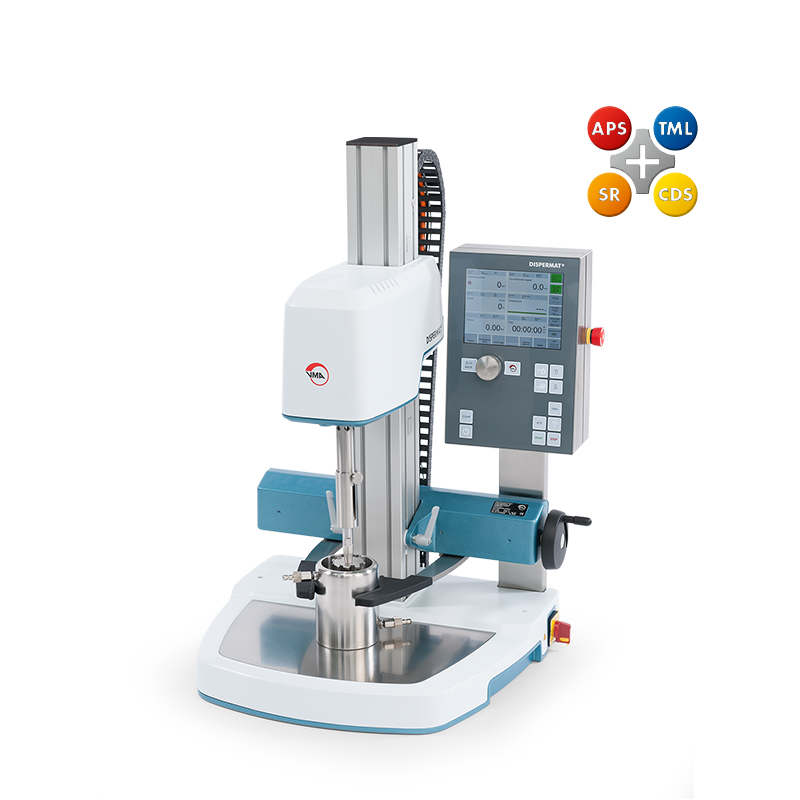

Dispermat CV

Art. No.: 1280

Dispermat CV4 plus S, 230V

  • Product Volume: 0.05 -10.6 quarts (50 - 10,000 ml)
  • Speed/rpm: 0 - 20,000

Select your Model

For laboratory size quantities the Dispermat CV disperser line is an ideal selection.

  • Constant speed control for repeatable dispersion results
  • Durable design for long-term operation
  • Low maintenance design
  • Counter-weight stand for easy up/down movement
  • Digital display for easy viewing of the motor shaft speed, % torque, product temperature, and timer

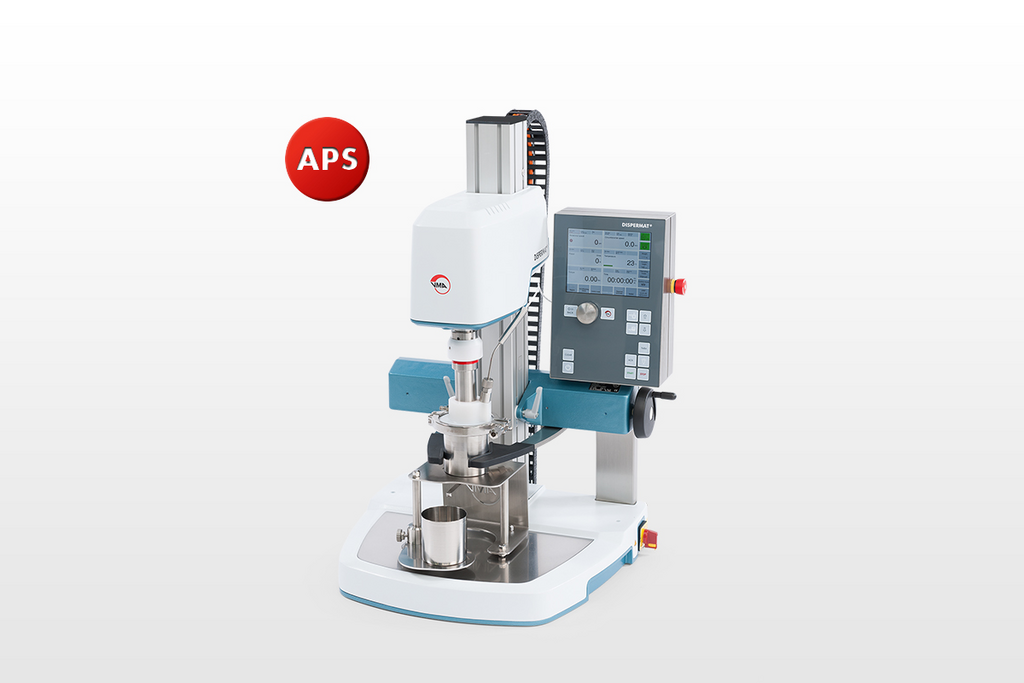

  • CV3evo has a motorized stand for precise impeller height positioning

Technical Specifications
Power2 hp
Power1.5 kW
Speed0 - 20,000 rpm
Product Volume50 - 10000 ml
Product Volume0.05 - 10.6 qt
Torque1.5 Nm
Clamping SystemSafety Device
Stand BaseH2B
General
Power supply230V
Weight80 kg
Weight176 lb
Dissolver
Safety device
Control box
Manual

Dispermat CV4 plus S, 110V

Article No: 1279
